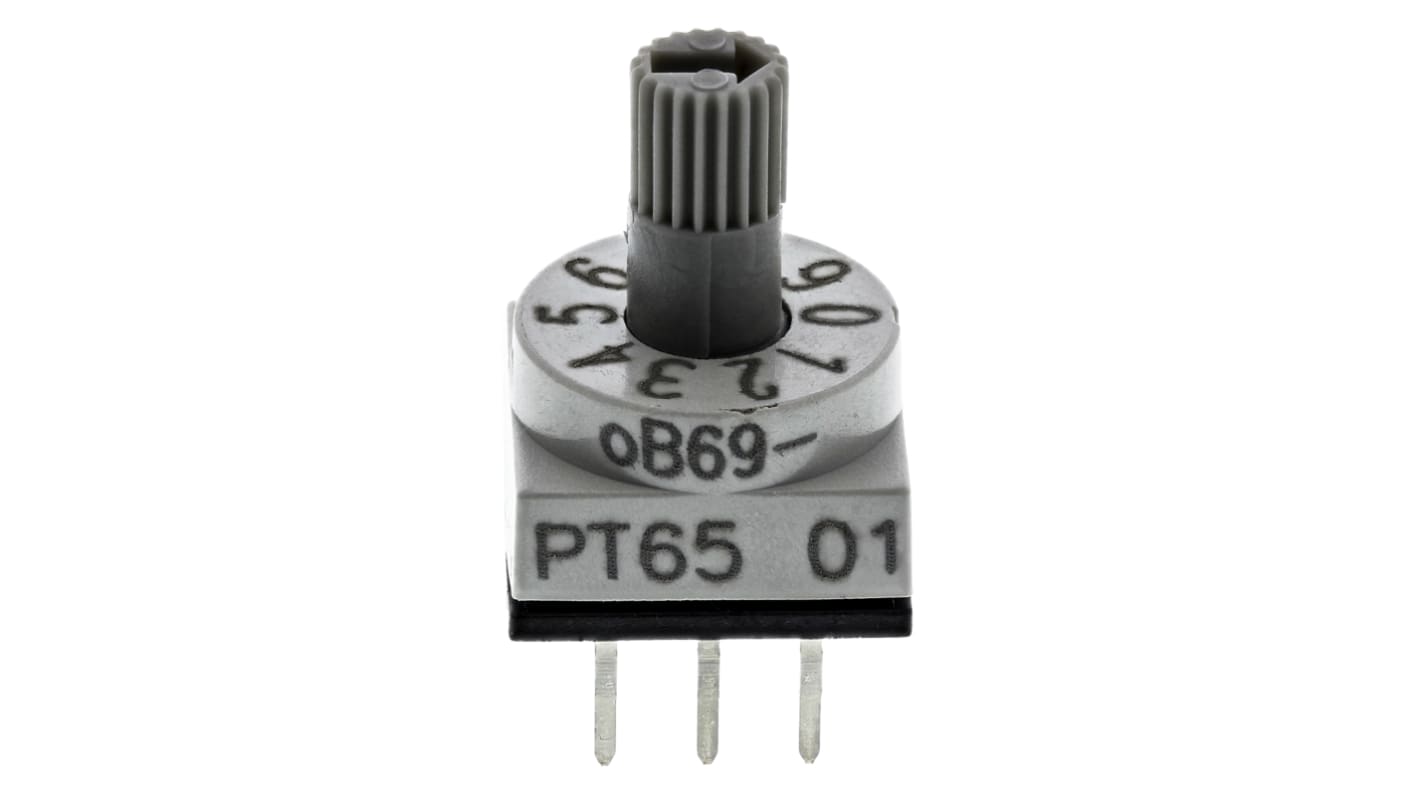

Hartmann 10 Way Through Hole DIP Switch, Spindle Actuator
- RS-artikelnummer:
- 379-5155
- Tillv. art.nr:
- PT65301
- Tillverkare / varumärke:
- Hartmann
44 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
81,39 kr
(exkl. moms)
101,74 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 81,39 kr |
| 10 - 49 | 73,19 kr |
| 50 - 99 | 61,15 kr |
| 100 - 249 | 57,00 kr |
| 250 + | 52,07 kr |
- RS-artikelnummer:
- 379-5155
- Tillv. art.nr:
- PT65301
- Tillverkare / varumärke:
- Hartmann
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Slotted Head Rotary Encoder
Flux sealed & process washable
Contact rating: 150mA @ 24Vdc
Contact resistance: <80mΩ
Life: >104 operations
Positive detent
Soldering temperature: 340°C max. for 2s max. (40 watt iron max.) or 260°C for 10s max.
Gold plated contacts
Contact rating: 150mA @ 24Vdc
Contact resistance: <80mΩ
Life: >104 operations
Positive detent
Soldering temperature: 340°C max. for 2s max. (40 watt iron max.) or 260°C for 10s max.
Gold plated contacts
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
Specifikationer
Attribute | Value |
|---|---|
| Number of Positions | 10 |
| Mounting Type | Through Hole |
| Contact Material | Gold over Nickel Plated Phosphor Bronze |
| Package Style | DIP |
| Actuator Type | Spindle |
| Contact Current Rating | 150 mA@ 24 V dc |
| Mechanical Life | 10000Operations |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +70°C |
| Voltage Rating | 24V dc |
