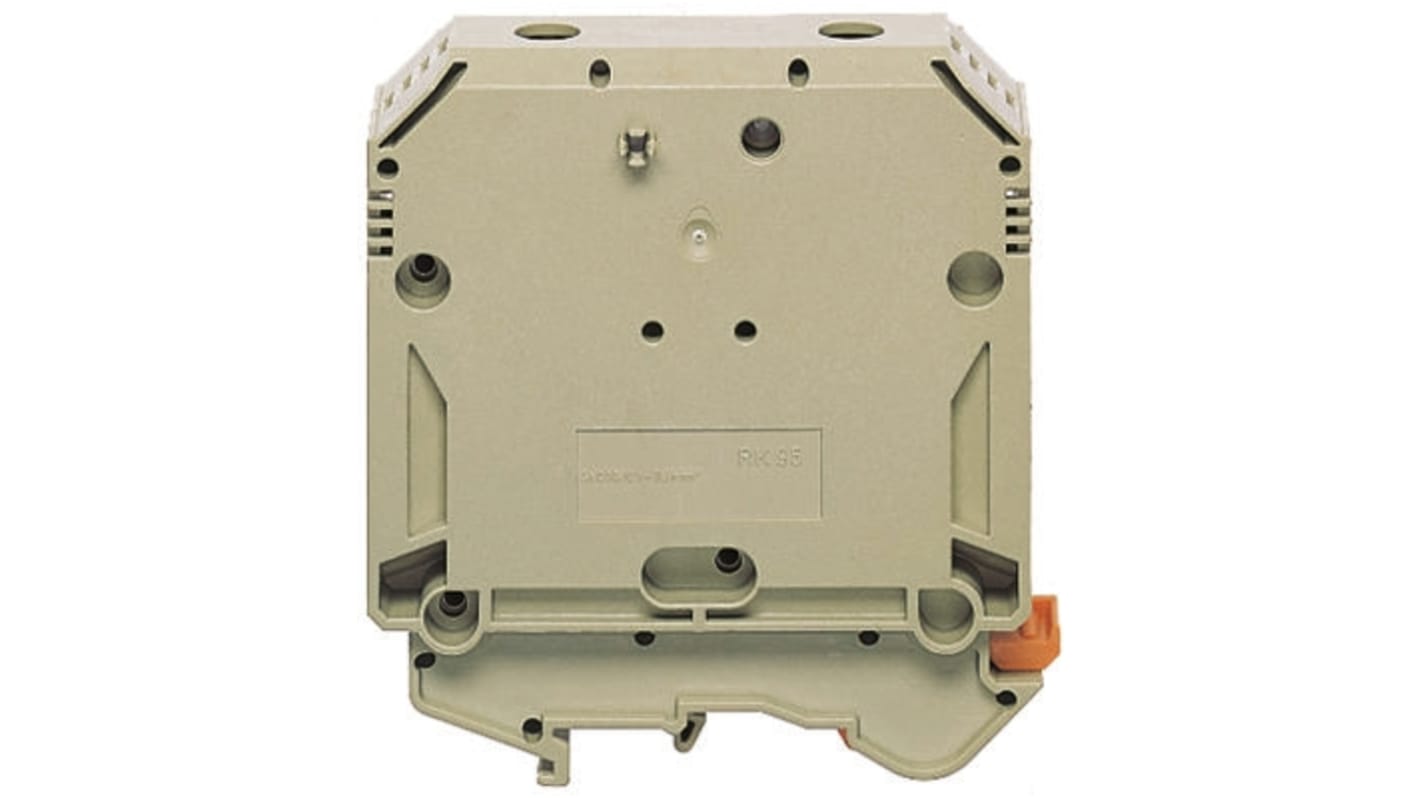

RS PRO Brown DIN Rail Terminal Block, 35 → 95mm²
- RS-artikelnummer:
- 501-718
- Tillverkare / varumärke:
- RS PRO
12 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
271,75 kr
(exkl. moms)
339,69 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 271,75 kr |
- RS-artikelnummer:
- 501-718
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Higher Current Terminals
Enclosed, so no end plates required
Clip onto Symmetrical Rail
Tightens with Allen Key
Separate, parasitic 10mm² cable capacity terminals clip in for power take-off or measurement, allowing rewiring without disturbing the main conductor
Optional triangular inserts improve contact area for rectangular conductors
Removable interlocking lugs assist rigidity when stacking together on rail
Clip onto Symmetrical Rail
Tightens with Allen Key
Separate, parasitic 10mm² cable capacity terminals clip in for power take-off or measurement, allowing rewiring without disturbing the main conductor
Optional triangular inserts improve contact area for rectangular conductors
Removable interlocking lugs assist rigidity when stacking together on rail
Approvals
UL, CSA, NEMKO, GOST
Specifikationer
Attribute | Value |
|---|---|
| Colour | Brown |
| American Wire Gauge | 2 → 0000AWG |
| Series | RK |
| Cable CSA | 35 → 95mm² |
| Voltage Rating | 1 kV |
| Current Rating | 232A |
