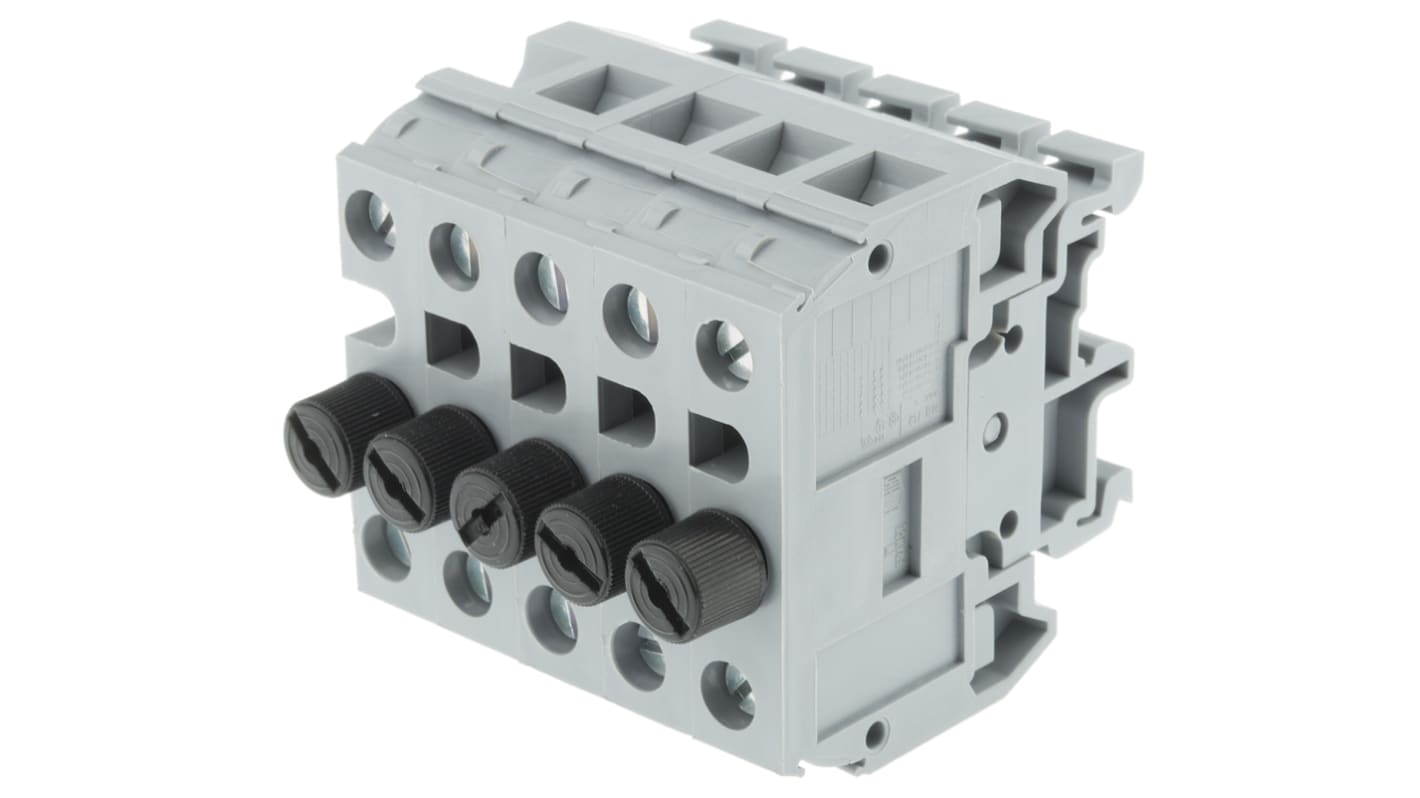

Entrelec, MB, 600 V Fused DIN Rail Terminal, Screw Termination

  • RS-artikelnummer 424-822
  • Tillv. art.nr 1SNA111033R0300
  • Tillverkare / varumärke Entrelec
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): FR
Produktdetaljer

Fused Terminals

Two versions of fused terminals
The latched, pull up fuse terminals are available for 1 1/4 in. x 1/4 in., BS1362 and 5x20mm/5x25mm fuses
The screw cap fused terminals are suited to 5x20mm fuses and is available with or without a neon (110-220V) indicator

Note

The fuseholder limits the rating to 250V/16A irrespective of markings on the terminals

Approvals

UL listed, CSA certified.

Approvals

1, 2

5000 Universal Series

This universal range of terminals mounts on both asymmetric rail 'G' profile and Top hat profile. Moulded in tough flame-resistant polyamide 6.6, with a working temperature of -55°C to +130°C. The captive terminal screws have hardened heads to prevent burring. Cable entry and clamp design allows easy installation, higher voltage and cable carrying capacity. Cable markers are available RS 460-569

Note

Stock numbers 472-9569 and 472-9575 are compatible with deep top hat rails only

Specifikationer
Attribute Value
Series MB
Wire Size 16 AWG
Cable CSA 10 (stranded) mm², 16 (solid) mm²
Fused Yes
Colour Grey
Current Rating 10A
Termination Method Screw
Voltage Rating 600 V
Pitch 12mm
Minimum Operating Temperature -55°C
Maximum Operating Temperature +110°C
200 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 5)
41,712 kr
(exkl. moms)
52,14 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 +
41,712 kr
208,56 kr
