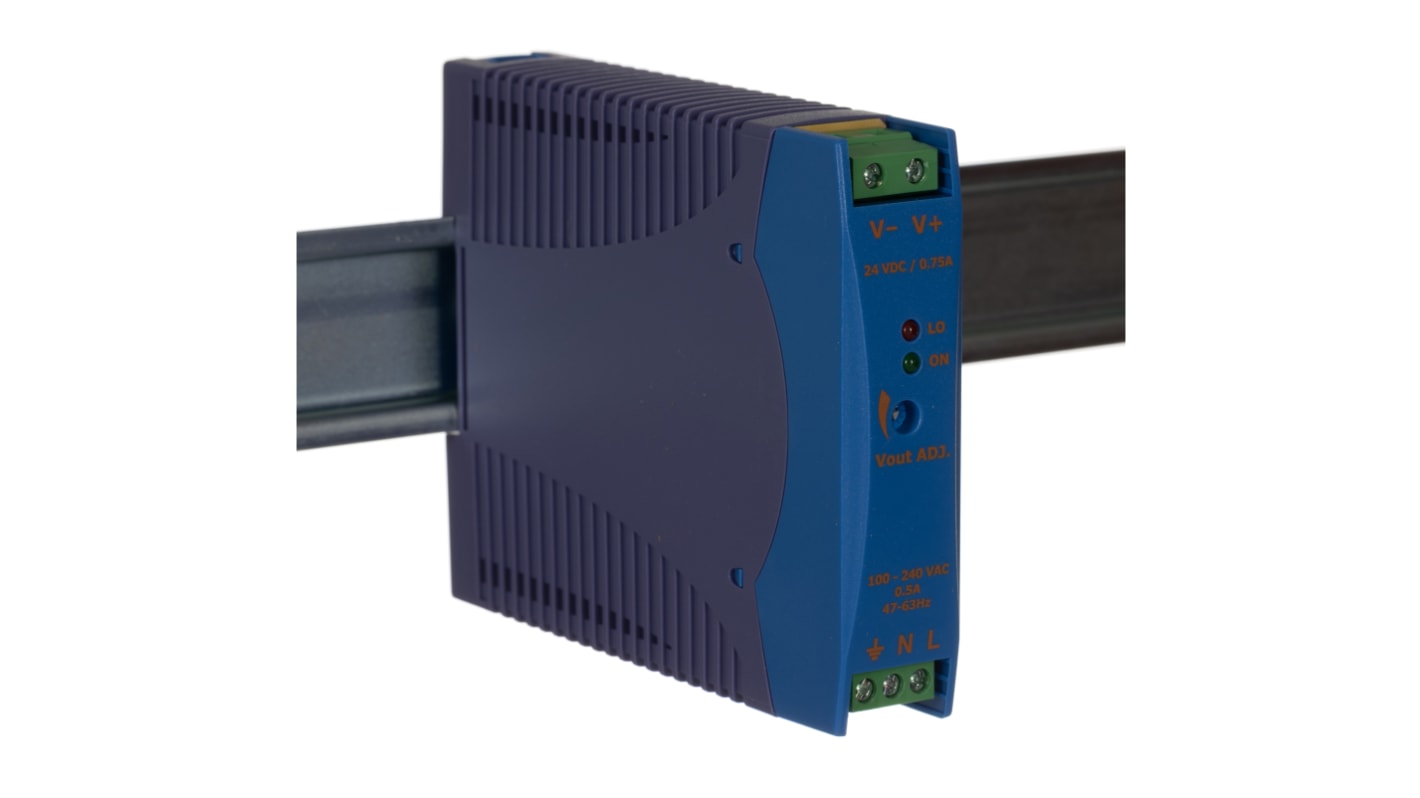

Chinfa DRA18 DIN Rail Power Supply, 90 → 264V ac ac Input, 24V dc dc Output, 750mA Output, 18W
- RS-artikelnummer:
- 896-2230
- Tillv. art.nr:
- DRA18-24A
- Tillverkare / varumärke:
- Chinfa
147 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
459,07 kr
(exkl. moms)
573,84 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 459,07 kr |
| 10 - 14 | 440,34 kr |
| 15 + | 421,41 kr |
- RS-artikelnummer:
- 896-2230
- Tillv. art.nr:
- DRA18-24A
- Tillverkare / varumärke:
- Chinfa
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer
DRAN & DRA PSU's Series
DIN rail power supplies for industrial control automation with universal input, short circuit protection and internal input filter
Universal mains input & 90 - 375Vdc, 90 - 264Vac
Spring terminal type or screw terminal type (A suffix) available
Front Vout adjustment
Regulated outputs
-40°C to +71°C operation
3 year warranty
Spring terminal type or screw terminal type (A suffix) available
Front Vout adjustment
Regulated outputs
-40°C to +71°C operation
3 year warranty
Approvals
UL / cUL / TUV / CE
Switch Mode - Chinfa Electronics
Specifikationer
Attribute | Value |
|---|---|
| Output Voltage | 24V dc |
| Output Current | 750mA |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 90 → 264V ac |
| Power Rating | 18W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 90mm |
| Width | 22.5mm |
| Depth | 114mm |
| Series | DRA18 |
| MTBF | 764000h |
| Special Features | Internal Input Filter |
| Ripple And Noise | 50mV |
| Minimum Temperature | -20°C |
| Mounting Type | DIN Rail Mount |
| Maximum Temperature | +71°C |
| Standards Met | EN 55032, EN 62368-1, UL 508, UL 62368-1 |
