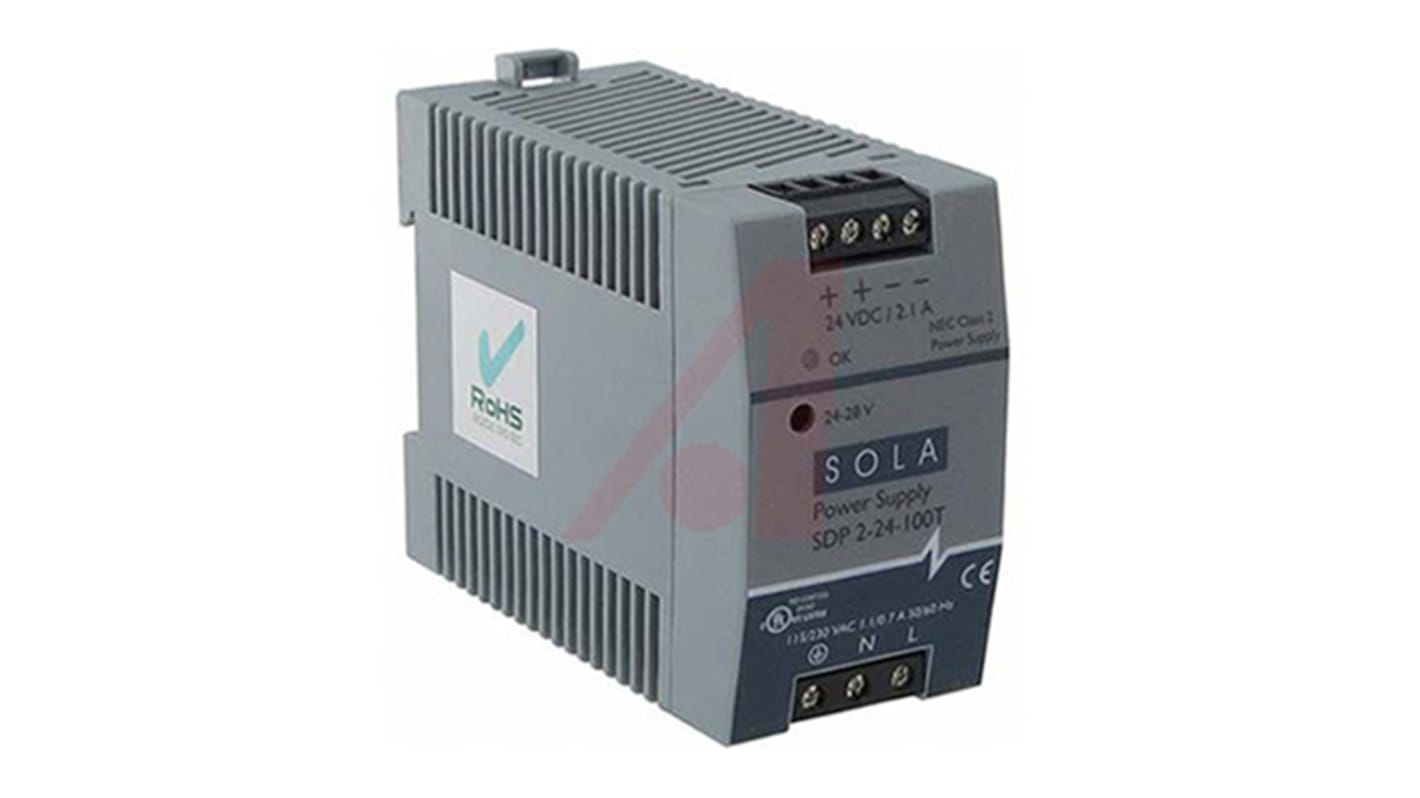

SolaHD SDP Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 90 → 375V dc ac, dc Input, 24V dc dc
- RS-artikelnummer:
- 890-8943
- Tillv. art.nr:
- SDP2-24-100T
- Tillverkare / varumärke:
- SolaHD
Tillfälligt slut i lager – restorder för leverans 2024-04-24
Lagt till varukorgen
Pris (ex. moms) Varje
2 117,33 kr
(exkl. moms)
2 646,66 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 2 117,33 kr |
- RS-artikelnummer:
- 890-8943
- Tillv. art.nr:
- SDP2-24-100T
- Tillverkare / varumärke:
- SolaHD
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
SolaHD Compact Power Supplies - SDP Series
SolaHD DIN Rail power supplies. The compact, efficient units are designed specifically for industrial environments. Many industry extras are standard for the SDP series. PowerBoost™ overload circuitry can start up industrial loads (motors, relays, solenoids & DC-DC converters), that can cause ordinary power supplies to fold back or shutdown. Each unit contains a DC indicator and front panel adjustment potentiometer. The power supplies come in a range of output voltages from 5 V dc to 48 V dc and power ratings of up to 100 Watts.
Typical applications include: Process Control, Building Automation, Industrial Control, Machine Control and Instrumentation.
Typical applications include: Process Control, Building Automation, Industrial Control, Machine Control and Instrumentation.
PowerBoost™ industrial overload design
Continuous short circuit protection
Compact 15 W footprint
No tools required for mounting
Low output noise
Screw terminal connections
Efficiency: 80%
Operating temperature range: -10⁰C → 60⁰C
Continuous short circuit protection
Compact 15 W footprint
No tools required for mounting
Low output noise
Screw terminal connections
Efficiency: 80%
Operating temperature range: -10⁰C → 60⁰C
Specifikationer
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 24V dc |
| Output Current | 2.1A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264 V ac / 90 → 375V dc |
| Power Rating | 50W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 75mm |
| Width | 75mm |
| Depth | 91mm |
| Series | SDP |
| MTBF | >500000h |
| Maximum Temperature | +60°C |
| Special Features | Continuous Short Circuit Protection, Low Output Noise |
| Standards Met | CE, cRUus, cULus, RoHS Compliant |
| Minimum Temperature | -10°C |
| Mounting Type | DIN Rail Mount |
| Ripple And Noise | <50mV Pk-Pk |
