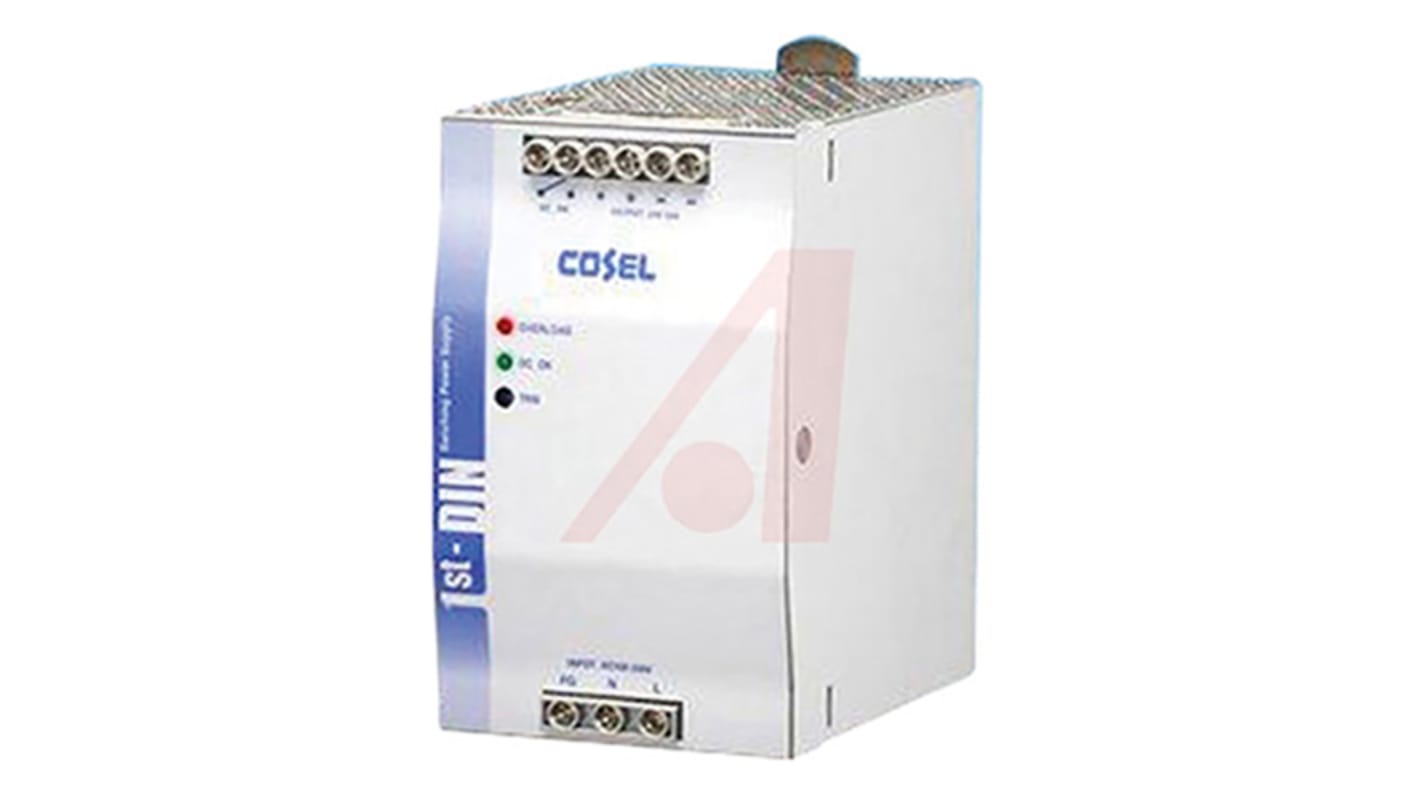

Cosel KHEA480F Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 20A Output, 480W
- RS-artikelnummer:
- 843-1843
- Tillv. art.nr:
- KHEA480F-24
- Tillverkare / varumärke:
- Cosel
4 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
2 738,83 kr
(exkl. moms)
3 423,54 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 2 738,83 kr |
- RS-artikelnummer:
- 843-1843
- Tillv. art.nr:
- KHEA480F-24
- Tillverkare / varumärke:
- Cosel
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
KH Series, Din Rail 30 to 480W
The KH series has been specially designed as a Din rail power supply unit utilising convection cooling. They are suitable for use with standard 35mm Din rail and have Euro style and barrier block style I/O terminals.
Features:
KHEA/KHNA30F - 90F
Efficiency increased with synchronous rectification technology and resonant circuit
Over current protection, over voltage protection
Wide operating ambient temperature range: -20 to +70 °C
KHEA/KHNA120F - 480F
Efficiency increased with synchronous rectification technology and resonant circuit
Over current protection, over voltage protection, over heat protection
Wide operating ambient temperature range: -25 to +70 °C
Built in remote ON/OFF
Built in alarm signal for confirming output voltage
KHEA/KHNA30F - 90F
Efficiency increased with synchronous rectification technology and resonant circuit
Over current protection, over voltage protection
Wide operating ambient temperature range: -20 to +70 °C
KHEA/KHNA120F - 480F
Efficiency increased with synchronous rectification technology and resonant circuit
Over current protection, over voltage protection, over heat protection
Wide operating ambient temperature range: -25 to +70 °C
Built in remote ON/OFF
Built in alarm signal for confirming output voltage
Standards
UL60950-1, C-UL, EN60950-1, EN50178, UL508, ANSI ⁄ ISA12.12.01, NEC Class2 (30F, 60F, 24V output only, optional for 90F), GL (Germanischer Lloyd) (120F, 240F and 480F), Complies with DEN-AN
Specifikationer
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 24V dc |
| Output Current | 20A |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264V ac |
| Power Rating | 480W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 124mm |
| Width | 70mm |
| Depth | 124mm |
| Series | KHEA480F |
| Maximum Temperature | +70°C |
| Minimum Temperature | -25°C |
| Mounting Type | DIN Rail Mount |
| Efficiency | 92.0 → 94.0% |
| Ripple And Noise | 600mV Pk-Pk |
| Output Voltage Adjustment Range | 22.5 to 26.4V |
| Load Regulation | 150mV |
