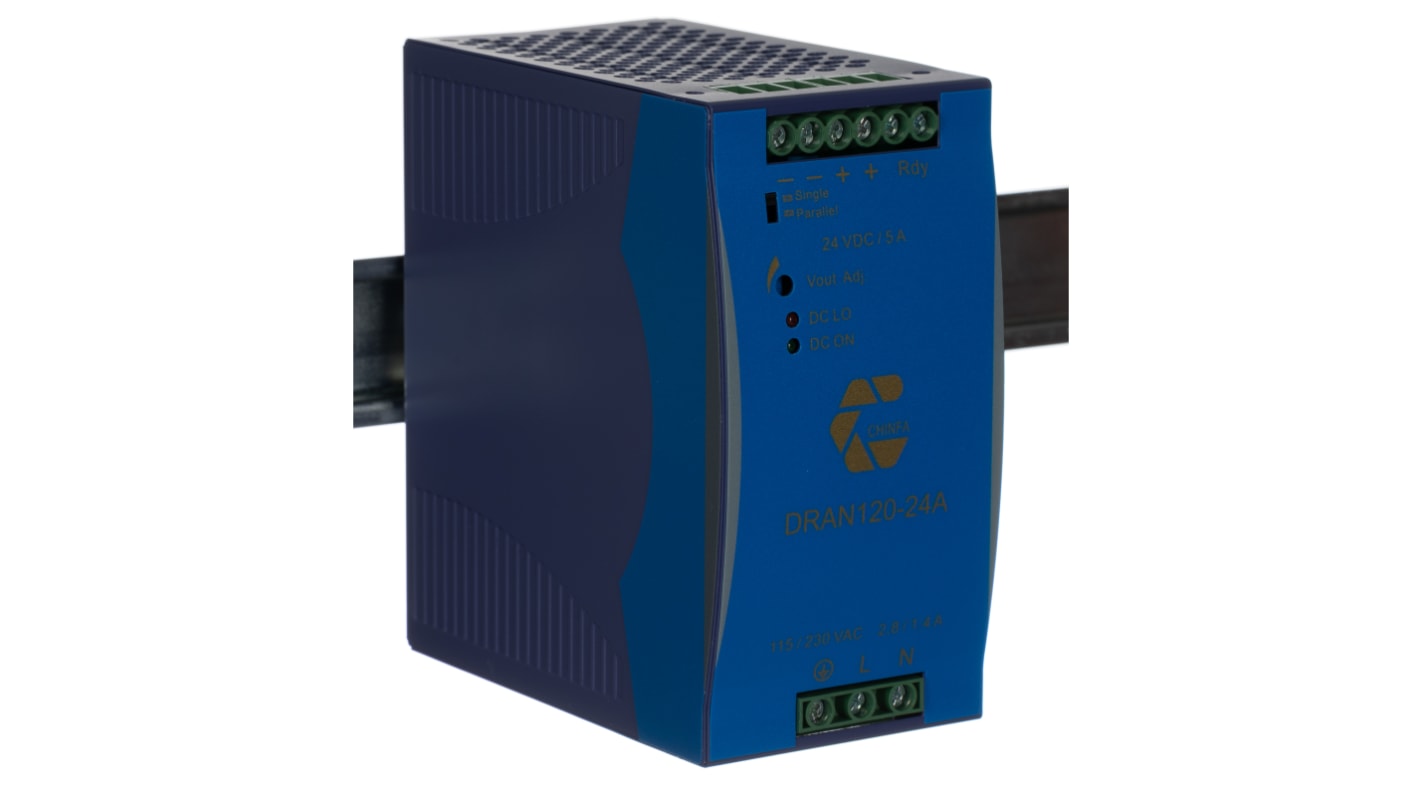

Chinfa DRAN120 Switch Mode DIN Rail Power Supply, 90 → 264V ac ac Input, 24V dc dc Output, 5A Output, 120W
- RS-artikelnummer:
- 789-4001
- Tillv. art.nr:
- DRAN120-24A
- Tillverkare / varumärke:
- Chinfa
450 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
1 158,91 kr
(exkl. moms)
1 448,64 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 1 158,91 kr |
| 5 + | 1 111,39 kr |
- RS-artikelnummer:
- 789-4001
- Tillv. art.nr:
- DRAN120-24A
- Tillverkare / varumärke:
- Chinfa
Lagstiftning och ursprungsland
Produktdetaljer
CHINFA DIN Rail Power Supply
The CHINFA DIN Rail DRAN series switch mode power supply has a universal input voltage ranging between 115VAC and 230VAC/210VDC and 375VDC. The switch mode technology provides a compact design, high efficiency and low residual ripple. The rated output current is 5A at 24VDCoutput voltage. This power supply is especially designed for industrial control systems, process automatic and industrial applications requiring stabilised DC voltage.
Features and Benefits
High efficiency of 86%
Internal input filter
MTBF is 450000 hours
Operation temperature ranging between -35°C and 71°C
Power rating is up to 120W
Regulated outputs
Ripple factor and noise is 50mV
Screw terminal connection
Short circuit protection
Internal input filter
MTBF is 450000 hours
Operation temperature ranging between -35°C and 71°C
Power rating is up to 120W
Regulated outputs
Ripple factor and noise is 50mV
Screw terminal connection
Short circuit protection
Applications
Electromagnetic drives
Factory automation
Industrial controls
Instrumentation
Factory automation
Industrial controls
Instrumentation
Certifications
CE certified
cUL
TUV
UL approved
cUL
TUV
UL approved
Specifikationer
Attribute | Value |
|---|---|
| Type | Switch Mode |
| Output Voltage | 24V dc |
| Output Current | 5A |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 90 → 264V ac |
| Power Rating | 120W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 125mm |
| Width | 123.6mm |
| Depth | 124mm |
| Series | DRAN120 |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | -35°C |
| Ripple And Noise | 50mV |
| MTBF | 450000h |
| Load Regulation | ±1% |
| Standards Met | EN 55032, EN 61558-1, EN 61558-2-16, EN 62368-1, UL 508, UL 62368-1 |
| Maximum Temperature | +71°C |
