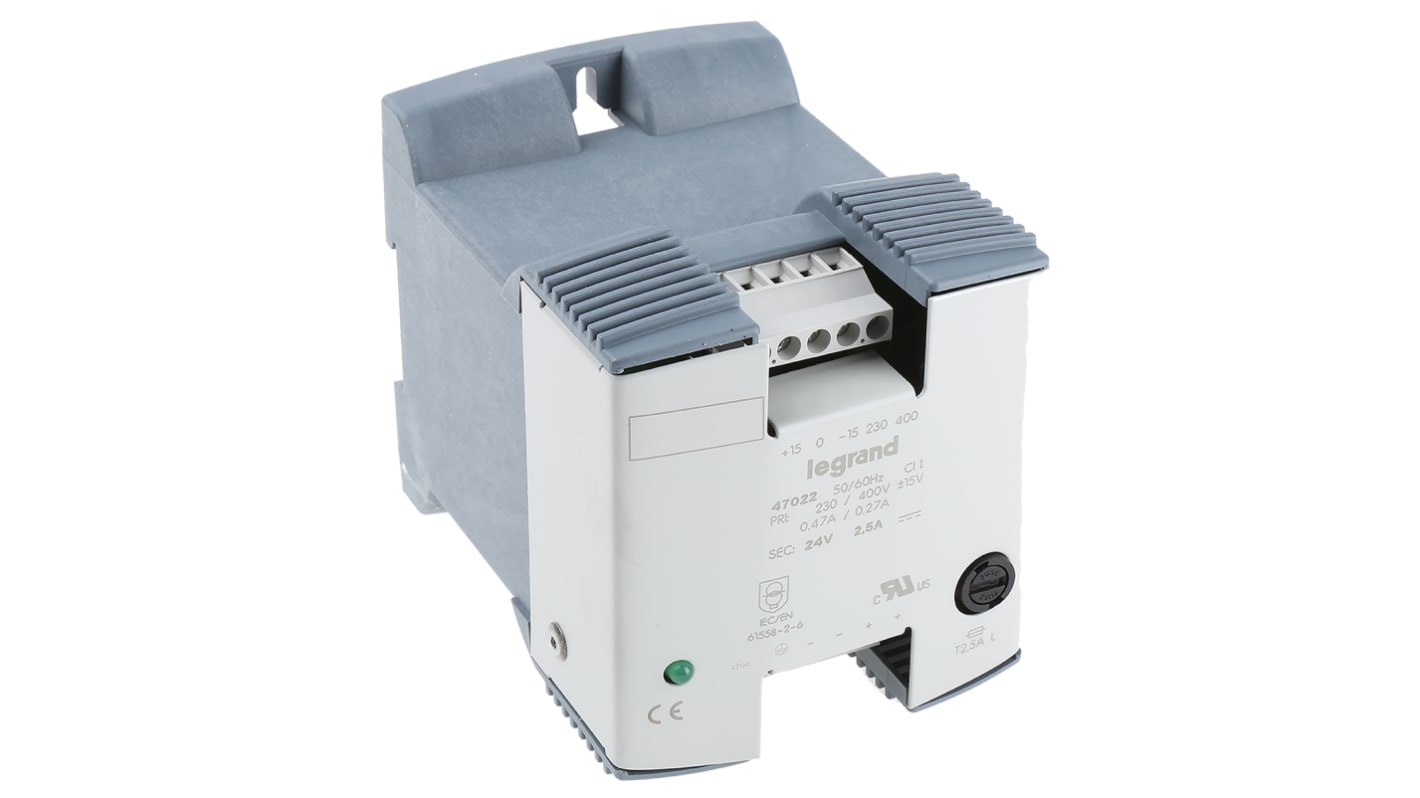

Legrand DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 2.5A Output Current

  • RS-artikelnummer 482-3065
  • Tillv. art.nr 0 470 22
  • Tillverkare / varumärke Legrand
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): FR
Produktdetaljer

12 to 360W Linear, Filtered 0470 Series

230-400Vac input voltage
Input voltage adjustment taps:±15V
Safety isolating transformer with electrostatic screen
4510V input/output isolation
Integral output protection fuse provided
Twin output terminals for ease of connection
Green output LED
Easy to read - laser engraved label with international conformity symbols
Supplied with a connection link for quick connection between terminals and earth up to 15A
High quality manufacturing and testing conforming to IEC/EN 61 558-2-6, UL60950 (up to10A), CAN/CSA -C22.22 No.60 950.00.
Compatible with EN 61 131-2, EN 60 204 and EN 60 439-1 apparatus

Specifikationer
Attribute Value
Output Voltage 24 V dc
Output Current 2.5 A
Power Rating 60W
Electrical Phase 1
Type Linear
Width 93mm
Depth 105mm
Minimum Temperature -10°C
Maximum Temperature +60°C
Ripple And Noise ±3%
9 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 628,22 kr
(exkl. moms)
2 035,28 kr
(inkl. moms)
Enheter
Per unit
1 - 4
1 628,22 kr
5 - 9
1 592,31 kr
10 - 24
1 508,50 kr
25 - 49
1 424,69 kr
50 +
1 340,89 kr
