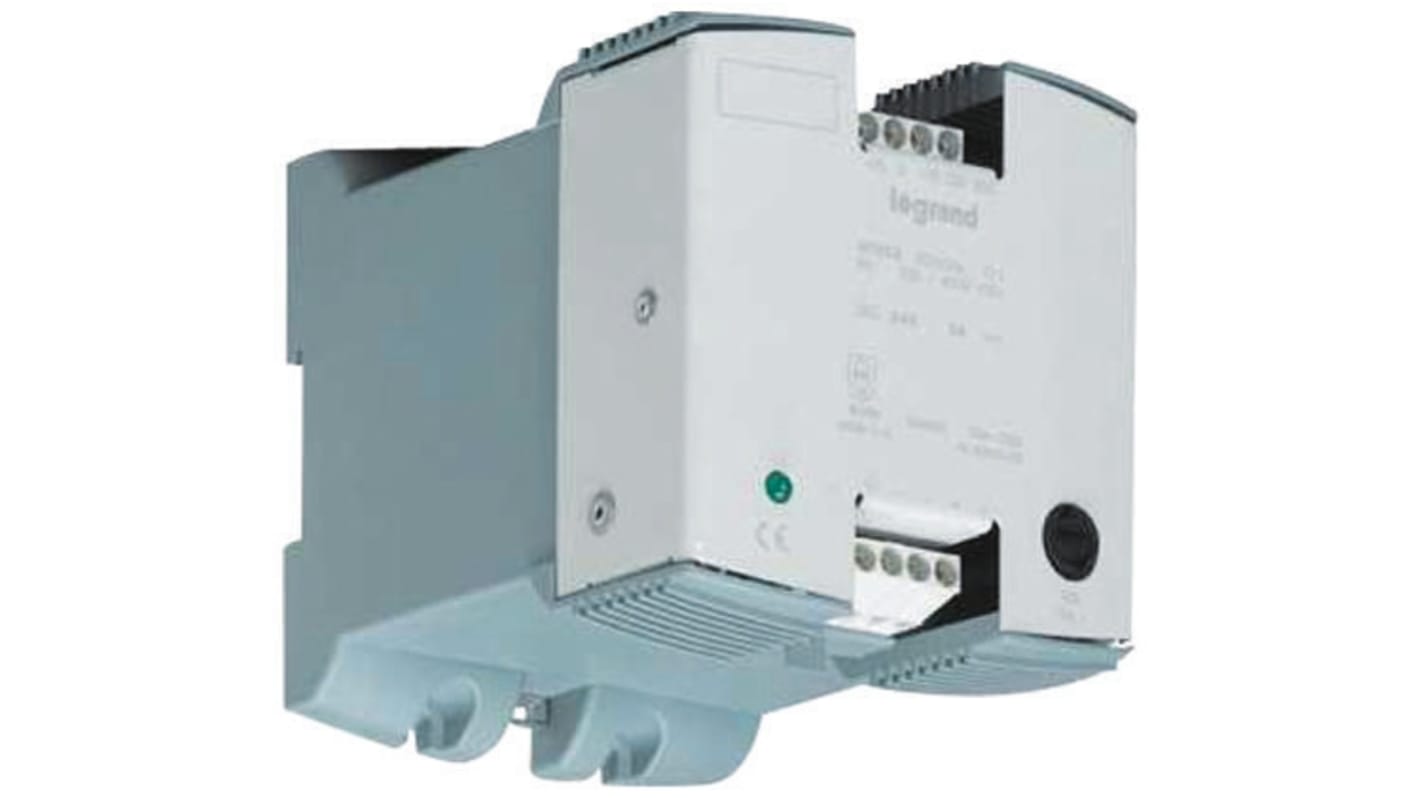

Legrand Linear DIN Rail Power Supply, 230V ac ac Input, 24V dc dc Output, 10A Output, 240W
- RS-artikelnummer:
- 480-9508
- Tillv. art.nr:
- 0 470 54
- Tillverkare / varumärke:
- Legrand
I lager för avsändande samma dag
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
8 488,35 kr
(exkl. moms)
10 610,44 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 8 488,35 kr |
- RS-artikelnummer:
- 480-9508
- Tillv. art.nr:
- 0 470 54
- Tillverkare / varumärke:
- Legrand
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer
Rectified, non-filtered 24 V power supplies
Power supplies that deliver a non-filtered 24 V output.
These supplies comprise a safety transformer with electro-static display and dual terminal block for single-phase applications.
The secondary output is protected by a fuse.
A green indicator light shows the operating voltage.
Supplied with coupling bar for fast connection between negative terminals and earth up to 15 A.
These supplies comprise a safety transformer with electro-static display and dual terminal block for single-phase applications.
The secondary output is protected by a fuse.
A green indicator light shows the operating voltage.
Supplied with coupling bar for fast connection between negative terminals and earth up to 15 A.
Standards
IEC/EN 61558 2-6 and CAN/CSA; E742, EN 61131-2
Specifikationer
Attribute | Value |
|---|---|
| Type | Linear |
| Output Voltage | 24V dc |
| Output Current | 10A |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 230 V ac → 400V ac |
| Power Rating | 240W |
| Height | 175mm |
| Width | 126mm |
| Depth | 186mm |
| Mounting Type | DIN Rail Mount |
