- RS-artikelnummer:
- 480-9435
- Tillv. art.nr:
- 0 470 20
- Tillverkare / varumärke:
- Legrand
Tillfälligt slut i lager – restorder för leverans 2024-05-29
Lagt till varukorgen
Pris (ex. moms) Varje
1 345,40 kr
(exkl. moms)
1 681,75 kr
(inkl. moms)
Enheter | Per unit |
1 + | 1 345,40 kr |
- RS-artikelnummer:
- 480-9435
- Tillv. art.nr:
- 0 470 20
- Tillverkare / varumärke:
- Legrand
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer

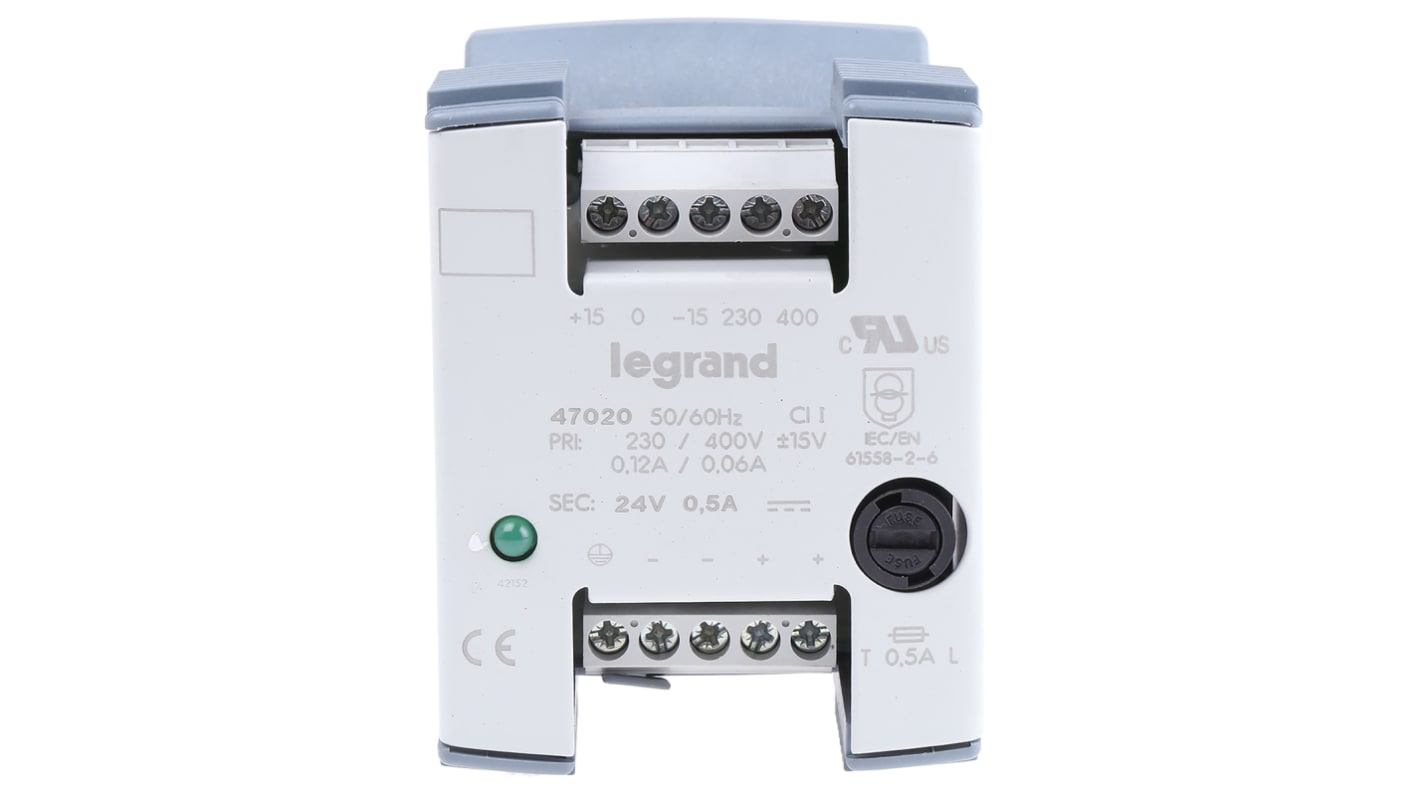

12 to 360W Linear, Filtered 0470 Series
230-400Vac input voltage
Input voltage adjustment taps:±15V
Safety isolating transformer with electrostatic screen
4510V input/output isolation
Integral output protection fuse provided
Twin output terminals for ease of connection
Green output LED
Easy to read - laser engraved label with international conformity symbols
Supplied with a connection link for quick connection between terminals and earth up to 15A
High quality manufacturing and testing conforming to IEC/EN 61 558-2-6, UL60950 (up to10A), CAN/CSA -C22.22 No.60 950.00.
Compatible with EN 61 131-2, EN 60 204 and EN 60 439-1 apparatus
Input voltage adjustment taps:±15V
Safety isolating transformer with electrostatic screen
4510V input/output isolation
Integral output protection fuse provided
Twin output terminals for ease of connection
Green output LED
Easy to read - laser engraved label with international conformity symbols
Supplied with a connection link for quick connection between terminals and earth up to 15A
High quality manufacturing and testing conforming to IEC/EN 61 558-2-6, UL60950 (up to10A), CAN/CSA -C22.22 No.60 950.00.
Compatible with EN 61 131-2, EN 60 204 and EN 60 439-1 apparatus
Standards
IEC, EN, UL, CAN/CSA
Specifikationer
Attribute | Value |
---|---|
Type | Linear |
Output Voltage | 24V dc |
Output Current | 500mA |
AC or DC Input Voltage | ac |
AC or DC Output Voltage | dc |
Input Voltage | 230V ac |
Power Rating | 12W |
Electrical Phase | 1 |
Number of Outputs | 1 |
Height | 88mm |
Width | 68mm |
Depth | 98mm |
Ripple And Noise | ±3% |
Maximum Temperature | +60°C |
Mounting Type | DIN Rail Mount |
