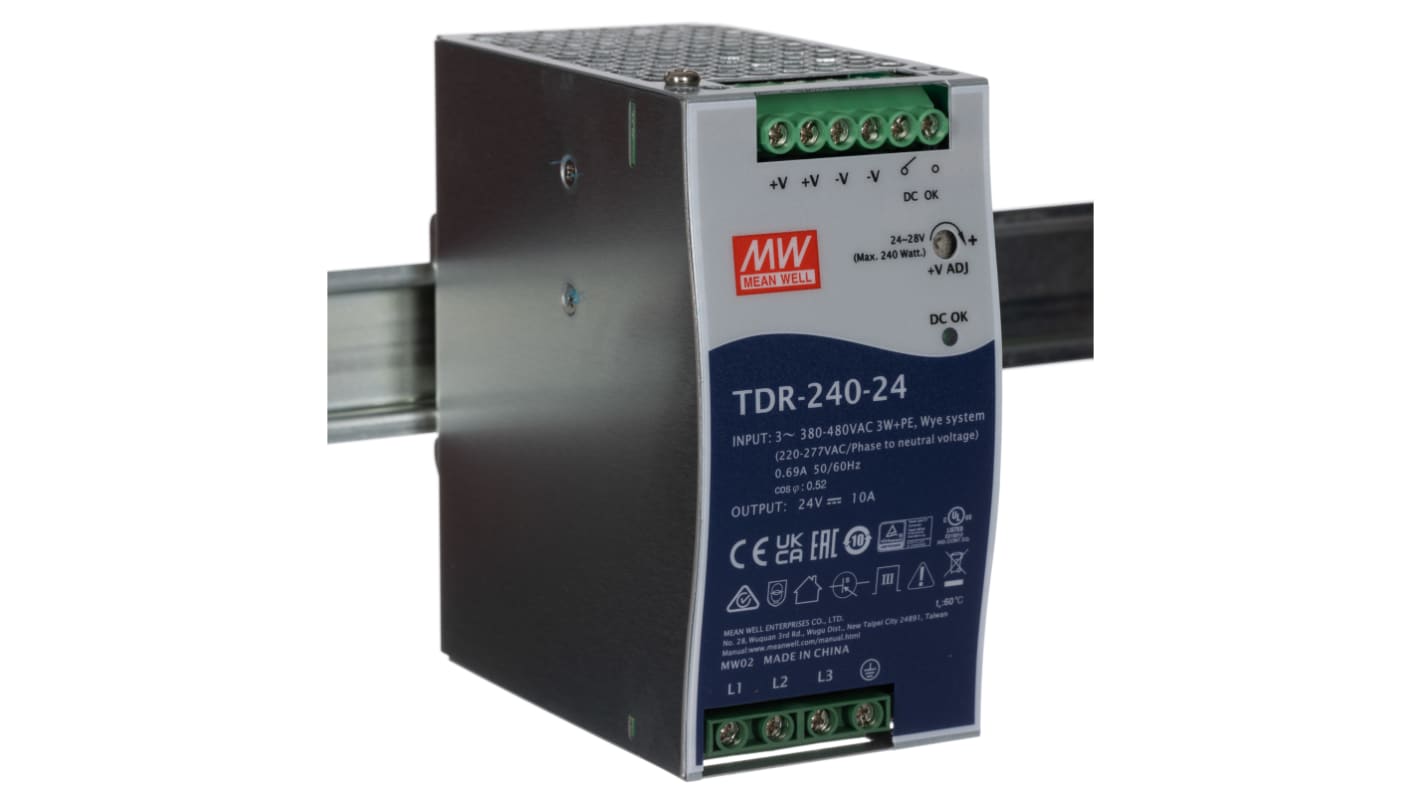

MEAN WELL TDR-240 Switched Mode DIN Rail Power Supply, 340 → 550 V ac / 480 → 780V dc ac, dc Input, 24V

RS-artikelnummer:: 181-7014
Tillv. art.nr:: TDR-240-24
Tillverkare / varumärke:: MEAN WELL

MEAN WELL TDR-240 Switched Mode DIN Rail Power Supply, 340 → 550 V ac / 480 → 780V dc ac, dc Input, 24V

191 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

1 359,48 kr

(exkl. moms)

1 699,35 kr

(inkl. moms)

Enheter	Per unit
1 - 4	1 359,48 kr
5 - 9	1 291,47 kr
10 - 24	1 223,53 kr
25 - 49	1 155,48 kr
50 +	1 088,97 kr

RS-artikelnummer:: 181-7014
Tillv. art.nr:: TDR-240-24
Tillverkare / varumärke:: MEAN WELL

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: CN

Produktdetaljer

Mean Well DIN Rail Power Supply

The Mean Well HDR series DIN rail 3-phase power supply has a universal input voltage ranging between 340VAC and 550VAC/480VAC and 780VDC with a built-in passive PFC function. It has an ultra-slim body of 63mm width, which allows space-saving inside the cabinets. It is made from metal housing that enhances the unit's power dissipation. It is equipped with constant current mode for overload protection, fitting various inductive or capacitive applications. The rated output current is 10A at 24VDC output voltage. Adjustable output voltage ranging between 24VDC and 28VDC.

Features and Benefits

Built-in constant current limiting circuit
Cooling by free air convection
DC output voltage adjustable
High efficiency up to 92%
LED indicator for power ON
No load power consumption is less than 0.3W
Operation temperature ranging between -30°C and 70°C
Power rating is up to 240W
Ripple factor and noise is 100mV
Short circuit and overvoltage protection

Applications

Electro-mechanical apparatus
Factory automation
Industrial control system
Semiconductor fabrication equipment

Certifications

CE Certified
EN6100
UL approved

Specifikationer

Attribute	Value
Type	Switched Mode
Output Voltage	24V dc
Output Current	10A
AC or DC Input Voltage	ac, dc
AC or DC Output Voltage	dc
Input Voltage	340 → 550 V ac / 480 → 780V dc
Power Rating	240W
Electrical Phase	3
Number of Outputs	1
Height	125mm
Width	63mm
Depth	114mm
Series	TDR-240
Load Regulation	±1%
MTBF	515.4kh
Output Voltage Adjustment Range	24 → 28V
Special Features	3 Year Warranty, 63 mm Slim Width, Cooling by Free Air Convection
Ripple And Noise	100mV Pk-Pk
Efficiency	92%
Minimum Temperature	-30°C
Mounting Type	DIN Rail Mount
Maximum Temperature	+70°C
Standards Met	CE Certified, EN 61558, EN61000-3-2, EN61000-3-3, EN61000-4-11, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61204-3, UL Listed
