- RS-artikelnummer:
- 123-8021
- Tillv. art.nr:
- PIC120.241D
- Tillverkare / varumärke:
- PULS
8 I lager för avsändande samma dag
20 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Varje
1 162,92 kr
(exkl. moms)
1 453,65 kr
(inkl. moms)
Enheter | Per unit |
1 + | 1 162,92 kr |
- RS-artikelnummer:
- 123-8021
- Tillv. art.nr:
- PIC120.241D
- Tillverkare / varumärke:
- PULS
Datablad
Lagstiftning och ursprungsland
Produktdetaljer

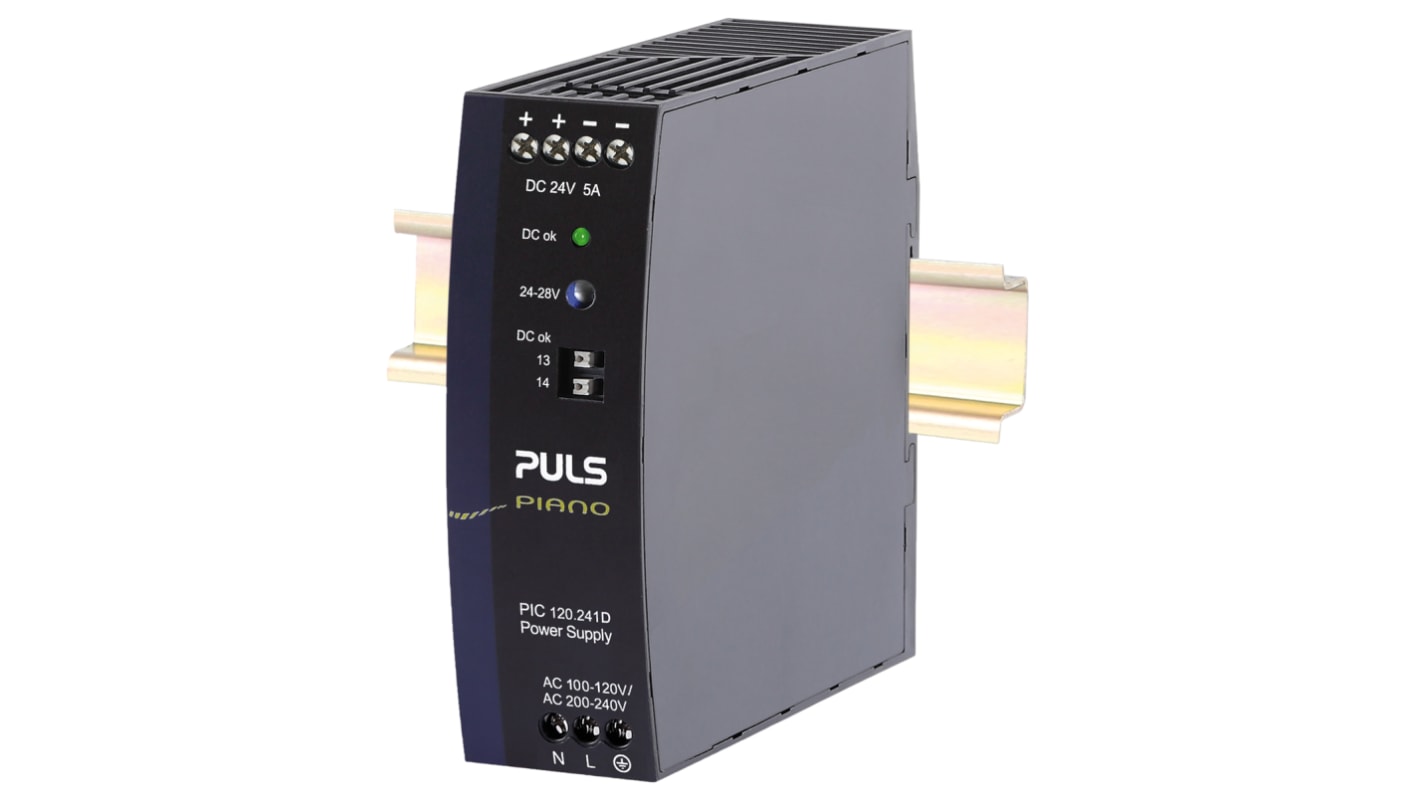

PIANO Series DIN Rail Power Supply
With the new PIANO series, PULS-quality DIN Rail power supplies are now available for even the most cost-oriented user. Through an innovative approach, the intrinsic properties of a PULS power supply have now been introduced into a product that also has significant price advantages.
Despite low-cost requirements, an MTBF of more than 1.4 million hours and efficiencies of 90.5% to 95.2% have been achieved. This innovation was made possible by a clever single-board design, cost-saving polycarbonate housing and a design team that was focused on an intelligent design for manufacturability.
Despite low-cost requirements, an MTBF of more than 1.4 million hours and efficiencies of 90.5% to 95.2% have been achieved. This innovation was made possible by a clever single-board design, cost-saving polycarbonate housing and a design team that was focused on an intelligent design for manufacturability.
Features and Benefits
DC-OK signal with relay (Except PIC120.242C)
Operational temperature range of up to 55°C (without derating)
Large input and output terminals all within a light and compact housing
Efficiency between 90.5 and 95.2% at 230 V
Made from high quality polycarbonate
High service lifetime
High reliability MTBF (Mean Time Between Failures)
Light and compact
Single board design increasing processing reliability
Operational temperature range of up to 55°C (without derating)
Large input and output terminals all within a light and compact housing
Efficiency between 90.5 and 95.2% at 230 V
Made from high quality polycarbonate
High service lifetime
High reliability MTBF (Mean Time Between Failures)
Light and compact
Single board design increasing processing reliability
Approvals
PIANO DIN Rail power supplies meet the following standards and approvals:
IEC / UL 60950-1
UL 508
EMC Emission EN 55011/022 Class B
EMC IEC / EN 61000-6-1 / 61000-6-2 / 61000-6-4
Degree of pollution IEC 62103: 2
Mechanical Shock IEC 60068-2-27: 30 g 6 ms, 11 ms 20 g
Vibration IEC 60068-2-6: 2 g
IEC / UL 60950-1
UL 508
EMC Emission EN 55011/022 Class B
EMC IEC / EN 61000-6-1 / 61000-6-2 / 61000-6-4
Degree of pollution IEC 62103: 2
Mechanical Shock IEC 60068-2-27: 30 g 6 ms, 11 ms 20 g
Vibration IEC 60068-2-6: 2 g
Specifikationer
Attribute | Value |
---|---|
Type | Switch Mode |
Output Voltage | 24V dc |
Output Current | 5A |
AC or DC Output Voltage | dc |
Input Voltage | 230V ac |
Power Rating | 120W |
Electrical Phase | 1 |
Number of Outputs | 1 |
Height | 124mm |
Width | 124mm |
Depth | 124mm |
Series | PIANO |
Output Voltage Adjustment Range | 24 → 28V |
Load Regulation | 150mV |
Special Features | Compact Design, Cost Effective Power Source, DC OK Relay Contact |
Standards Met | CE Certified, cULus Listed, cULus Recognised, EN 50178, EN 55011, EN 55022, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-3, EN 61000-6-4, FCC, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-6, IEC 62103, IEC/CISPR 16-1-2, IEC/CISPR 16-2-1, LVD, MIL HDBK 217F, SEMI F47 0706, UL 508, UL 60950-1, VDE 0160 |
Maximum Temperature | +70°C |
MTBF | 434000h |
Ripple And Noise | 100mV Pk-Pk |
Minimum Temperature | -10°C |
Mounting Type | DIN Rail Mount |
