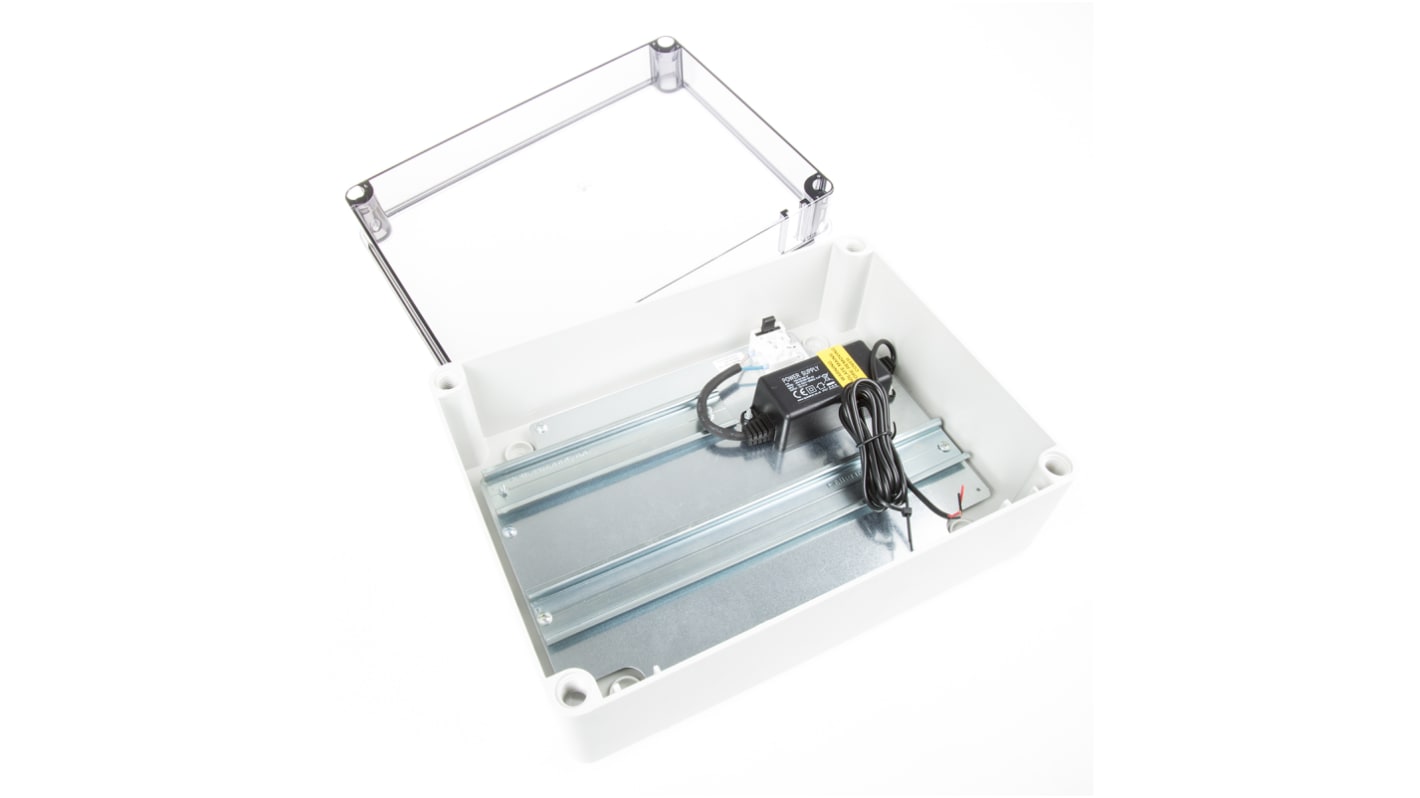

RF Solutions, 240 x 190 x 90mm, Plastic DIN Rail Enclosure Kit

  • RS-artikelnummer 505-6525
  • Tillv. art.nr ENC-DA3R1
  • Tillverkare / varumärke RF Solutions
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): GB
Produktdetaljer

200 series DIN-Rail 458MHz Long-Range FM wireless switching system

These 200 series FM wireless modules are designed for industrial control applications requiring long-range up to 6000m.

200-458FR High-Power Transmitter ModuleRF Operating Frequency: 458.850MHz ISM BandModulation: FMRange: up to 6000m (line of sight)8 x no-volt input channels on screw terminalsSelectable auto transmit modeAutomatic watchdog transmissionBulkhead mounting antennaPower supply: +12/24VdcOperating temperature range: 0 to +55°CDimensions: 112 x 82mm within DIN Rail bracket215R1 8-Relay Output ModuleConnects directly to 210 DIN-rail receiver (Cable supplied)Screw terminal output connectionsMaximum switching current per output: 5A @ 230VacPowered from receiverOperating temperature range: 0 to +55°CDimensions: 93 x 82mm within DIN Rail bracket230R1 4-Relay Output ModuleConnects directly to 210 DIN-rail receiver (Cable supplied)Screw terminal output connectionsMaximum switching current per output: 30A @ 230VacPowered from receiverOperating temperature range: 0 to +55°CDimensions: 115 x 82mm within DIN Rail bracketENC-DA3R1 Enclosure with PSUIP56 ratedInsulation Class 2DIN-rails mounted on steel plateTransparent lidIntegrated +12Vdc @ 1A moulded power supplyDimensions: 240 x 190 x 90mmRS Product Codes451-0501 200-458FR Transmitter module617-1883 215R1 8-relay module, 5A505-6519 230R1 4-relay module, 30A505-6525 ENC-DA3R1 Enclosure

Specifikationer
Attribute Value
Dimensions 240 x 190 x 90mm
Body Material Plastic
Enclosure Type Module Box
Length 240mm
Width 90mm
Height 190mm
Minimum Operating Temperature -25°C
Maximum Operating Temperature +60°C
Internal Mounting Type DIN Rail
Special Features Pre-drilled Antenna Hole
12 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 433,64 kr
(exkl. moms)
1 792,05 kr
(inkl. moms)
Enheter
Per unit
1 - 4
1 433,64 kr
5 +
1 361,98 kr
