RS PRO 6 Pole Din Socket, 1A, 100 V ac, Push Lock, Female, Chassis Mount
- RS-artikelnummer:
- 491-116
- Tillverkare / varumärke:
- RS PRO
Tillfälligt slut i lager – restorder för leverans 2024-06-18
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
25,70 kr
(exkl. moms)
32,12 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 120 | 25,70 kr | 128,50 kr |
| 125 - 495 | 24,528 kr | 122,64 kr |
| 500 - 2495 | 22,536 kr | 112,68 kr |
| 2500 + | 12,21 kr | 61,05 kr |
- RS-artikelnummer:
- 491-116
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer

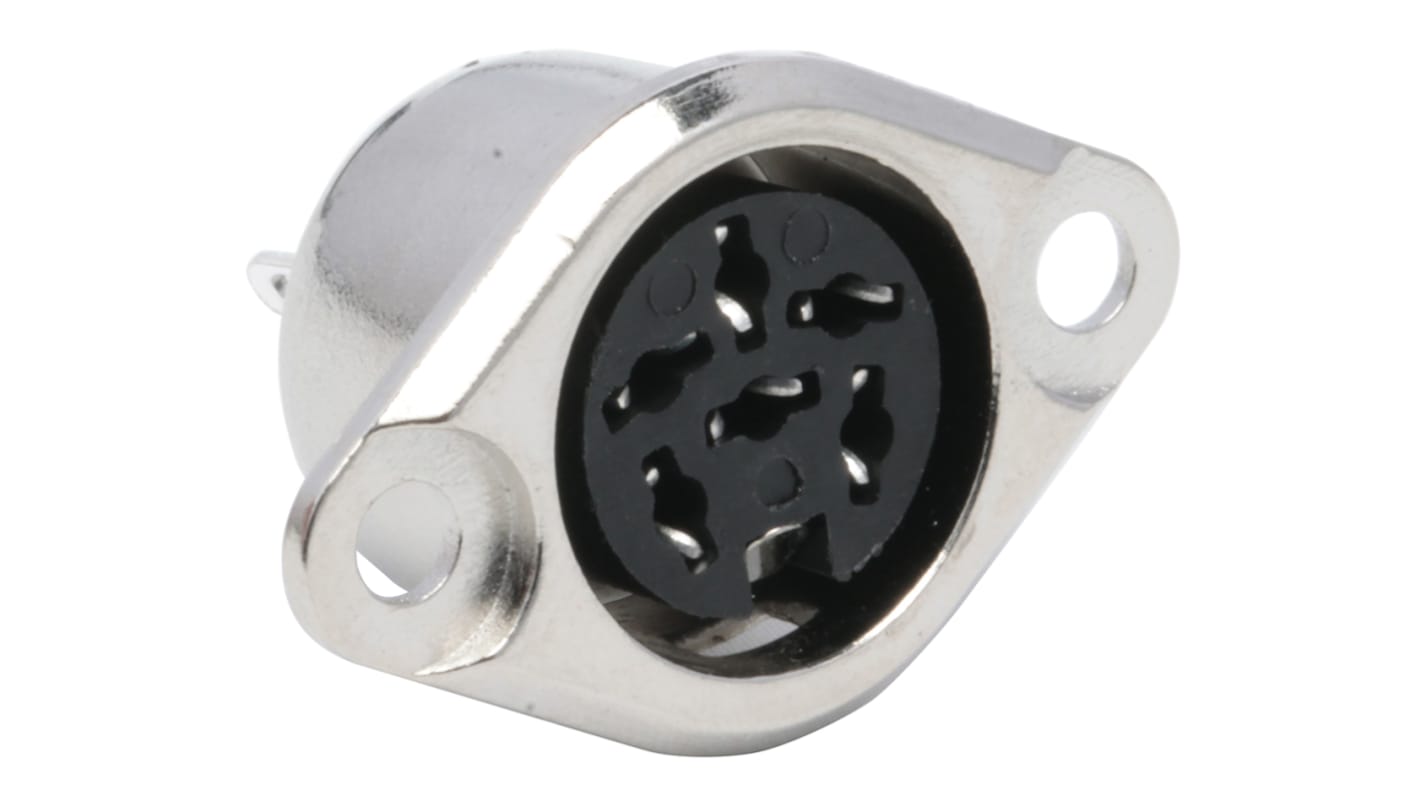

RS Pro Screened DIN Connector Sockets, Chassis Mount
Brought to you under the trusted RS Pro brand, this chassis mount DIN socket has robust nickel-plated housing. With a moulded noryl body containing silver plated contacts, this DIN circular connecter assures a reliable connection. The connector has two fixing holes for secure mounting.
Features and Benefits
• Maximum voltage 100 V dc or ac peak
• Zinc Alloy Shield Cover
• Silver Plated Brass Terminals
• Zinc Alloy Shield Cover
• Silver Plated Brass Terminals
Specifikationer
Attribute | Value |
|---|---|
| Number of Contacts | 6 |
| Gender | Female |
| Mounting Type | Chassis Mount |
| Mating Type | Push Lock |
| Body Orientation | Straight |
| Current Rating | 1A |
| Voltage Rating | 100 V ac |
| Shielded/Unshielded | Shielded |
| Series | YE-149X |
| Housing Material | ABS |
| Contact Plating | Nickel, Silver |
| Contact Material | Brass, Copper |
