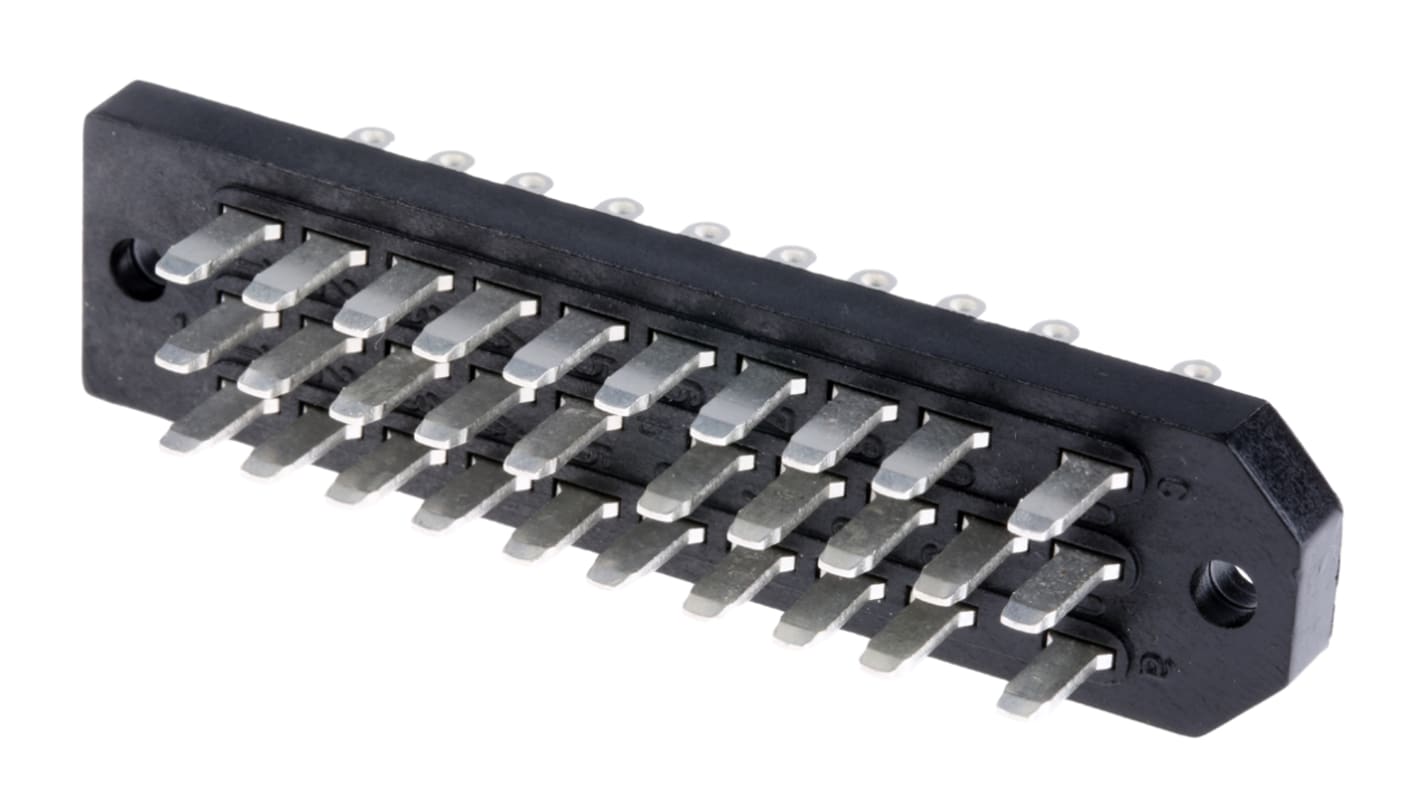

Telegartner J00046A0918, DIN 41622 Connector, Male, 30-Way, 3-Row, Solder, J000 Series

  • RS-artikelnummer 100-6295
  • Tillv. art.nr J00046A0918
  • Tillverkare / varumärke Telegartner
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer

DIN 41622 Double Row Connectors

8,12,16,20 and 30 ways available
Male and Female variants

//media.rs-online.com/t_line/LA100620-01.gif
Specifikationer
Attribute Value
Gender Male
Number of Contacts 30
Number of Rows 3
Termination Method Solder
Body Orientation Straight
Housing Material PC
Contact Plating Silver
Current Rating 8A
Maximum Contact Resistance 5mΩ
Voltage Rating 380 V ac, 450 V dc
Series J000
Maximum Operating Temperature +60°C
36 I lager för leverans inom 1 arbetsdagar
Inom 2 arbetsdag(ar) (UK lager)
Pris (ex. moms) Each
95,75 kr
(exkl. moms)
119,69 kr
(inkl. moms)
Enheter
Per unit
1 - 9
95,75 kr
10 - 49
89,85 kr
50 - 99
83,96 kr
100 - 249
77,76 kr
250 +
71,86 kr
