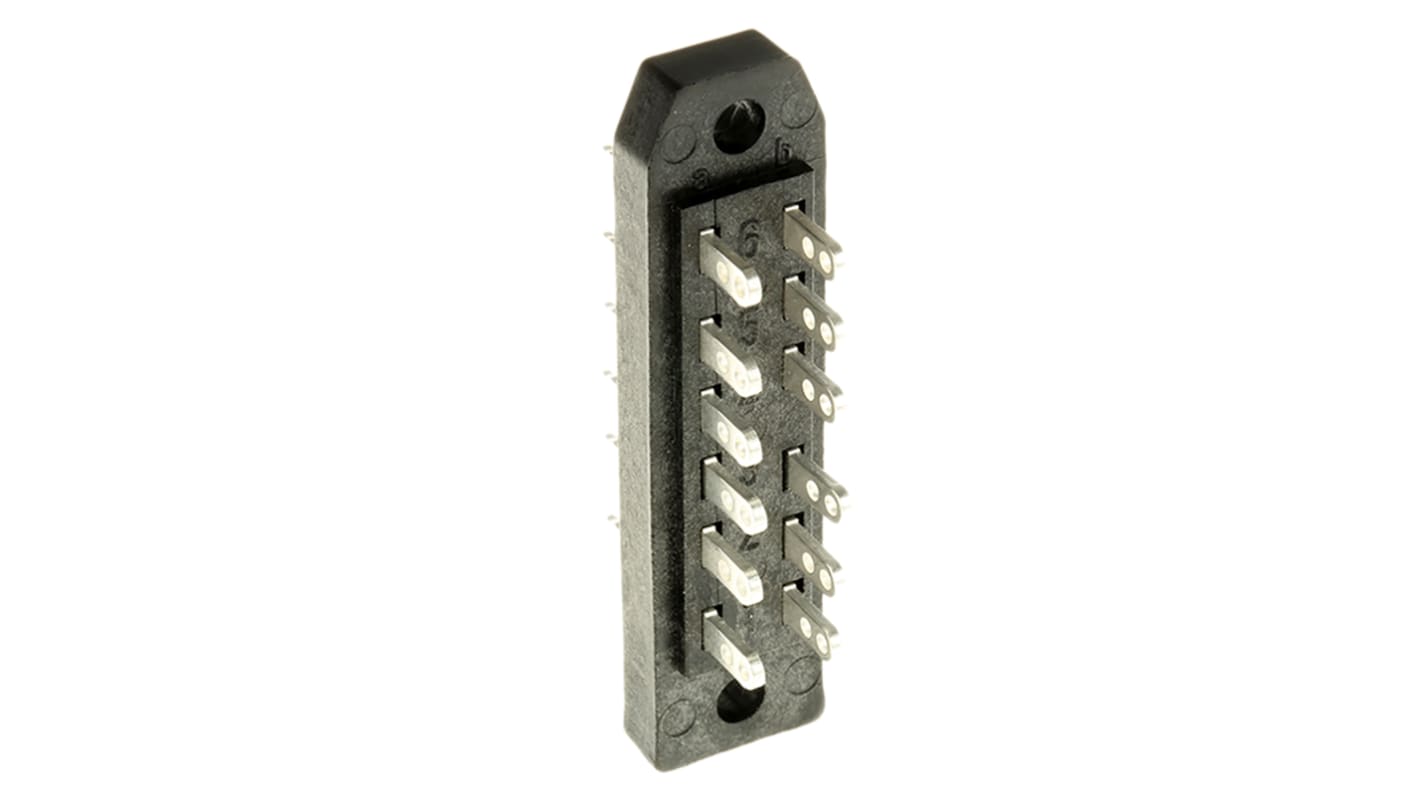

Telegartner J00045A0912, , DIN 41622 Connector, Male, 12-Way, 2-Row, Solder, J000

  • RS-artikelnummer 100-6223
  • Tillv. art.nr J00045A0912
  • Tillverkare / varumärke Telegartner
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

DIN 41622 Double Row Connectors

8,12,16,20 and 30 ways available
Male and Female variants

//media.rs-online.com/t_line/LA100620-01.gif
Specifikationer
Attribute Value
Gender Male
Number of Contacts 12
Number of Rows 2
Termination Method Solder
Body Orientation Straight
Housing Material PC
Contact Plating Silver
Current Rating 8A
Maximum Contact Resistance 5mΩ
Voltage Rating 380 V ac, 450 V dc
Series J000
Maximum Operating Temperature +60°C
10 I lager för leverans inom 1 arbetsdagar
Inom 2 arbetsdag(ar) (UK lager)
Pris (ex. moms) Each
48,08 kr
(exkl. moms)
60,10 kr
(inkl. moms)
Enheter
Per unit
1 - 9
48,08 kr
10 - 49
45,08 kr
50 - 99
42,08 kr
100 - 249
39,09 kr
250 +
37,33 kr
