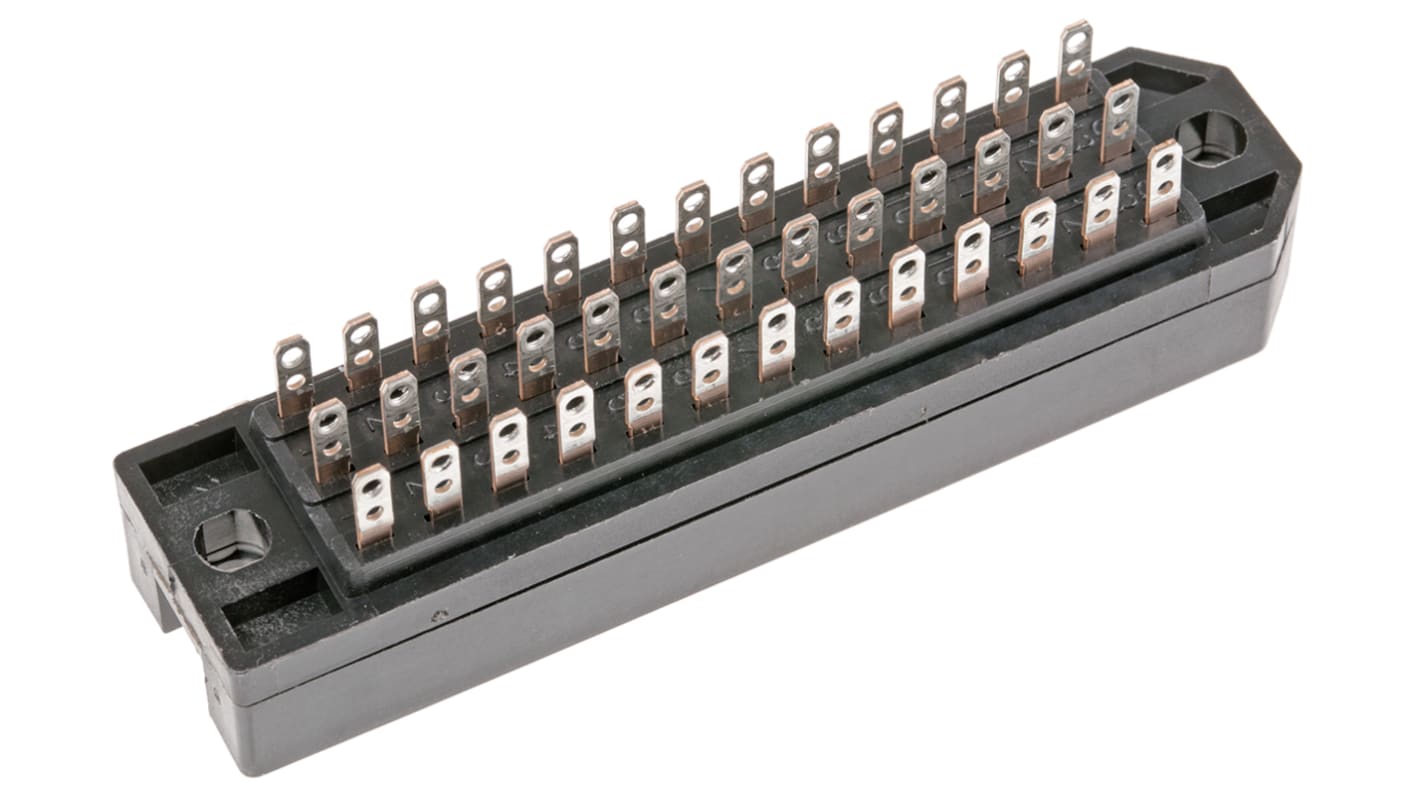

TE Connectivity RP618 Series 39 Way Straight DIN 41618 Connector, Cable Mount, Solder Termination

  • RS-artikelnummer 256-8558
  • Tillv. art.nr C42334A49A36
  • Tillverkare / varumärke TE Connectivity
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): DE
Produktdetaljer

RP618 Series DIN 41618 Male and Female Free Wiring Connectors

RP618 series 20 and 39 pin DIN 41618 male and female connectors with solder lugs for free wiring in accordance with DIN 41618. These RP618 series DIN 41618 plug and socket connectors have a current capacity of 8 or 6A and are available with silver or gold plated contacts.

Insulation resistance ≥106Ω
1000 mating cycles service life
Operating temperature range -55 to +155°C
Contact resistance ≤5mΩ
Operating Voltage 300V/250Vac

DIN41618 Range

Specifikationer
Attribute Value
Number of Contacts 39
Termination Method Solder
Body Orientation Straight
Current Rating 6A
Voltage Rating 300 V
Series RP618
Tillfälligt slut i lager – restorder för leverans 2020-05-13
Pris (ex. moms) Each
260,46 kr
(exkl. moms)
325,58 kr
(inkl. moms)
Enheter
Per unit
1 - 19
260,46 kr
20 - 74
235,13 kr
75 - 299
211,14 kr
300 - 599
192,84 kr
600 +
187,15 kr
