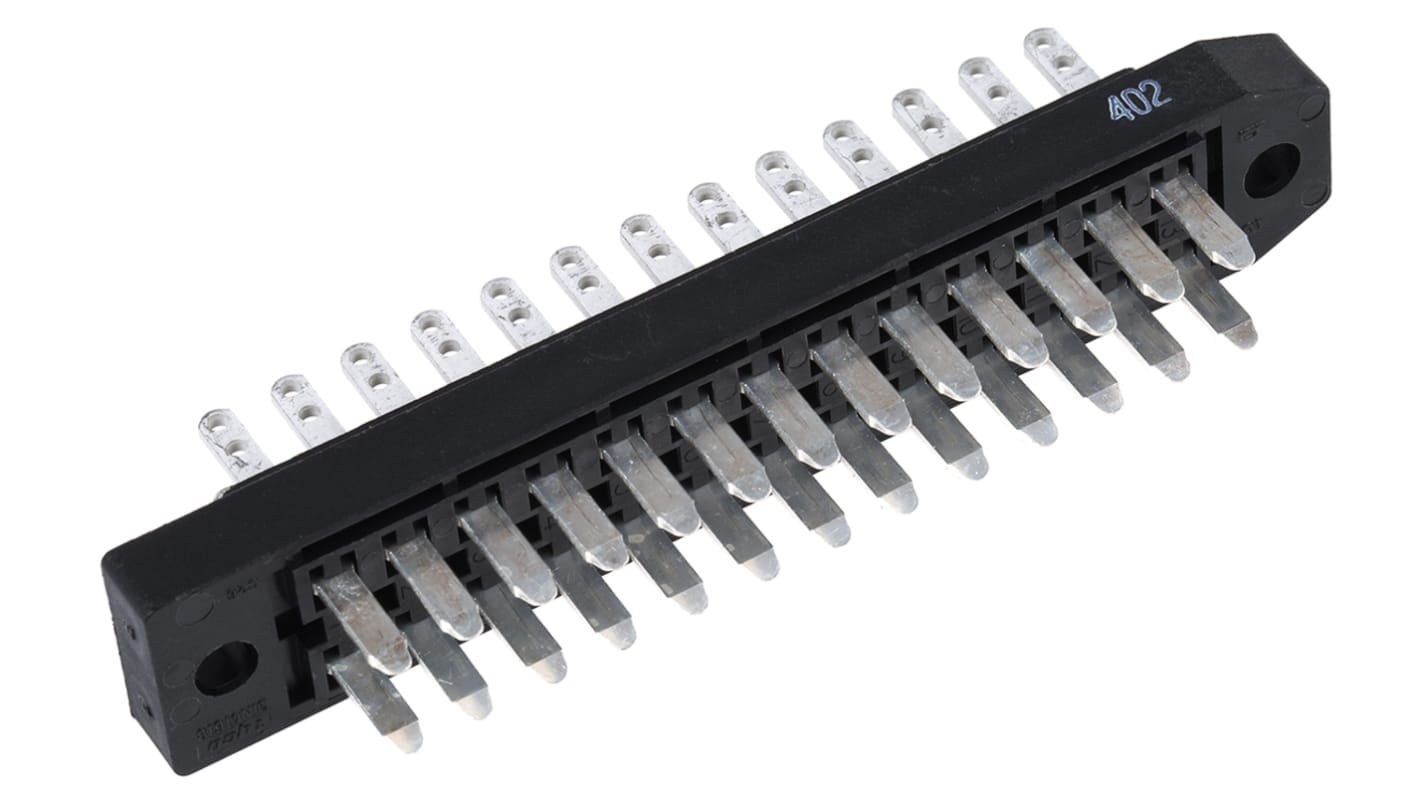

TE Connectivity RP618 Series, 26 Way DIN 41618 Connector Plug, 8A

  • RS-artikelnummer 173-5221
  • Tillv. art.nr C42334A48A5
  • Tillverkare / varumärke TE Connectivity
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer

RP618 Series DIN 41618 Male and Female Free Wiring Connectors

RP618 series 20 and 39 pin DIN 41618 male and female connectors with solder lugs for free wiring in accordance with DIN 41618. These RP618 series DIN 41618 plug and socket connectors have a current capacity of 8 or 6A and are available with silver or gold plated contacts.

Insulation resistance ≥106Ω
1000 mating cycles service life
Operating temperature range -55 to +155°C
Contact resistance ≤5mΩ
Operating Voltage 300V/250Vac

DIN41618 Range

Specifikationer
Attribute Value
Gender Male
Number of Contacts 26
Body Orientation Straight
Contact Plating Silver
Current Rating 8A
Voltage Rating 300 V
Series RP618
Maximum Operating Temperature +125°C
Minimum Operating Temperature -55°C
80 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Tray of 40)
181,863 kr
(exkl. moms)
227,329 kr
(inkl. moms)
Enheter
Per unit
Per Tray*
40 +
181,863 kr
7 274,52 kr
