- RS-artikelnummer:
- 923-0865
- Tillv. art.nr:
- 09221326921
- Tillverkare / varumärke:
- HARTING
Tillfälligt slut i lager – restorder för leverans 2024-05-02
Pris (ex. moms) Var (i en låda med 20)
38,378 kr
(exkl. moms)
47,972 kr
(inkl. moms)
Enheter | Per unit | Per Box* |
20 - 80 | 38,378 kr | 767,56 kr |
100 - 180 | 31,89 kr | 637,80 kr |
200 - 480 | 27,744 kr | 554,88 kr |
500 - 980 | 27,017 kr | 540,34 kr |
1000 + | 26,327 kr | 526,54 kr |
- RS-artikelnummer:
- 923-0865
- Tillv. art.nr:
- 09221326921
- Tillverkare / varumärke:
- HARTING
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer

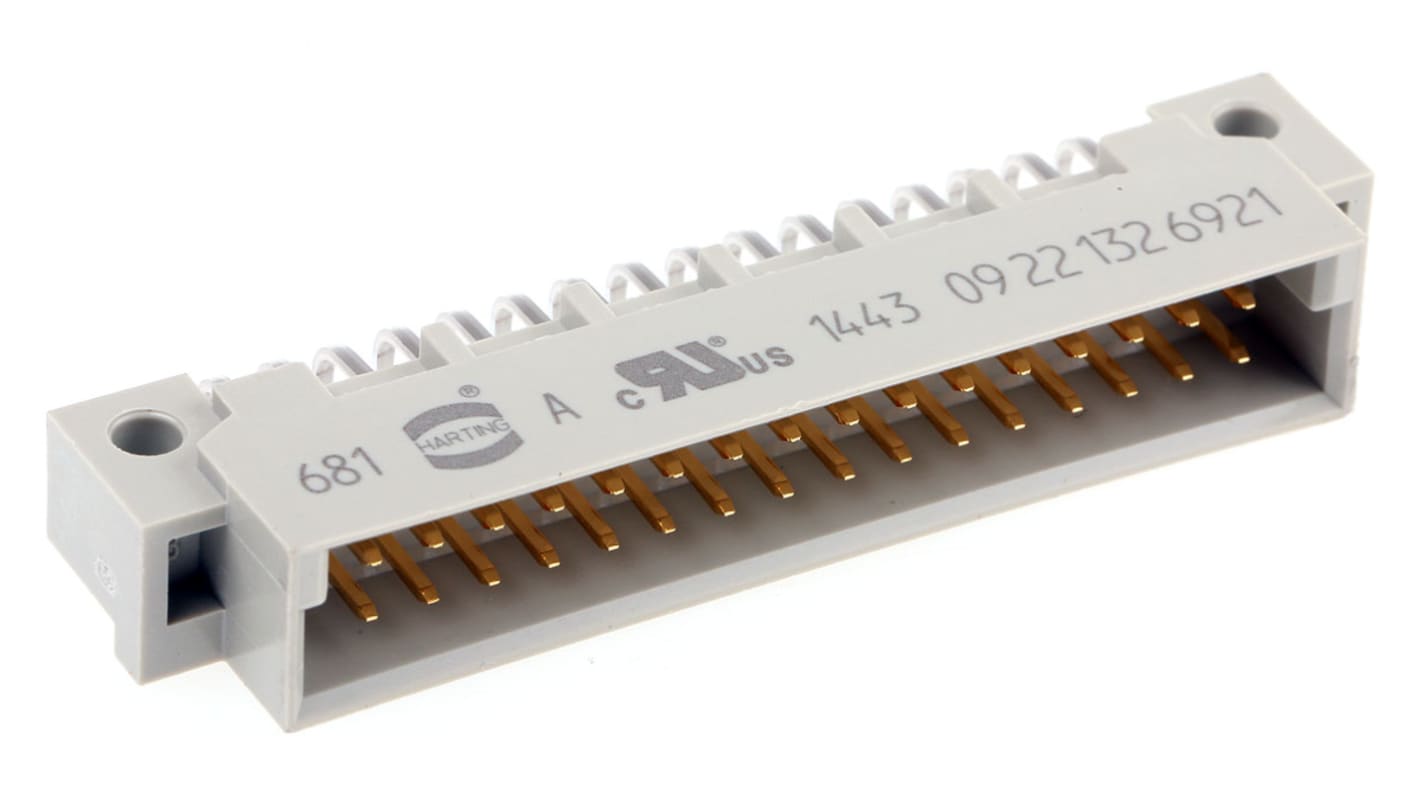

Harting DIN 41612 Complementary Type 2B Backplane Signal Connectors
Harting DIN 41612 complementary type 2B backplane signal connectors are designed for PCB applications with a maximum of 2A per contact. Hard wearing and durable with a good mating cycle, these DIN 41612 complementary type 2B PCB backplane signal connectors offer an economical solution to many electronic signal connector design applications.
Operating temp -55 to +125 °C
2A max per contact
Test voltage 1kV
Contact resistance up to 20mΩ
Thermoplastic resin - glass fibre filled
Copper alloy contacts
Termination Method - Solder
2A max per contact
Test voltage 1kV
Contact resistance up to 20mΩ
Thermoplastic resin - glass fibre filled
Copper alloy contacts
Termination Method - Solder
DIN41612 - Harting Range
DIN 41612 connectors for interconnection in all 19in Eurocard racking systems.
Specifikationer
Attribute | Value |
---|---|
Number of Contacts | 32 |
Gender | Male |
Number of Rows | 2 |
Body Orientation | Right Angle |
Termination Method | Solder |
Row Loading | a/b |
Type | 2B |
Pitch | 2.54mm |
Mounting Type | Through Hole |
Contact Plating | Gold over Nickel |
Class Rating | C2 |
Current Rating | 2A |
