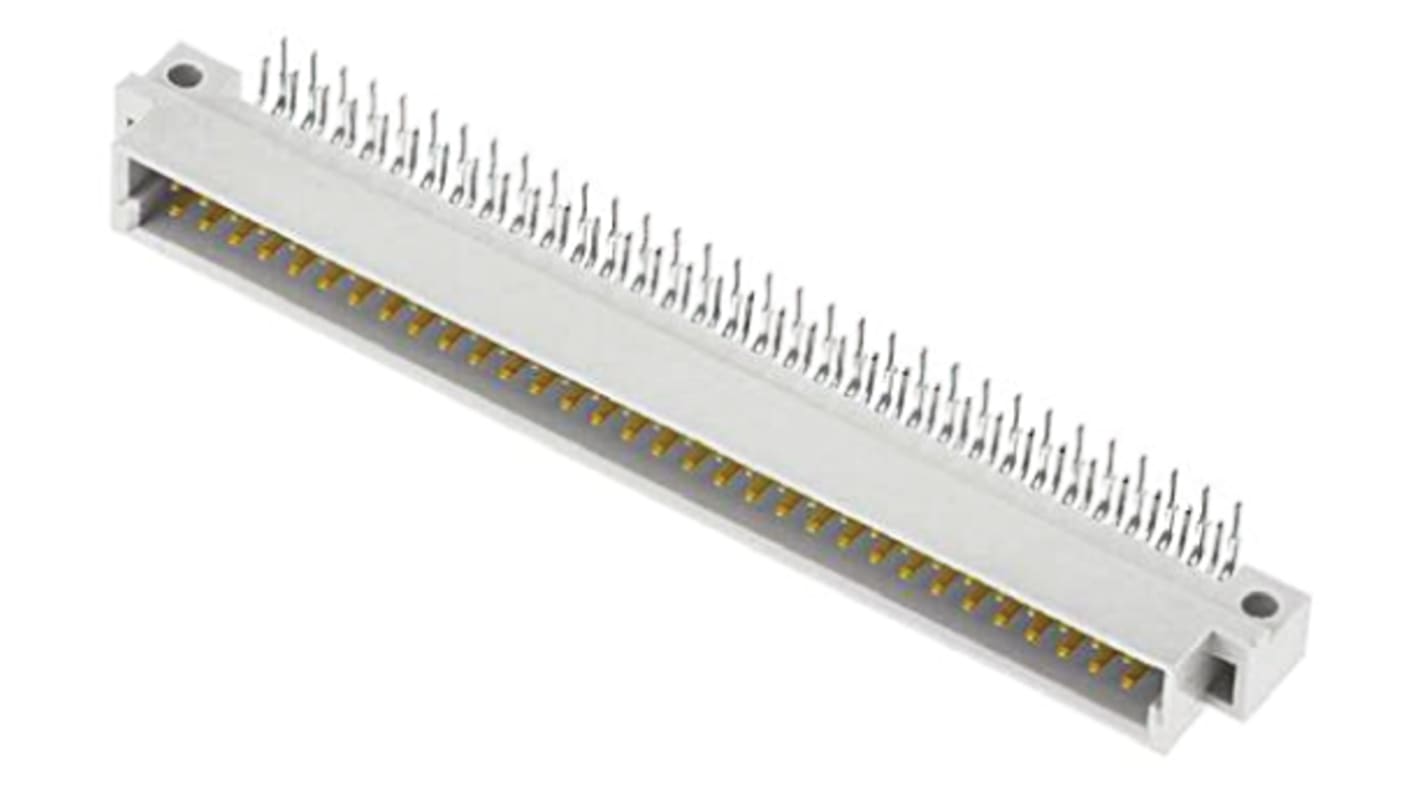

Harting DIN 41612 64 Way 2.54mm Pitch, Right Angle DIN 41612 Connector, Plug

RS-artikelnummer:: 757-7989
Tillv. art.nr:: 09021646921222
Tillverkare / varumärke:: HARTING

Harting DIN 41612 64 Way 2.54mm Pitch, Right Angle DIN 41612 Connector, Plug

3 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

86,64 kr

(exkl. moms)

108,30 kr

(inkl. moms)

Enheter	Per unit
1 - 19	86,64 kr
20 - 74	71,66 kr
75 - 299	60,61 kr
300 - 599	56,23 kr
600 +	52,29 kr

RS-artikelnummer:: 757-7989
Tillv. art.nr:: 09021646921222
Tillverkare / varumärke:: HARTING

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: DE

Produktdetaljer

Harting DIN 41612 Type B Backplane Signal Connectors

Harting DIN 41612 type B backplane signal connectors are designed for PCB applications with a maximum of 2A per contact. Hard wearing and durable with a good mating cycle, these DIN 41612 PCB signal connectors offer an economical solution to many electronic signal connector design applications.
Stock numbers 757-7989 and 757-7964 are railway approved with a railway classification of NFF 16-101, Smoke index: F1, Flammability class: I2

Operating temp -55 to +125 °C
2A max per contact
Test voltage 1kV
Contact resistance up to 20mΩ
Thermoplastic resin - glass fibre filled
Copper alloy contacts
Termination Method - Solder

DIN41612 - Harting Range

DIN 41612 connectors for interconnection in all 19in Eurocard racking systems.

Specifikationer

Attribute	Value
Number of Contacts	64
Gender	Male
Body Orientation	Right Angle
Pitch	2.54mm
Current Rating	2A
Contact Material	Copper Alloy
Series	DIN 41612
Housing Material	Thermoplastic
Maximum Operating Temperature	+125°C
Minimum Operating Temperature	-55°C
