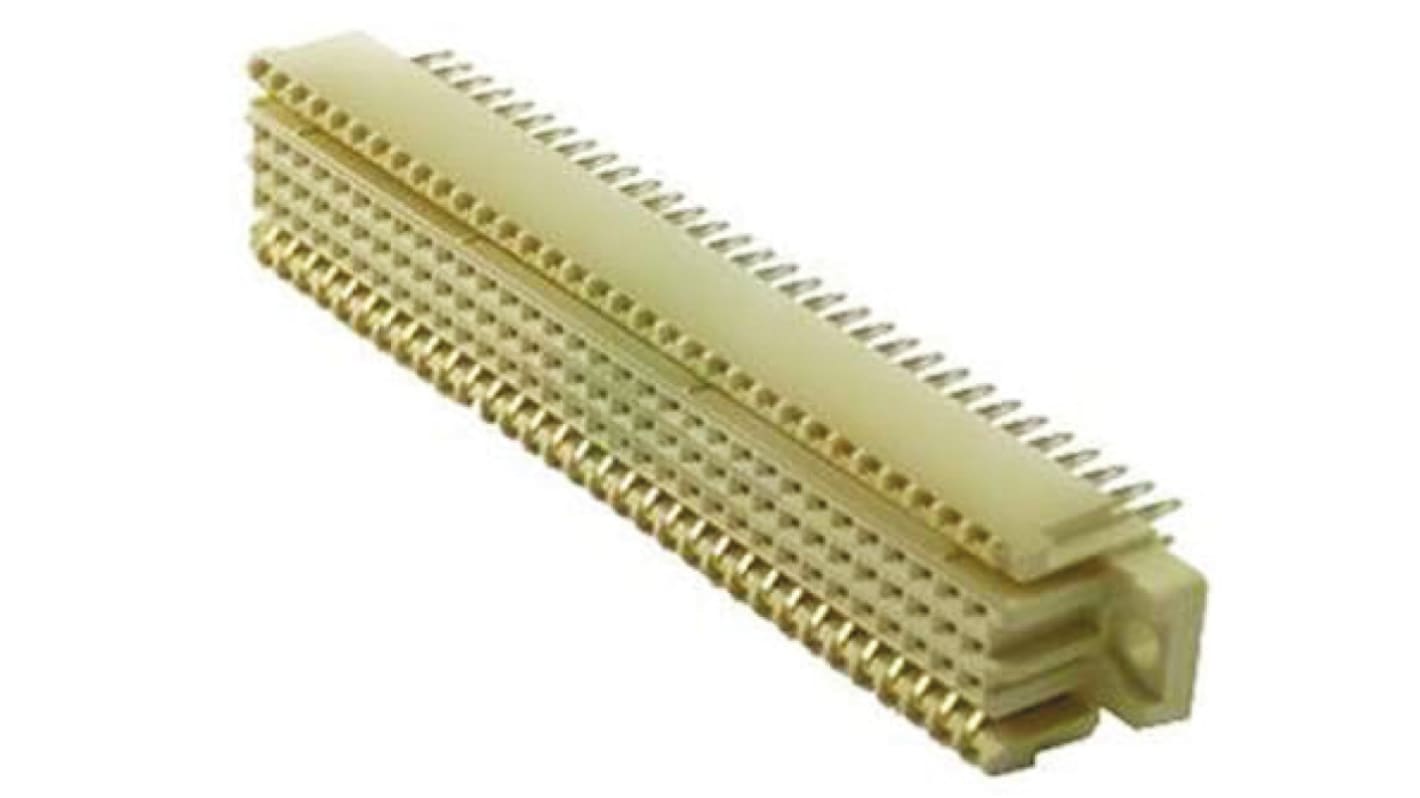

Harting har-bus 64 160 Way 2.54mm Pitch, 5 Row, Straight DIN 41612 Connector, Socket
- RS-artikelnummer:
- 740-7379
- Tillv. art.nr:
- 02021602202
- Tillverkare / varumärke:
- HARTING
Tillfälligt slut i lager – restorder för leverans 2024-08-01
Lagt till varukorgen
Pris (ex. moms) Varje
282,91 kr
(exkl. moms)
353,64 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 19 | 282,91 kr |
| 20 - 74 | 244,40 kr |
| 75 - 299 | 229,08 kr |
| 300 - 599 | 209,39 kr |
| 600 + | 203,27 kr |
- RS-artikelnummer:
- 740-7379
- Tillv. art.nr:
- 02021602202
- Tillverkare / varumärke:
- HARTING
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Har-Bus 64 HM Connectors
Harting Har-Bus 64 hard metric connectors, suitable for many PCI applications.The hard metric connector has been designed to meet high speed connector applications for control and industrial computing systems. All Har-bus HM connectors are designed for press in technology.
2mm pitch
Current rating 1A at 70°C (80% derating)
Test voltage 750 Vac min.
Contact resistance 20mΩ
Temperature range -55 to +125 °C
Current rating 1A at 70°C (80% derating)
Test voltage 750 Vac min.
Contact resistance 20mΩ
Temperature range -55 to +125 °C
Specifikationer
Attribute | Value |
|---|---|
| Number of Contacts | 160 |
| Gender | Female |
| Number of Rows | 5 |
| Body Orientation | Straight |
| Termination Method | Press-In |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Current Rating | 1A |
| Contact Material | Copper Alloy |
| Series | har-bus 64 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Housing Material | Liquid Crystal Polymer |
