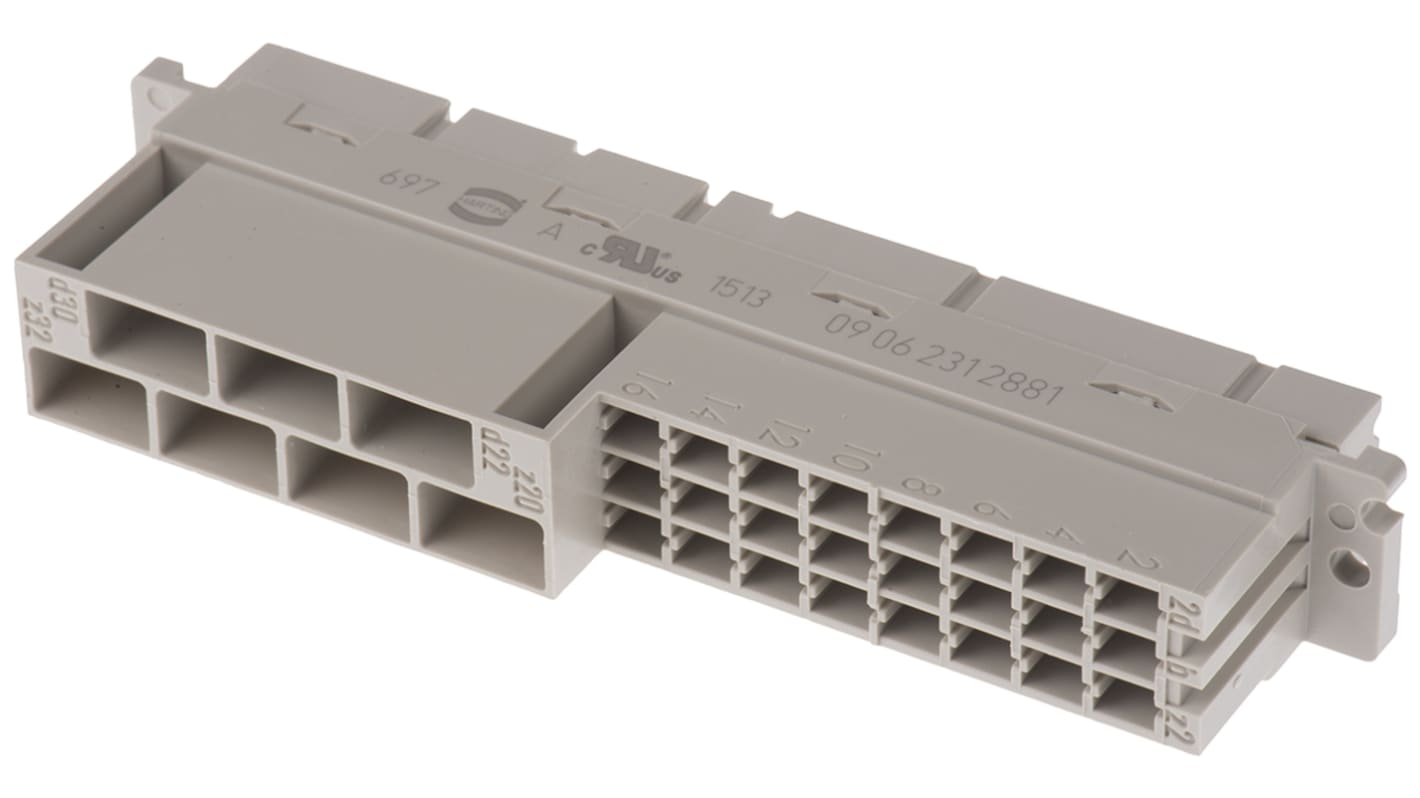

Harting 09 06 Series 24 + 7 Way 3.81 mm, 5.08 mm, 6.5 mm, 10.16 mm Pitch, Type MH, 2/3 Row, Straight DIN 41612 Connector

  • RS-artikelnummer 740-7029
  • Tillv. art.nr 09062312881
  • Tillverkare / varumärke HARTING
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer

Harting DIN 41612 Complementary High Current (MH) Type Power Connectors

DIN 41612 Complementary high current (MH) type power connectors with a 24 (6A) + 7 (15A) mixed contact configuration. The male plug DIN 41612 MH connectors have a 2.54 x 5.08mm pitch and the female socket DIN 41612 MH connectors have a 5.08mm pitch.
Stock number 481-982 is a plug connector with a leading contact at position z32 (15A) with the 15A contacts terminated by 6.3mm blades for 2.5mm2 wire, which accept Faston 250 size receptacles (not shrouded)
Stock number 740-7004 is a plug connector with 6A contacts that terminate through 90° solder tails for PCB mounting
Stock numbers 481-998 and 740-7023 are socket connectors with Faston 250 size blade terminations for the 15A contacts and wire wrap spills (22 square pins, 1mm x 1mm) for the 6A contacts
Stock numbers 865-8159 and 865-8168 are socket connectors with Faston 250 size blade terminations for the 15A contacts and 4.5mm PCB pins for the 6A contacts.

Mixed power connectors, 24-way rated 6A, 7-way rated at 15A
Plug has leading contact at position z32 (15A) with the 15A contacts terminated by 6.3mm blades for 2.5mm2 wire, which accept 250 size receptacles (not shrouded)
Plug 6A contacts terminate through 90° solder tails for PCB mounting
Socket has 250 size blade terminations for the 15A contacts and wire wrap spills (22 square pins, 1mm x 1mm) for the 6A contacts

Harting DIN 41612 High Current Range Connectors

A range of DIN 41612 high current 15, 32 and 48 way male and female indirect edge connectors, ideally suited for use in control cards and PSUs and railway transportation.

Specifikationer
Attribute Value
Number of Contacts 24 + 7
Gender Female
Number of Rows 2/3
Body Orientation Straight
Termination Method Crimp
Type MH
Pitch 3.81 mm, 5.08 mm, 6.5 mm, 10.16 mm
Contact Plating Silver
Current Rating 6A
Contact Material Copper Alloy
Maximum Contact Resistance 8mΩ
Housing Material Thermoplastic
Series 09 06
Voltage Rating 500 V ac
Maximum Operating Temperature +125°C
Minimum Operating Temperature -55°C
12 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
89,44 kr
(exkl. moms)
111,80 kr
(inkl. moms)
Enheter
Per unit
1 - 19
89,44 kr
20 - 74
85,72 kr
75 - 299
73,93 kr
300 - 599
64,11 kr
600 +
60,39 kr
