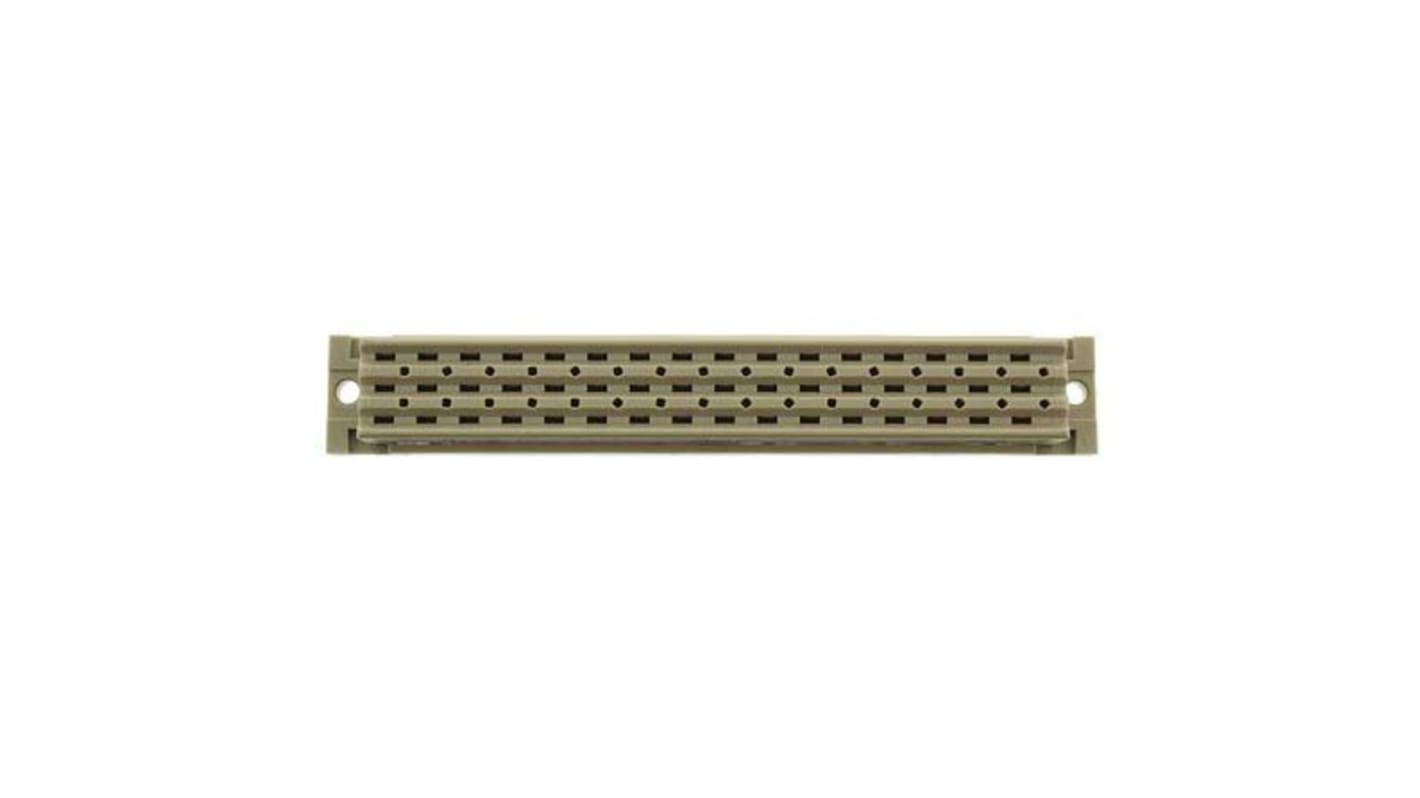

ERNI DIN 41612 48 Way 5.08mm Pitch, Type F Class C2, 3 Row, Straight DIN 41612 Connector, Socket
- RS-artikelnummer:
- 170-6890
- Tillv. art.nr:
- 354741 / 354741-E
- Tillverkare / varumärke:
- ERNI
Tillfälligt slut i lager – restorder för leverans 2024-05-02
Lagt till varukorgen
Pris (ex. moms) Var (i en bricka med 44)
187,236 kr
(exkl. moms)
234,045 kr
(inkl. moms)
| Enheter | Per unit | Per Tray* |
| 44 + | 187,236 kr | 8 238,384 kr |
- RS-artikelnummer:
- 170-6890
- Tillv. art.nr:
- 354741 / 354741-E
- Tillverkare / varumärke:
- ERNI
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
EN60603-2 Type B/C/D/E/F, inverted Q/R
A range of DIN 41612 / IEC 60603-2 connectors with 2.54 mm basic grid.
Indirect connection system
Use in DIN 41494 construction systems (19” technology)
Connection between plug-in cards and backplane wiring
Connection between two PCBs arranged one above the other
Connection to peripheral devices with cable housing
Transfer plug for external interfaces of the wiring plane
Use in DIN 41494 construction systems (19” technology)
Connection between plug-in cards and backplane wiring
Connection between two PCBs arranged one above the other
Connection to peripheral devices with cable housing
Transfer plug for external interfaces of the wiring plane
Note
In the descriptions: M = male connector, F = female connector
Approvals
UL, CSA
Specifikationer
Attribute | Value |
|---|---|
| Number of Contacts | 48 |
| Gender | Female |
| Number of Rows | 3 |
| Body Orientation | Straight |
| Termination Method | Solder |
| Row Loading | 1/2 |
| Type | F |
| Pitch | 5.08mm |
| Contact Plating | Gold |
| Class Rating | C2 |
| Current Rating | 5.5A |
| Contact Material | Copper Alloy |
| Maximum Contact Resistance | 15000mΩ |
| Series | DIN 41612 |
| Maximum Operating Temperature | +125°C |
| Housing Material | PBT |
| Minimum Operating Temperature | -55°C |
