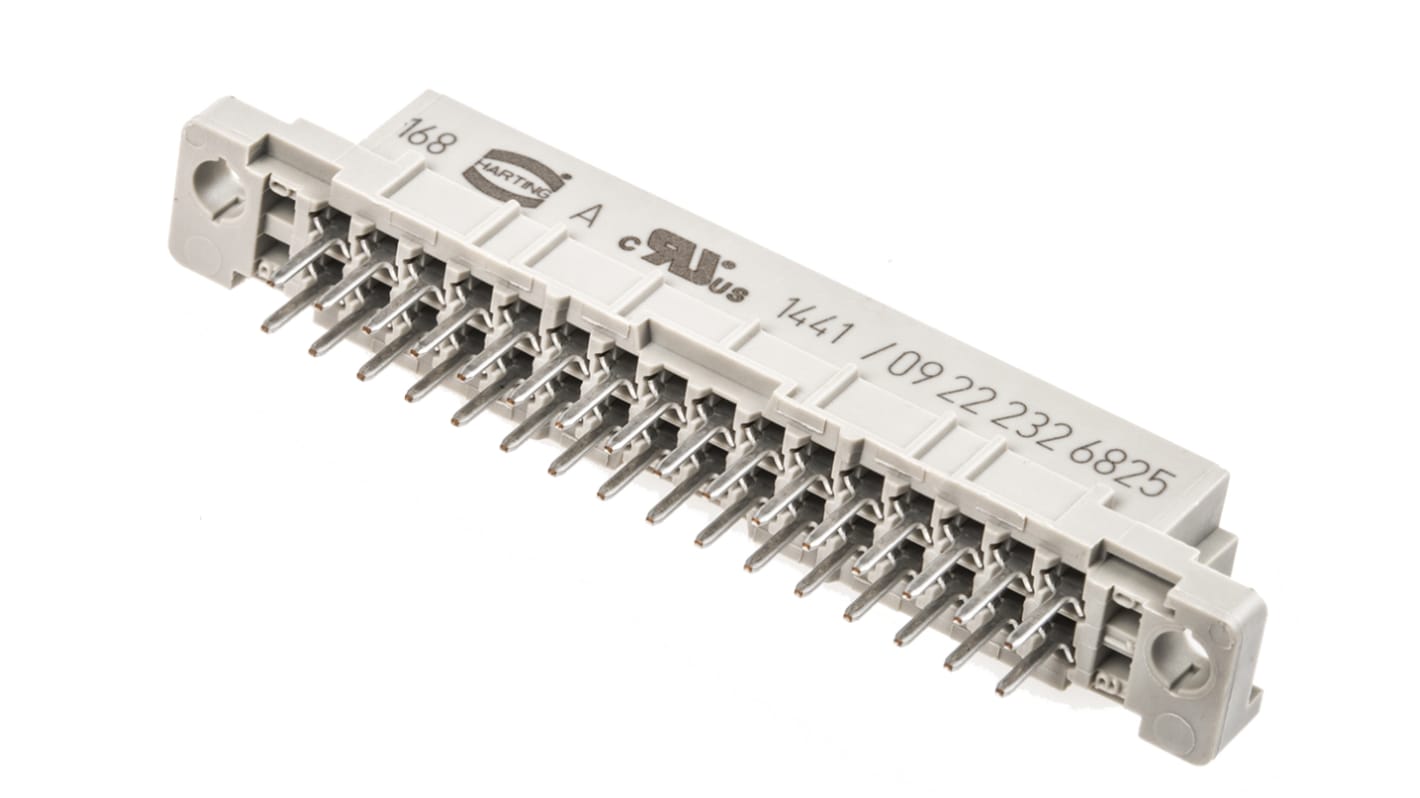

Harting 32 Way 2.54mm Pitch, Type 2B Class C2, 2 Row, Straight DIN 41612 Connector, Socket
- RS-artikelnummer:
- 481-847
- Tillv. art.nr:
- 09222326825
- Tillverkare / varumärke:
- HARTING
50 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
56,01 kr
(exkl. moms)
70,01 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 56,01 kr |
- RS-artikelnummer:
- 481-847
- Tillv. art.nr:
- 09222326825
- Tillverkare / varumärke:
- HARTING
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Harting DIN 41612 Complementary Type 2B Backplane Signal Connectors
Harting DIN 41612 complementary type 2B backplane signal connectors are designed for PCB applications with a maximum of 2A per contact. Hard wearing and durable with a good mating cycle, these DIN 41612 complementary type 2B PCB backplane signal connectors offer an economical solution to many electronic signal connector design applications.
Operating temp -55 to +125 °C
2A max per contact
Test voltage 1kV
Contact resistance up to 20mΩ
Thermoplastic resin - glass fibre filled
Copper alloy contacts
Termination Method - Solder
2A max per contact
Test voltage 1kV
Contact resistance up to 20mΩ
Thermoplastic resin - glass fibre filled
Copper alloy contacts
Termination Method - Solder
DIN41612 - Harting Range
DIN 41612 connectors for interconnection in all 19in Eurocard racking systems.
Specifikationer
Attribute | Value |
|---|---|
| Number of Contacts | 32 |
| Gender | Female |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Termination Method | Solder |
| Row Loading | a/b |
| Type | 2B |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Mounting Type | Through Hole |
| Class Rating | C2 |
| Current Rating | 2A |
