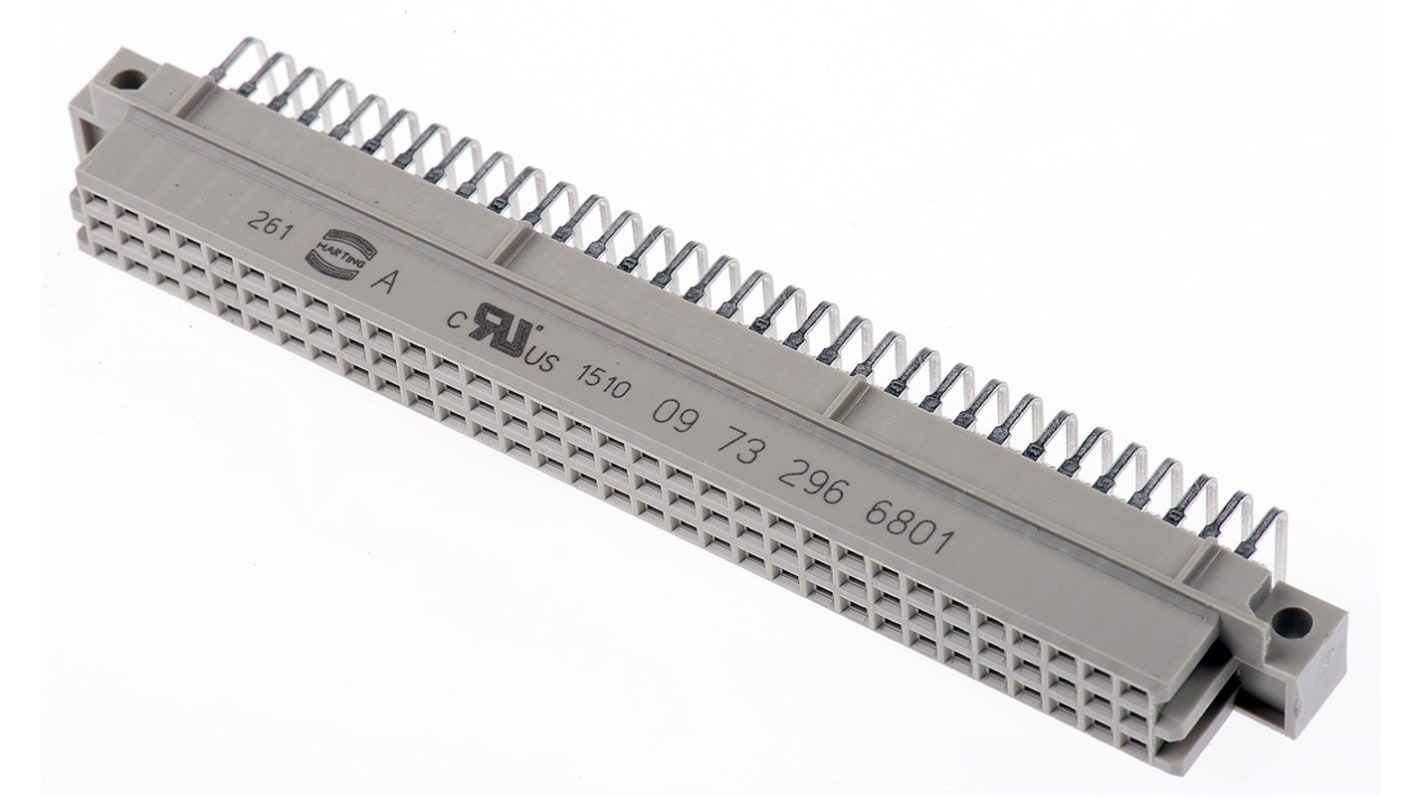

HARTING 96 Way 2.54mm Pitch, Type R Class C2, 3 Row, Right Angle DIN 41612 Connector, Socket
- RS-artikelnummer:
- 470-443
- Tillv. art.nr:
- 09732966801
- Tillverkare / varumärke:
- HARTING
84 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
59,62 kr
(exkl. moms)
74,52 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 19 | 59,62 kr |
| 20 - 74 | 53,72 kr |
| 75 - 299 | 50,76 kr |
| 300 - 599 | 44,64 kr |
| 600 + | 41,79 kr |
- RS-artikelnummer:
- 470-443
- Tillv. art.nr:
- 09732966801
- Tillverkare / varumärke:
- HARTING
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- DE
Produktdetaljer
Reversed Types Q & R Connectors
2-part connectors (UL94-V0) with a true reverse system compatible with B and C versions
Plugs mount onto equipment back planes, those with 4mm solder terminations can also be vertically mounted on PCBs
Sockets have 90° solder connections for horizontal PCB mounting
13mm wire wrap options also available
Plugs mount onto equipment back planes, those with 4mm solder terminations can also be vertically mounted on PCBs
Sockets have 90° solder connections for horizontal PCB mounting
13mm wire wrap options also available
DIN41612 - Harting Range
DIN 41612 connectors for interconnection in all 19in Eurocard racking systems.
Specifikationer
Attribute | Value |
|---|---|
| Number of Contacts | 96 |
| Gender | Female |
| Number of Rows | 3 |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Row Loading | a/b/c |
| Type | R |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Mounting Type | Through Hole |
| Class Rating | C2 |
| Current Rating | 2A |
