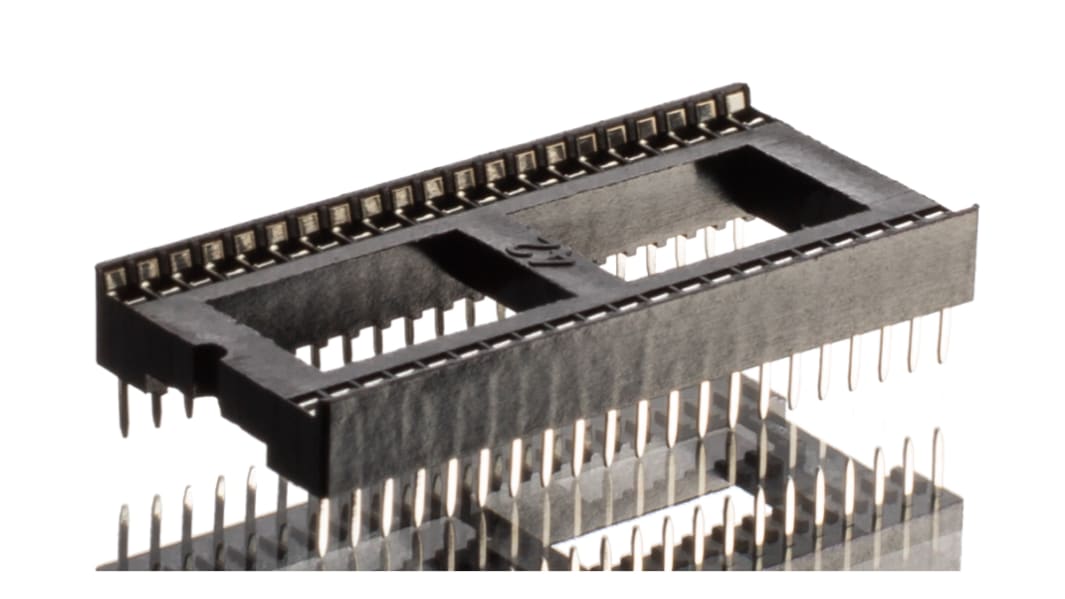

Winslow 1.77mm Pitch Vertical 42 Way, Through Hole Stamped Pin Open Frame IC Dip Socket, 10A

  • RS-artikelnummer 228-0084
  • Tillv. art.nr W3142/607TRC
  • Tillverkare / varumärke Winslow
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TW
Produktdetaljer

Shrink DIP Sockets

Stamped and turned pin, low insertion force Shrink DIP sockets with a pin spacing of 0.07in
The stamped pins being tin-plated phosphor bronze, the turned pins having a gold over nickel-plated inner contact with a tin-plated brass outer shell

Specifikationer
Attribute Value
Number of Contacts 42
Mounting Type Through Hole
Pin Type Stamped
Pitch 1.77mm
Row Width 15.24mm
Frame Type Open Frame
Termination Method Solder
Contact Plating Tin
Current Rating 10A
Orientation Vertical
Length 37.33mm
Width 5.05mm
Depth 17.78mm
Dimensions 37.33 x 5.05 x 17.78mm
Housing Material PBT
Contact Material Phosphor Bronze
Minimum Operating Temperature -65°C
Maximum Operating Temperature +150°C
992 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Tube of 16)
19,885 kr
(exkl. moms)
24,856 kr
(inkl. moms)
Enheter
Per unit
Per Tube*
16 - 224
19,885 kr
318,16 kr
240 - 784
18,883 kr
302,128 kr
800 - 1584
18,354 kr
293,664 kr
1600 - 3984
16,079 kr
257,264 kr
4000 +
14,657 kr
234,512 kr
