Chauvin Arnoux CA 1823 Wired Digital Thermometer for Multipurpose Use, PT100, PT1000 Probe, 1 Input(s), +400 (PT100)
- RS-artikelnummer:
- 136-8252
- Tillv. art.nr:
- P01654823
- Tillverkare / varumärke:
- Chauvin Arnoux
1 I lager för avsändande samma dag
8 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Varje
2 745,94 kr
(exkl. moms)
3 432,42 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 2 745,94 kr |
- RS-artikelnummer:
- 136-8252
- Tillv. art.nr:
- P01654823
- Tillverkare / varumärke:
- Chauvin Arnoux
Datablad
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- FR
Produktdetaljer

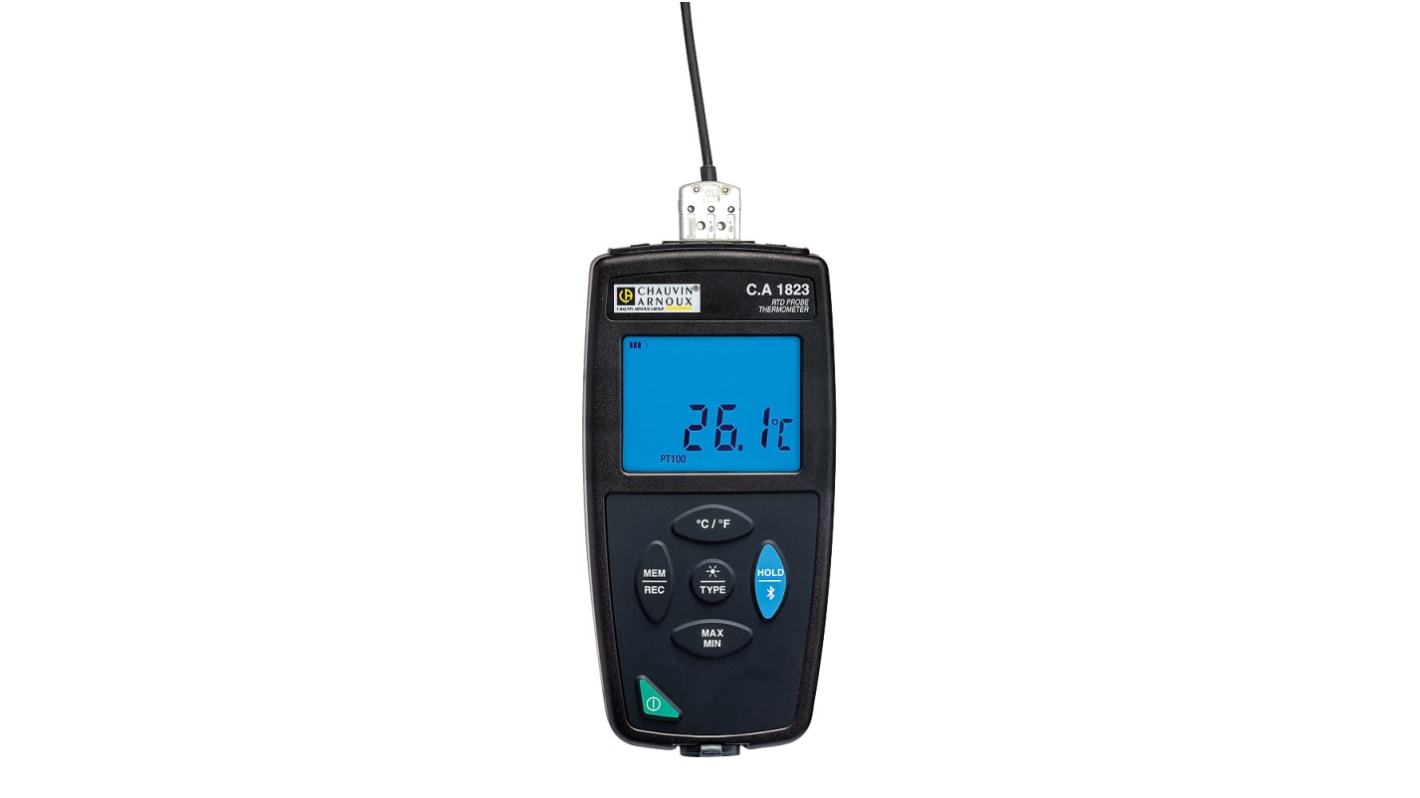

Chauvin Arnoux C.A 1823 RTD Thermometer 1 Input Pt100 Pt1000
Chauvin Arnoux C.A 1823 is a single-input, data logging digital thermometer which allows you to log temperature readings from a single attached temperature probe. Compact and magnetised for fixed or portable use, the C.A 1823 is an accurate, versatile, long-lasting thermometer. Featuring a wide backlit display, it offers useful functions for work in the field, such as Min, Max, Hold and spot, or programmable recording possibilities. Communicating via USB or Bluetooth, it is possible to program alarms and recording triggers on thresholds by the Data Logger Transfer software.
Suitable for use with Pt100 or Pt1000 sensors.
Suitable for use with Pt100 or Pt1000 sensors.
Feature and Benefits
• Compact and magnetised for fixed or portable use
• Wide backlit display
• Recording up to 1 million points
• Communicating via USB or Bluetooth
• Alarms and recording trigger on alarms
• Battery life of up to 3 years
• IP54 casing
• 3-pole flat-pin connector
• Data Logger Transfer software with automatic report generation
• 1 input for Pt100 or Pt1000 sensors
• Measurement Range: -100°C to +400°C
• Dimensions: 150 x 72 x 32 mm
• Weight: 260 g with batteries
Supplied with
Bag, 3 x 1.5 V AA alkaline batteries, USB cable, test report and quick start-up guide
Specifikationer
Attribute | Value |
|---|---|
| Absolute Maximum Temperature Measurement | +400 (PT100) °C, +400 (PT1000) °C, +752 (PT100) °F, +752 (PT1000) °F |
| Model Number | CA 1823 |
| Probe Type | PT100, PT1000 |
| Thermometer Type | Wired |
| Application | Multipurpose |
| Number of Temperature Inputs | 1 |
| Resolution | 0.1 °F, 0.1 °C |
| Data Storage | Yes |
| Length | 150mm |
| Width | 72mm |
| Height | 32mm |
| Minimum/Maximum Recordings | Yes |
| Temperature Scale | Centigrade, Fahrenheit |
| Weight | 260g |
| Battery Type | AA |
