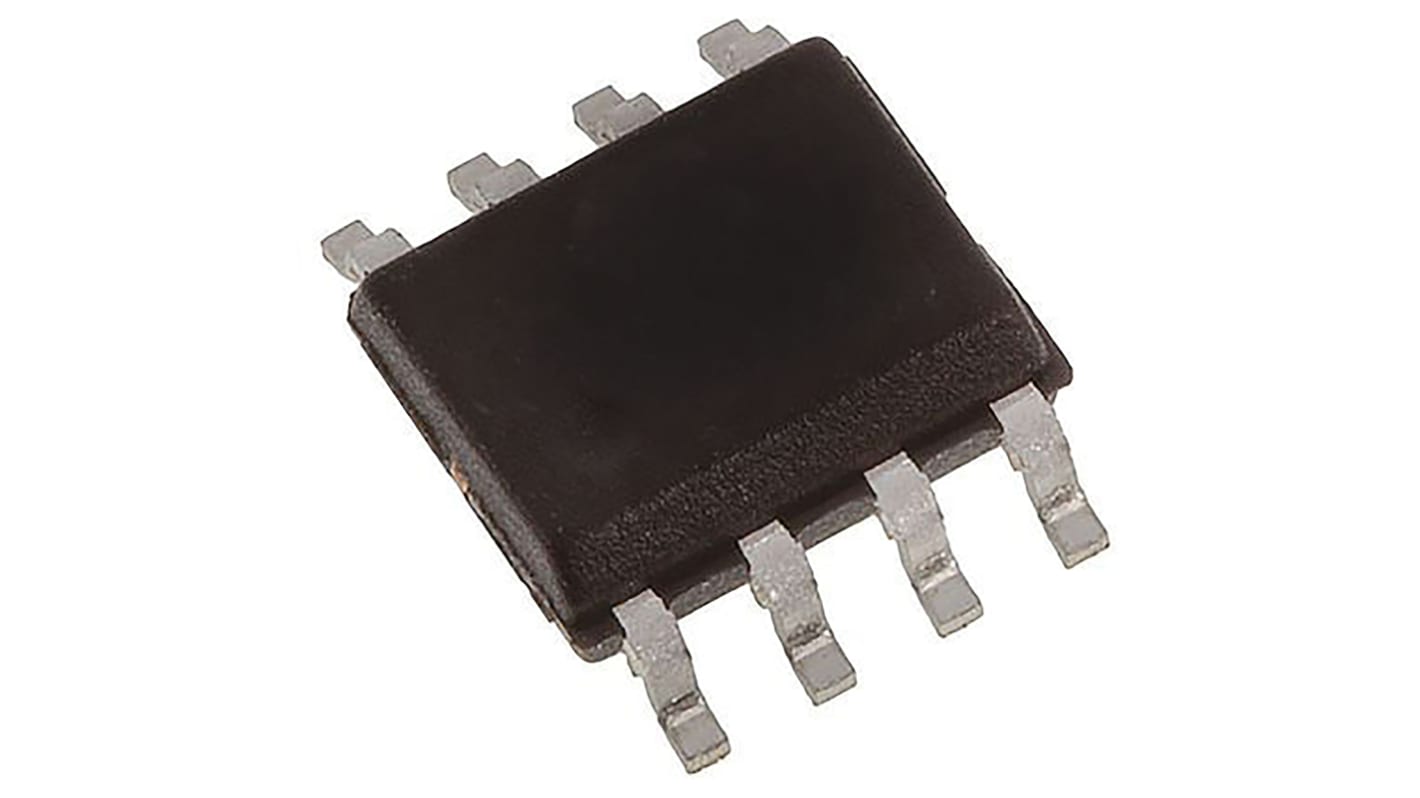

MCP4161-502E/SN, Digital Potentiometer 5kΩ 257-Position Linear Serial-SPI 8 Pin, SOIC

  • RS-artikelnummer 724-0154
  • Tillv. art.nr MCP4161-502E/SN
  • Tillverkare / varumärke Microchip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

MCP414x/416x/424x/426x Digital Potentiometers

The Microchip MCP413x, MCP415x, MCP423x and MCP425x range of devices are Digital Potentiometers with a SPI interface and EEPROM memory.

Featured is WiperLock Technology, providing a method of ’locking’ the wiper configuration. To unlock a high-voltage command is required (>8.5 V), protecting the setting during normal operation.

7-bit (129 steps) and 8-bit (257 steps) versions are available in various RAB resistance options from 5 kΩ to 100 kΩ. Further variants also give the choice between Rheostat and Potentiometer pinouts, Single and Dual Resistor Network options are also available.

Features

Zero Scale to Full-Scale Wiper Operation
Low Wiper Resistance: 75 Ω (typical)
Low Temperature Coefficient: Absolute (Rheostat) 50 ppm, Ratiometric (Potentiometer) 15 ppm (typical)
Automatic Recall of Saved Wiper Setting
WiperLock Technology
SPI Serial Interface
Resistor Network Terminal Disconnect Feature
Brown-Out Reset Protection: 1.5 V (typical)
Serial Interface Inactive Current: 2.5 μA (typical)
High-Voltage Tolerant Digital Inputs: Up to 12.5 V
Supports Split Rail Applications
Internal Weak Pull-Up on all Digital Inputs
Wide Operating Voltage: 1.8 V to 5.5 V
Wide Bandwidth (-3 dB) Operation: 2 MHz for 5.0 kΩ device (typical)

Model Variants

Potentiometer Wiper Configuration: MCP4141, MCP4161, MCP4241, MCP4261
Rheostat Wiper Configuration: MCP4142, MCP4162, MCP4242, MCP4262

Single Resistor Network: MCP4141, MCP4142, MCP4161, MCP4162
Dual Resistor Network: MCP4241, MCP4242, MCP4261, MCP4262

7-bit, 128 Resistors (129 steps): MCP4141, MCP4142, MCP4241, MCP4142
8-bit, 256 Resistors (257 steps): MCP4161, MCP4162, MCP4261, MCP4162

Digital Potentiometer - Microchip

Specifikationer
Attribute Value
Control Interface Serial-SPI
Resistance Value 5kΩ
Number of Positions 257
Taper Type Linear
Memory Type Non-Volatile
Number of Pots per Package 1
Mounting Type Surface Mount
Package Type SOIC
Pin Count 8
Power Supply Type Single
Typical Single Supply Voltage 1.8 → 5.5 V
Dimensions 4.9 x 3.9 x 1.25mm
Height 1.25mm
Maximum Operating Temperature +125 °C
Length 4.9mm
Width 3.9mm
Minimum Operating Temperature -40 °C
8 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 2)
8,375 kr
(exkl. moms)
10,469 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
2 - 8
8,375 kr
16,75 kr
10 - 22
8,015 kr
16,03 kr
24 - 98
7,65 kr
15,30 kr
100 +
7,24 kr
14,48 kr
Förpackningsalternativ:
