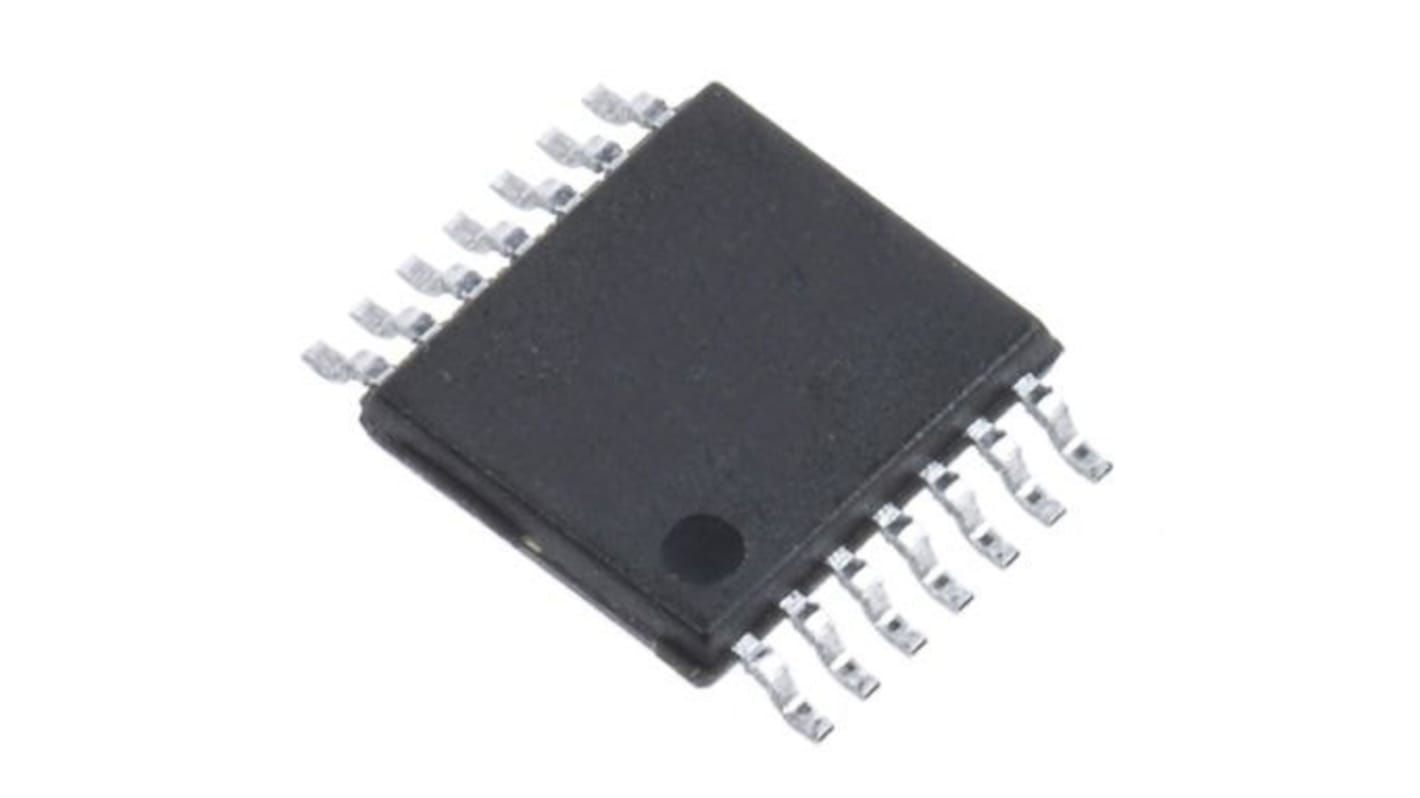

MAX5455EUD+, Digital Potentiometer 100kΩ 256-Position Linear 2-Channel Up/Down 14 Pin, TSSOP

RS-artikelnummer:: 191-3377
Tillv. art.nr:: MAX5455EUD+
Tillverkare / varumärke:: Maxim Integrated

MAX5455EUD+, Digital Potentiometer 100kΩ 256-Position Linear 2-Channel Up/Down 14 Pin, TSSOP

Se kategorien

165 I lager för avsändande samma dag

Lagt till varukorgen

Se varukorgen

Pris (ex. moms) Var (i ett paket med 5)

69,778 kr

(exkl. moms)

87,222 kr

(inkl. moms)

Enheter	Per unit	Per Pack*
5 - 5	69,778 kr	348,89 kr
10 - 20	66,074 kr	330,37 kr
25 - 95	54,54 kr	272,70 kr
100 +	53,786 kr	268,93 kr

RS-artikelnummer:: 191-3377
Tillv. art.nr:: MAX5455EUD+
Tillverkare / varumärke:: Maxim Integrated

Datablad

Datasheet - MAX5455EUD+

Lagstiftning och ursprungsland

Produktdetaljer

Small-Footprint Packages
10-Pin μMAX (MAX5450/MAX5452/MAX5454)
14-Pin TSSOP (MAX5451/MAX5453/MAX5455)
256-Tap Positions
Independent Up/Down Potentiometer Controls (MAX5451/MAX5453/MAX5455)
Ultra-Low 0.1μA Supply Current
+2.7V to +5.5V Single-Supply Operation
Low 35ppm/°C End-to-End Temperature Coefficient
Power-On Reset Sets Wiper to Midscale (Position 127)
Glitchless Switching Between the Resistor Taps
10kΩ, 50kΩ, 100kΩ Resistance Values
Applications
Adjustable Linear Regulators
Adjustable Voltage Reference
Impedance Matching
LCD Screen Adjustment
Low-Drift Programmable-Gain Amplifier (PGA)
Mechanical Potentiometer Replacement
Programmable Filters, Delays, Time Constants
Volume Control

Specifikationer

Attribute	Value
Control Interface	Up/Down
Resistance Value	100kΩ
Number of Positions	256
Taper Type	Linear
Number of Pots per Package	2
Mounting Type	Surface Mount
Package Type	TSSOP
Pin Count	14
Power Supply Type	Single
Typical Single Supply Voltage	2.7 to 5.5 V
Dimensions	5.1 x 4.5 x 0.95mm
Height	0.95mm
Length	5.1mm
Maximum Operating Temperature	+85 °C
Width	4.5mm
Minimum Operating Temperature	-40 °C
