- RS-artikelnummer:
- 190-5279
- Tillv. art.nr:
- MAX5400EKA+T
- Tillverkare / varumärke:
- Maxim Integrated
- RS-artikelnummer:
- 190-5279
- Tillv. art.nr:
- MAX5400EKA+T
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TH
Produktdetaljer

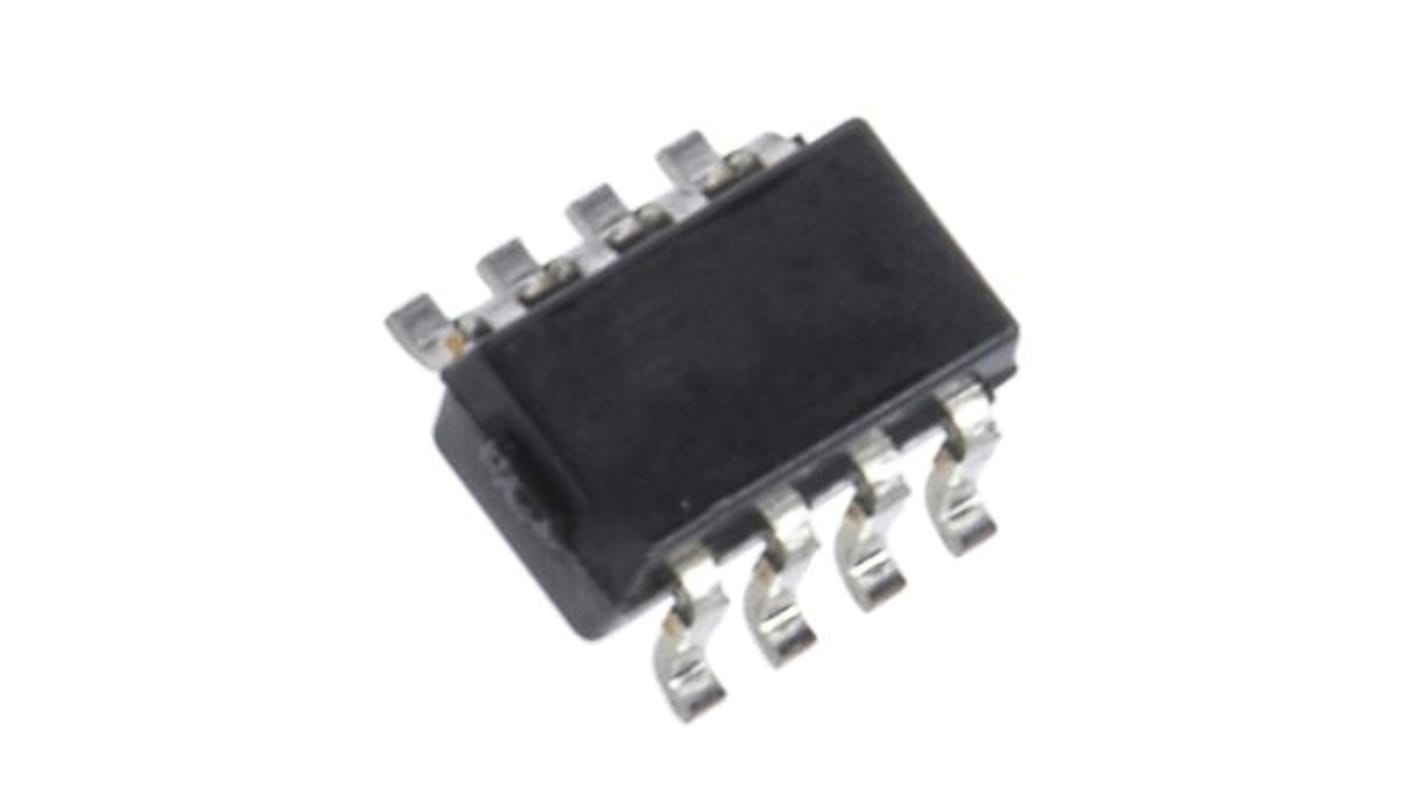

Miniature 8-Pin SOT23 (3mm x 3mm)
256 Tap Positions
Ultra-Low 0.1μA Supply Current
Single-Supply Operation: +2.7V to +5.5V
Low Ratiometric Temperature Coefficient: 5ppm/°C
Power-On Reset: Wiper Goes to Midscale (Position 128)
Glitchless Switching Between the Resistor Taps
3-Wire SPI™-Interface Compatible
50kΩ/100kΩ Resistor Values
Applications
Adjustable Voltage Reference
Low-Drift Programmable-Gain Amplifiers
Mechanical Potentiometer Replacements
256 Tap Positions
Ultra-Low 0.1μA Supply Current
Single-Supply Operation: +2.7V to +5.5V
Low Ratiometric Temperature Coefficient: 5ppm/°C
Power-On Reset: Wiper Goes to Midscale (Position 128)
Glitchless Switching Between the Resistor Taps
3-Wire SPI™-Interface Compatible
50kΩ/100kΩ Resistor Values
Applications
Adjustable Voltage Reference
Low-Drift Programmable-Gain Amplifiers
Mechanical Potentiometer Replacements
Specifikationer
Attribute | Value |
---|---|
Control Interface | 3-Wire SPI |
Resistance Value | 50kΩ |
Number of Positions | 256 |
Taper Type | Linear |
Memory Type | Volatile |
Number of Pots per Package | 1 |
Mounting Type | Surface Mount |
Package Type | SOT-23 |
Pin Count | 8 |
Power Supply Type | Single |
Typical Single Supply Voltage | 2.7 to 5.5 V |
Dimensions | 3 x 1.75 x 1.3mm |
Height | 1.3mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Length | 3mm |
Width | 1.75mm |
