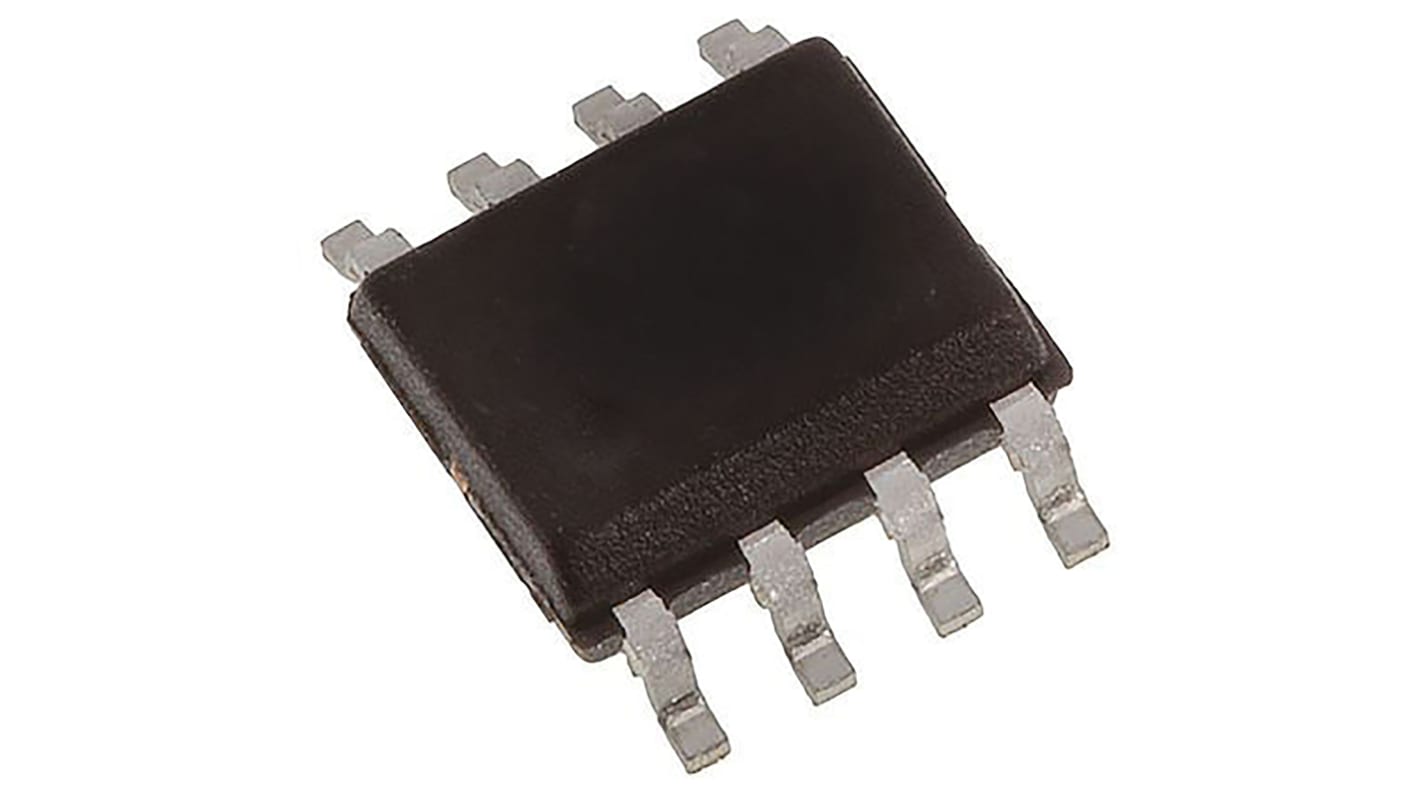

INA154U Texas Instruments, Differential Amplifier 8-Pin SOIC

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Differential Amplifiers, Texas Instruments

Differential Amplifiers are operational amplifiers configured to amplify differential input signals but to supress or reject common-mode signals; they incorporate on-chip resistors to define the differential gain.

Instrumentation Amplifiers, Texas Instruments

Instrumentation amplifiers are composite differential amplifier blocks generally incorporating a classic three operational amplifier configuration. They provide high input impedance, very high common-mode rejection and allow differential gain to be accurately set via internal or external resistors. Differential amplifiers offer low DC offset and drift coupled with high open loop gain and low noise and are frequently used in high-precision test and measurement applications and electrically noisy environments.

Specifikationer
Attribute Value
Power Supply Type Dual
Typical Dual Supply Voltage ±15V
Maximum Input Offset Voltage 0.75mV
Maximum Input Resistance 0.05MΩ
Maximum Voltage Gain 0dB
Minimum CMRR 80dB
Number of Channels per Chip 1
Mounting Type Surface Mount
Package Type SOIC
Pin Count 8
Length 4.9mm
Dimensions 4.9 x 3.91 x 1.58mm
Height 1.58mm
Maximum Operating Temperature +85 °C
Width 3.91mm
Minimum Operating Temperature -40 °C
Tillfälligt slut i lager – restorder för leverans 2020-12-09
Pris (ex. moms) Each (In a Tube of 75)
23,377 kr
(exkl. moms)
29,221 kr
(inkl. moms)
Enheter
Per unit
Per Tube*
75 +
23,377 kr
1 753,275 kr
