FTDI Chip, 5 V TTL Wire End USB to UART Cable - TTL-232R-5V-WE

  • RS-artikelnummer 687-7786
  • Tillv. art.nr TTL-232R-5V-WE
  • Tillverkare / varumärke FTDI Chip
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

FTDI Chip USB To UART Cable

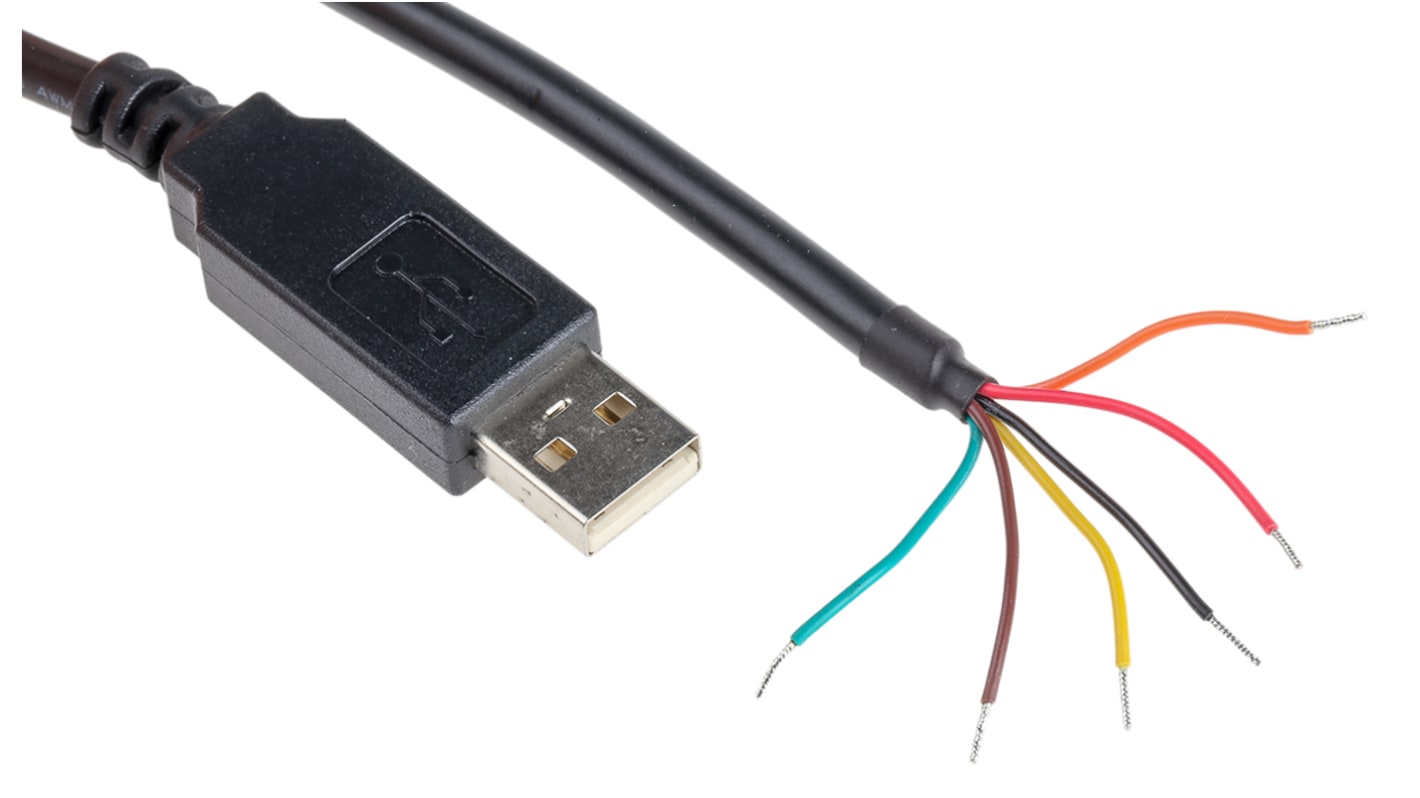

The FTDI chip USB to UART cable is a fast and simple way to connect devices with a TTL level serial interface to USB. It is available with TTL logic level of 5V. Each cable contains a small internal electronic circuit board, utilising the FT232R, encapsulated into the USB connector at the end of the cable. The cable has a gauge of 24AWG and diameter of 5mm. They are un-terminated, bare and tinned wires. The circuit is powered from the USB using 5V power pins and any VCC connection, always at 5VDC. These cables are supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux.

Features and Benefits

Connect directly to a microcontroller UART or I/O pins
Data transfer rate is up to 3Mbps
Low USB bandwidth consumption
Maximum output of 250mA on VCC
Operating temperature ranges between -40°C and 85°C
Provides a USB to TTL Serial interface with various end connectors
Powered from USB connector
Six core cable with length of 1.8m
UHCI/OHCI/EHCI host controller compatible
Unique serial number attached, used for security purposes while transferring files via cable
USB 2.0 full speed compatible
Various UART-end connector options available

Applications

Communication
Embedded system

Certifications

CE
FCC approved

1806 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
187,46 kr
(exkl. moms)
234,32 kr
(inkl. moms)
Enheter
Per unit
1 - 9
187,46 kr
10 - 19
169,37 kr
20 - 49
160,89 kr
50 - 99
156,24 kr
100 +
142,80 kr
