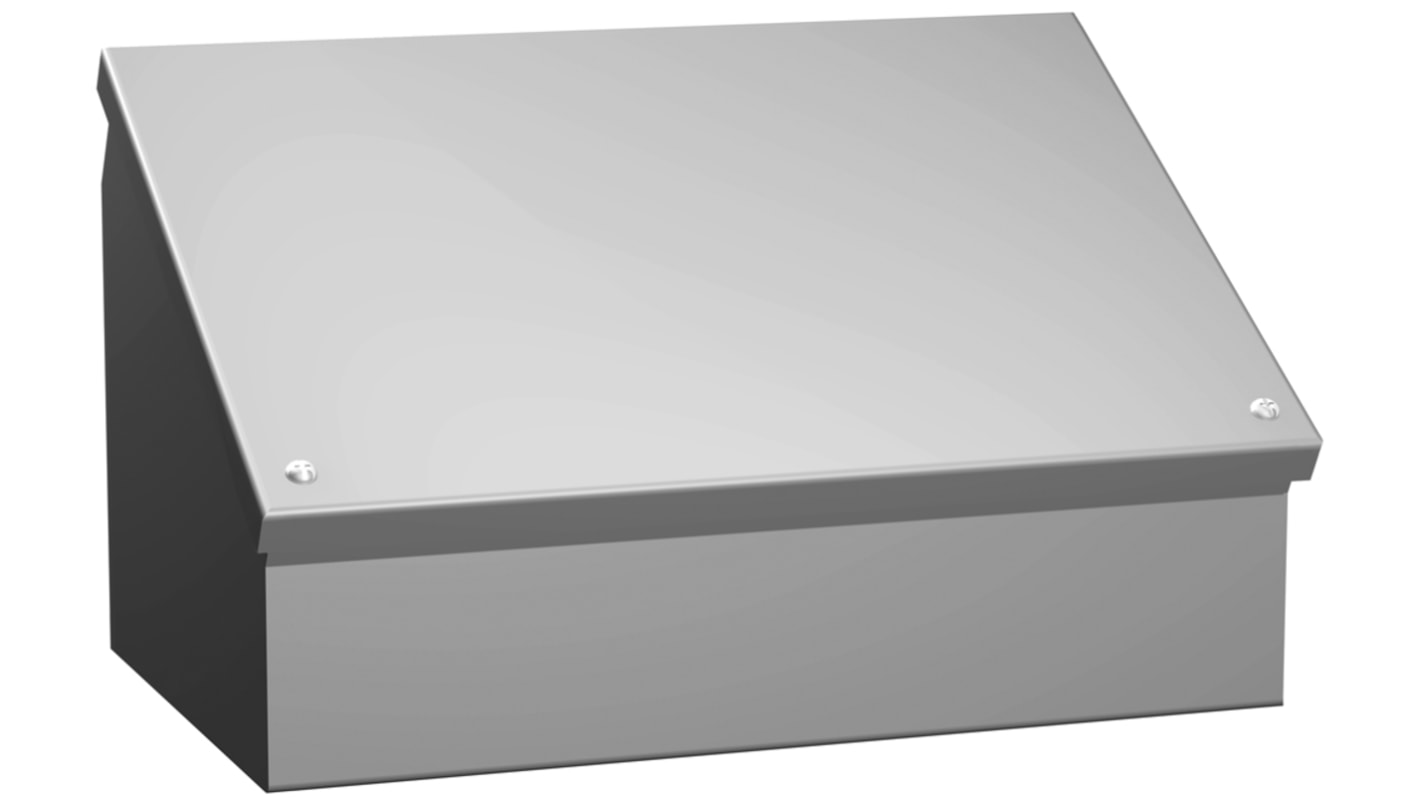

Hammond Sloped Front, Steel, 305 x 406 x 233mm Desktop Enclosure, Grey

  • RS-artikelnummer 868-1360
  • Tillv. art.nr 1488HJ9
  • Tillverkare / varumärke Hammond
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CA
Produktdetaljer

Hammond 1488 Series Hinged Cover Consolets

The 1488 series of hinged cover consolets by Hammond are designed to be used as hydraulic, pneumatic control, electric or instrument enclosures.
The series offer protection for applications against dust, oil, dirt, water and are ideal for surface mounting/pedestal to provide the necessary 30° or 60° control slopes.

Features and Benefits

• Sizes A to E are 20 gauge 0.91 mm thick steel
• Sizes F to J are 18 gauge 1.21 mm thick steel
• Ground stud and bonding stud provided
• Finished in ANSI 61 grey powder coating
• Captive cover screws thread into sealed wells
• Formed 14 gauge steel
• RoHS compliant

Standards

UL 508 Type 12, 13
CSA Type 12, 13
Complies with NEMA Type 12, 13 and IEC 60529, IP54

Specifikationer
Attribute Value
Body Material Steel
External Length 305 mm
External Width 406 mm
External Height 233 mm
External Dimensions 305 x 406 x 233mm
Sloped Front Yes
Colour Grey
Series 1488
Enclosure Rating IP54
Standards Met CE, CSA Type 12 and 13, IEC 60529, JIC standard EGP-1-1967, NEMA Type 12 and 13, RoHS, UL 508 Type 12 and 13
Special Features Oil-Resistant Gasket & Adhesive
6 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
2 432,90 kr
(exkl. moms)
3 041,12 kr
(inkl. moms)
Enheter
Per unit
1 - 4
2 432,90 kr
5 - 9
2 311,26 kr
10 - 24
2 189,62 kr
25 - 49
2 067,97 kr
50 +
1 946,33 kr
