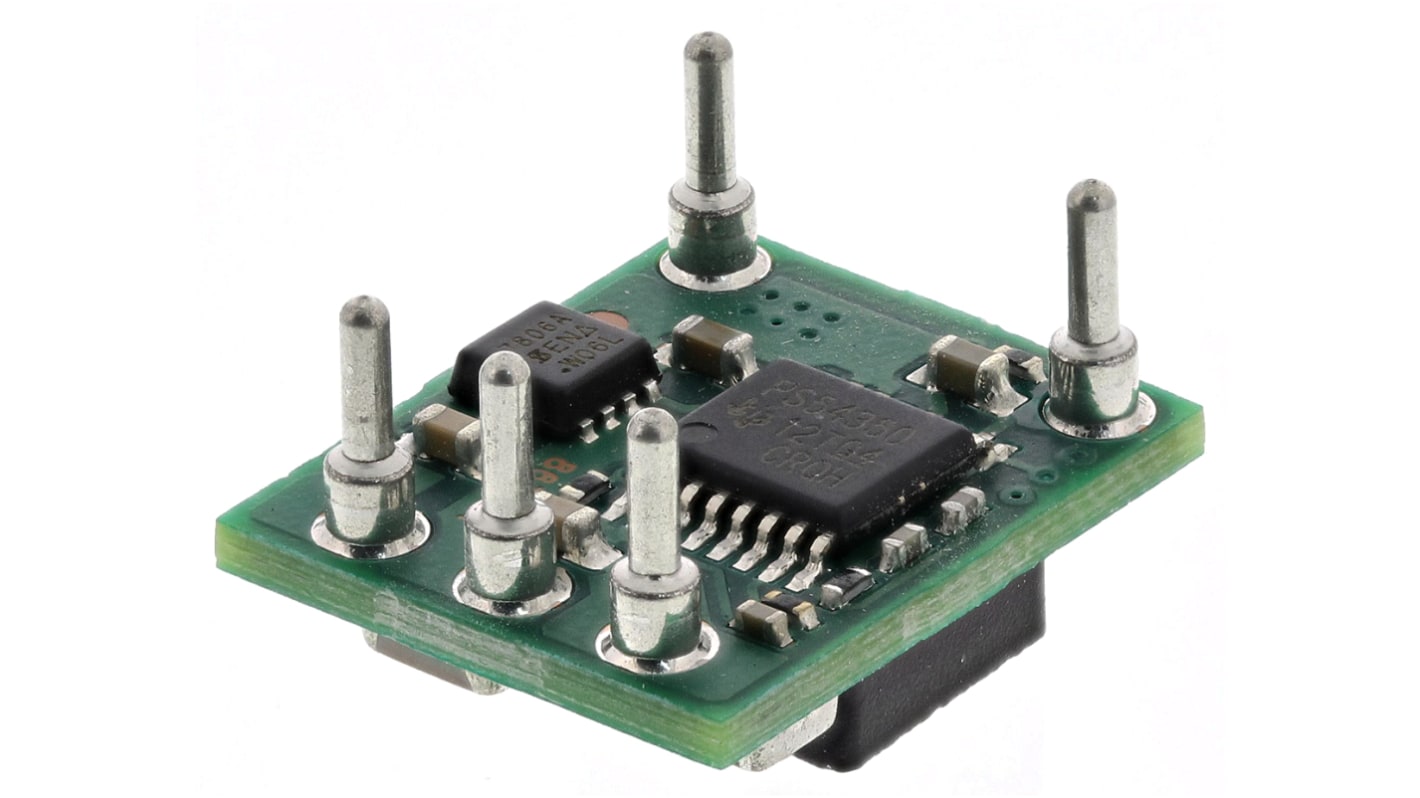

Texas Instruments PTH08080WAD, DC-DC Power Supply Module 18 V Input, 5-Pin, DIP Module

  • RS-artikelnummer 661-7944
  • Tillv. art.nr PTH08080WAD
  • Tillverkare / varumärke Texas Instruments
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Non-Isolated Step-Down (Buck) Power Modules, PTH Series, Texas Instruments

Texas Instruments DC-to-DC Converter Non-Isolated Step-Down Power Modules with adjustable output voltage.

Non-Isolated Power Modules, Texas Instruments

Non-Isolated Power Modules are supporting designs which require superior EMI protection and thermal performance, high output current, high output voltage and more. The family of SIMPLE SWITCHER® power modules provides an all-in-one power solution to meet extreme operating conditions or simply a standard feature set, in a small, easy-to-use package.

Integrated shielded inductor
Precision enable, soft-start, and tracking for sequencing
Best-in-class thermal performance
Pin-to-pin compatible modules for different load currents
Easy-to-use packaging
Passes EN55022 (CISPR22) Class B Radiated and Conducted EMI Standard

Specifikationer
Attribute Value
Number of Outputs 1
Mounting Type Through Hole
Package Type DIP Module
Pin Count 5
Dimensions 15.24 x 12.7 x 7.93mm
Height 7.93mm
Length 15.24mm
Maximum Input Voltage 18 V
Maximum Operating Temperature +85 °C
Minimum Input Voltage 4.5 V
Width 12.7mm
Minimum Operating Temperature -40 °C
27 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
79,41 kr
(exkl. moms)
99,26 kr
(inkl. moms)
Enheter
Per unit
1 - 4
79,41 kr
5 - 9
71,04 kr
10 - 24
68,86 kr
25 - 49
68,14 kr
50 +
67,42 kr
Förpackningsalternativ:
