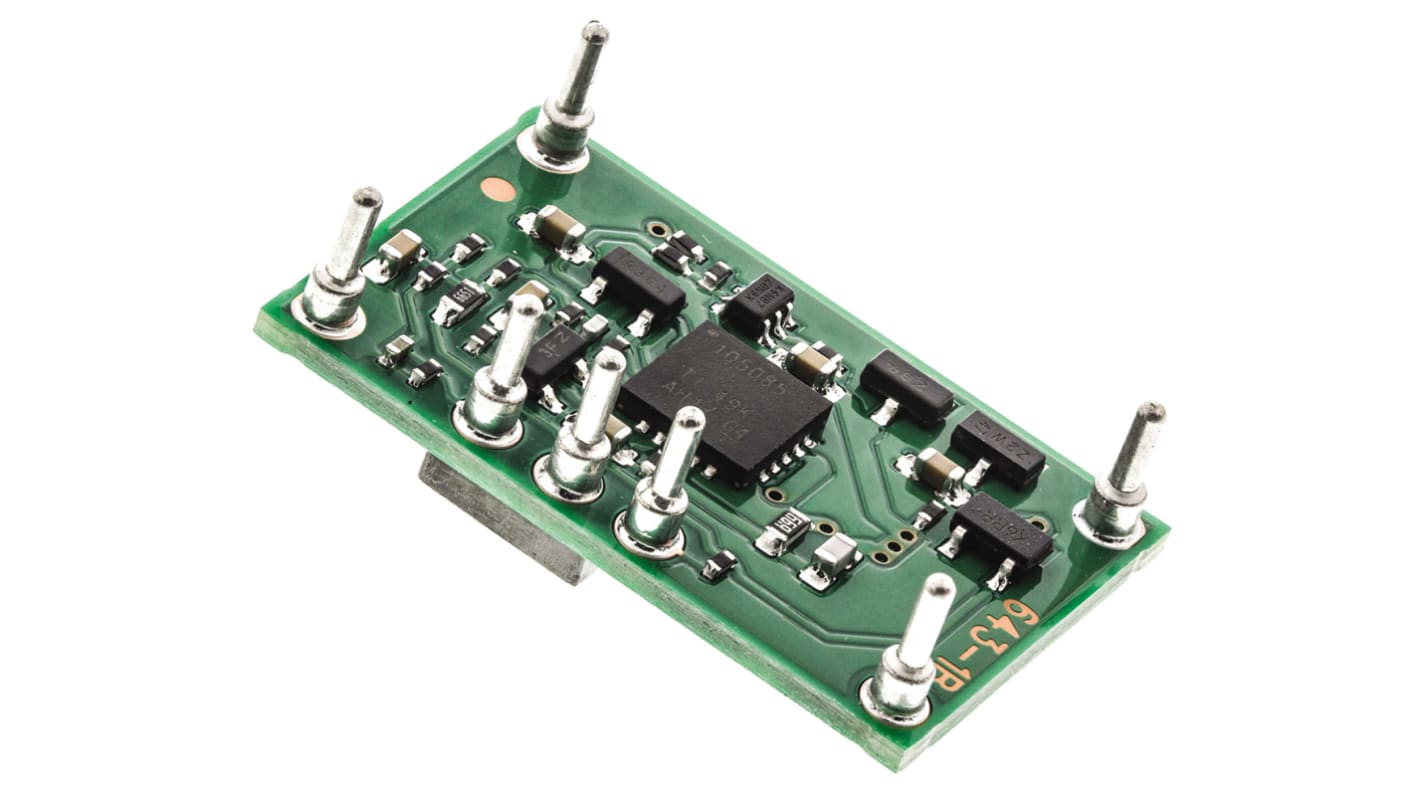

Texas Instruments PTN78060HAH, DC-DC Power Supply Module 3A 36 V Input, 300 kHz 7-Pin, DIP Module

  • RS-artikelnummer 162-5866
  • Tillv. art.nr PTN78060HAH
  • Tillverkare / varumärke Texas Instruments
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): US
Produktdetaljer

Non-Isolated Step-Down (Buck) Power Modules, PTN, PTR, PTV, TPS Series, Texas Instruments

A range of PCB-mounting Step-down (Buck) switching voltage regulator modules from Texas Instruments. These products offer highly efficient space-saving solutions for low-power step-down DC-DC applications where isolation is not required.

Non-Isolated Power Modules, Texas Instruments

Non-Isolated Power Modules are supporting designs which require superior EMI protection and thermal performance, high output current, high output voltage and more. The family of SIMPLE SWITCHER® power modules provides an all-in-one power solution to meet extreme operating conditions or simply a standard feature set, in a small, easy-to-use package.

Integrated shielded inductor
Precision enable, soft-start, and tracking for sequencing
Best-in-class thermal performance
Pin-to-pin compatible modules for different load currents
Easy-to-use packaging
Passes EN55022 (CISPR22) Class B Radiated and Conducted EMI Standard

Specifikationer
Attribute Value
Maximum Output Current 3A
Number of Outputs 1
Maximum Switching Frequency 300 Khz
Line Regulation ±10 mV
Load Regulation ±10 mV
Mounting Type Through Hole
Package Type DIP Module
Pin Count 7
Dimensions 25.27 x 15.75 x 8.75mm
Height 8.75mm
Length 25.27mm
Maximum Input Voltage 36 V
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -40 °C
Width 15.75mm
Minimum Input Voltage 15 V
Pris (ex. moms) Each (In a Bag of 36)
238,644 kr
(exkl. moms)
298,305 kr
(inkl. moms)
Enheter
Per unit
Per Bag*
36 +
238,644 kr
8 591,184 kr
