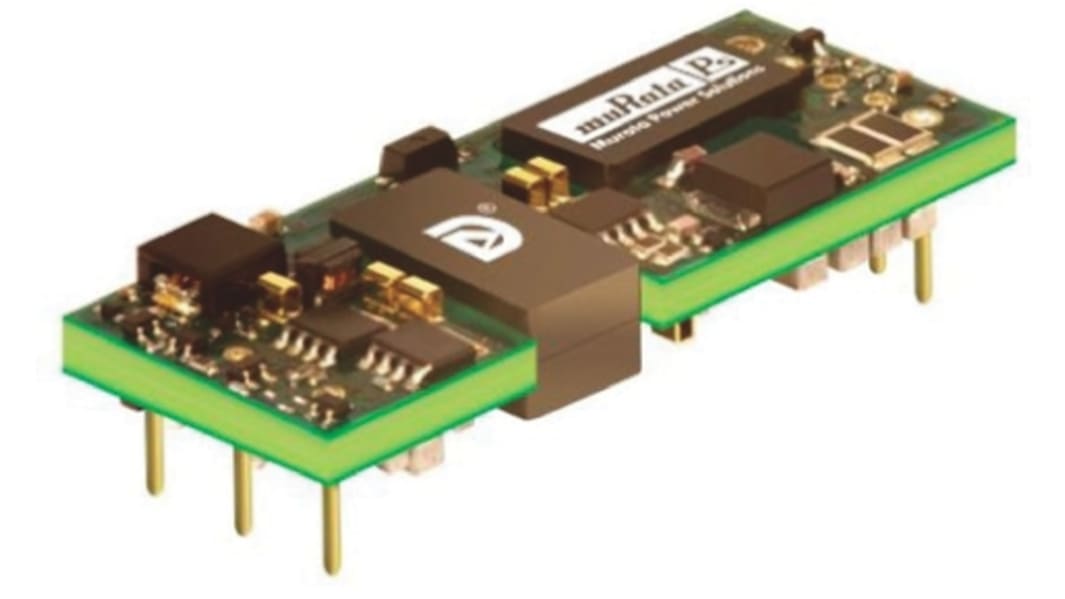

Murata Power Solutions UWE DC-DC Converter, 12V dc/ 6A Output, 9 → 36 V dc Input, 72W, Through Hole, +85°C Max
- RS-artikelnummer:
- 725-6427
- Tillv. art.nr:
- UWE-12/6-Q12P-C
- Tillverkare / varumärke:
- Murata Power Solutions
Tillfälligt slut i lager – restorder för leverans 2025-01-13
Lagt till varukorgen
Pris (ex. moms) Varje
785,38 kr
(exkl. moms)
981,72 kr
(inkl. moms)
Enheter | Per unit |
1 - 4 | 785,38 kr |
5 - 9 | 761,86 kr |
10 - 24 | 738,23 kr |
25 - 49 | 714,71 kr |
50 + | 691,19 kr |
- RS-artikelnummer:
- 725-6427
- Tillv. art.nr:
- UWE-12/6-Q12P-C
- Tillverkare / varumärke:
- Murata Power Solutions
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Murata 66W to 75W Single Output Regulated Isolated DC-DC Converter - UWE Series
66W to 75W isolated DC to DC converters with single output and compact eighth brick package that can be plugged directly into quarter brick pinouts. The high efficiency of these 66W to 75W isolated DC to DC converters reduces heat buildup, enabling "no fan" operation. These 66W to 75W isolated DC to DC converters have low on-resistance FETs, planar magnetics and heavy copper PC boards and deliver low output noise, tight line/load regulation, stable no load operation and fast load step response. Suitable applications for these DC to DC converters include battery powered, telecom or portable applications.
Industry standard eighth brick package with 0.9" x 2.3" x 0.38" outline
Wide 4:1 input power range
Synchronous rectification enabes high efficiency and low power dissipation
Low output noise
Stable no-load operation
Extensive self protection, overtemperature and overload features with no output reverse conduction
On/Off control, trim and remote sense functions
Pre-bias operation for startup protection
Meets EN55022 and CISPR22 class B with external filter
Wide 4:1 input power range
Synchronous rectification enabes high efficiency and low power dissipation
Low output noise
Stable no-load operation
Extensive self protection, overtemperature and overload features with no output reverse conduction
On/Off control, trim and remote sense functions
Pre-bias operation for startup protection
Meets EN55022 and CISPR22 class B with external filter
Note
MTBF to MIL-HDBK-217
For information on temperature derating please see datasheet on website
For information on temperature derating please see datasheet on website
Standards
UL/cUL 60950-1, CSA-C22.2 No.60950-1, IEC/EN 60950-1, 2nd Edition
Approvals
UL
Murata Power Solutions - 50W to 120W
Specifikationer
Attribute | Value |
---|---|
Output Voltage | 12V dc |
Input Voltage Range | 9 → 36 V dc |
Power Rating | 72W |
Input Voltage Nominal | 12 V dc |
Output Current | 6A |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | 1/8 Brick |
Isolation Voltage | 1.5kV dc |
Length | 22.9mm |
Series | UWE |
Maximum Temperature | +85°C |
Minimum Temperature | -40°C |
