- RS-artikelnummer:
- 235-2610
- Tillv. art.nr:
- BM2P060MF-ZE2
- Tillverkare / varumärke:
- ROHM
Tyvärr har vi inte denna produkt i lager.
Restorder ej möjlig på grund av bristande allokering. Den evt. angivna systemtekniska leveranstiden är inte giltig.
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 1500)
23,321 kr
(exkl. moms)
29,151 kr
(inkl. moms)
Enheter | Per unit | Per Reel* |
1500 + | 23,321 kr | 34 981,50 kr |
- RS-artikelnummer:
- 235-2610
- Tillv. art.nr:
- BM2P060MF-ZE2
- Tillverkare / varumärke:
- ROHM
Datablad
Lagstiftning och ursprungsland
Produktdetaljer

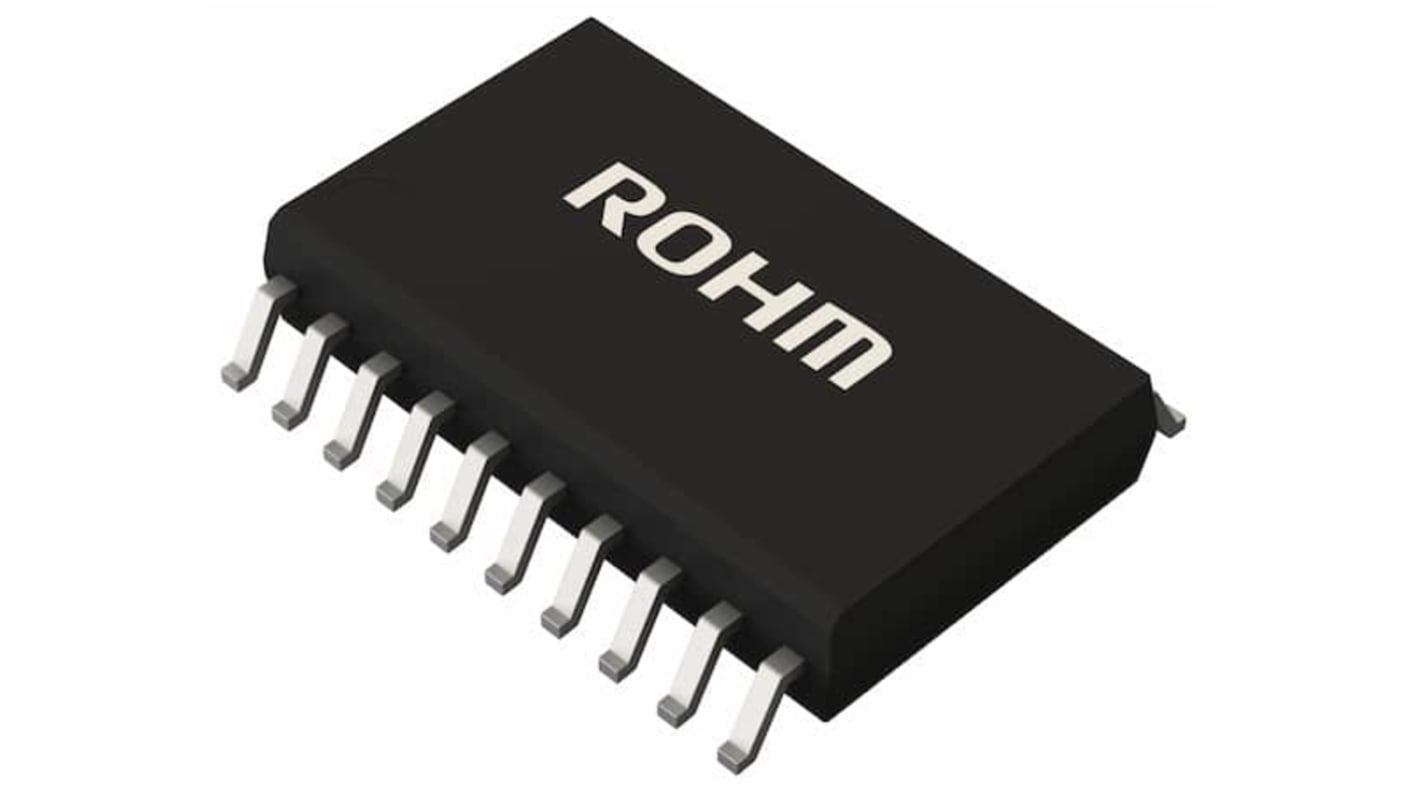

The ROHM PWM type DC/DC Converter for AC/DC provides an optimal system for all products that include an electrical outlet. This IC supports isolated power supply and enables simpler designs of various low power consumption electrical converters. It realizes the high flexibility in power supply design by incorporating a switching MOSFET and with external current detection resistor. This IC can make high efficiency power supply because it has AC low voltage protection function and X capacitor discharge function and operates frequency reduction, minimum ON width adjustment and burst operation at light load.
PWM type current mode control
Frequency reduction function
Burst operation at light load
Burst voltage setting function
Minimum ON width adjustment at light load
Soft start function
FB pin overload protection function
Over current protection function by cycle
Over current detection compensation function by AC voltage detection
External stop function
Frequency reduction function
Burst operation at light load
Burst voltage setting function
Minimum ON width adjustment at light load
Soft start function
FB pin overload protection function
Over current protection function by cycle
Over current detection compensation function by AC voltage detection
External stop function
Specifikationer
Attribute | Value |
---|---|
Minimum Input Voltage | 11 V |
Maximum Input Voltage | 60 V |
Converter Type | PWM DC to DC |
Number of Outputs | 1 |
Output Type | Adjustable |
Package Type | SOP |
Pin Count | 20 |
