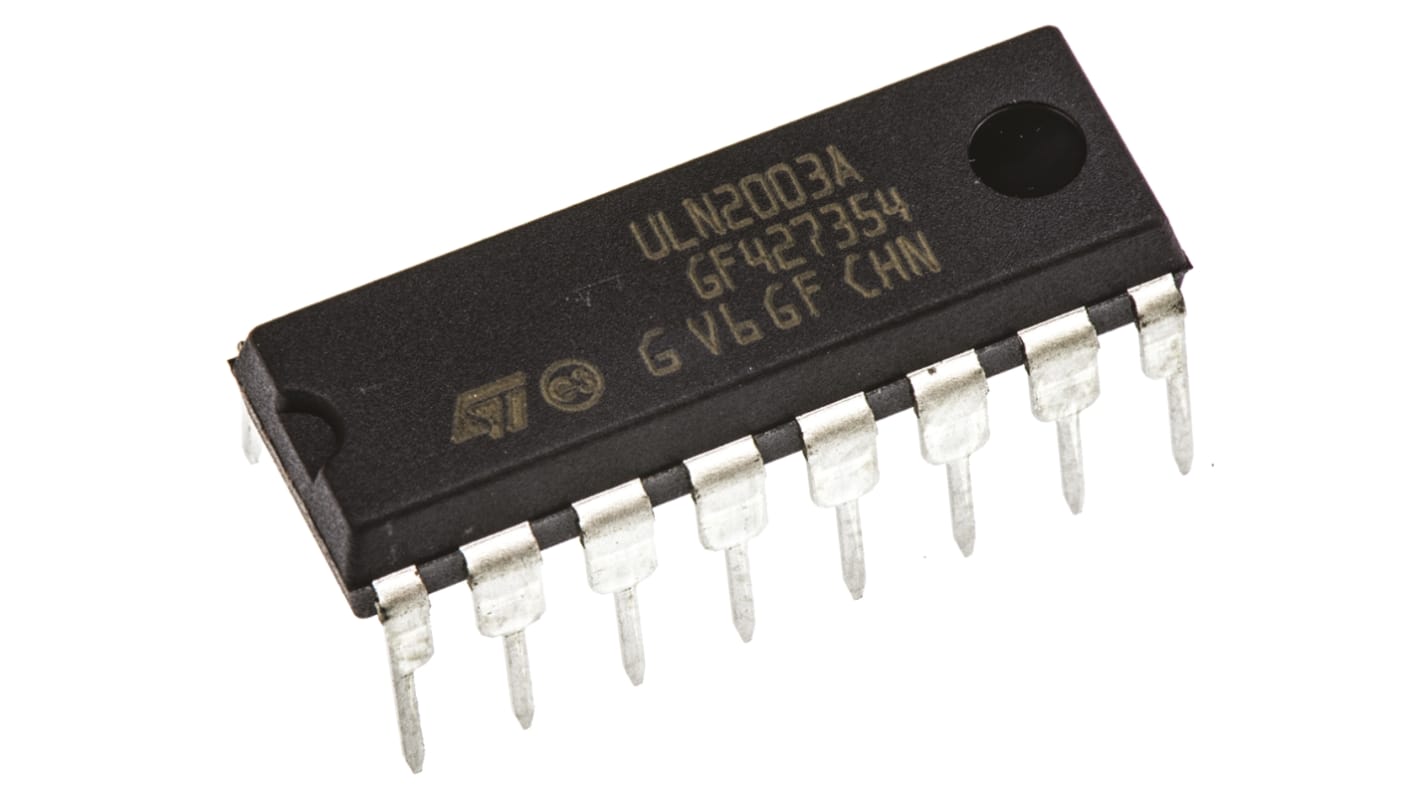

STMicroelectronics ULN2003A, 7-element NPN Darlington Pair, 500 mA 50 V HFE:1000, 16-Pin PDIP

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Darlington Transistor Arrays, STMicroelectronics

Darlington transistor power drivers are high-voltage, high-current switch arrays containing multiple open-collector Darlington pairs and integral suppression diodes for inductive loads. The high current rating of each output is 500 mA or higher. The inputs are pinned opposite the outputs in the IC package to simplify the application board layout. The interface is standard logic level for TTL or CMOS.

Darlington Transistor Drivers

Specifikationer
Attribute Value
Transistor Type NPN
Maximum Continuous Collector Current 500 mA
Maximum Collector Emitter Voltage 50 V
Package Type PDIP
Mounting Type Through Hole
Pin Count 16
Transistor Configuration Common Emitter
Number of Elements per Chip 7
Minimum DC Current Gain 1000
Maximum Collector Emitter Saturation Voltage 1.6 V
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -20 °C
Length 20mm
Height 5.1mm
Width 7.1mm
Dimensions 20 x 7.1 x 5.1mm
