- RS-artikelnummer:
- 542-7933
- Tillv. art.nr:
- D09S24A4GV00LF
- Tillverkare / varumärke:
- Amphenol FCI
- RS-artikelnummer:
- 542-7933
- Tillv. art.nr:
- D09S24A4GV00LF
- Tillverkare / varumärke:
- Amphenol FCI
Lagstiftning och ursprungsland
Produktdetaljer

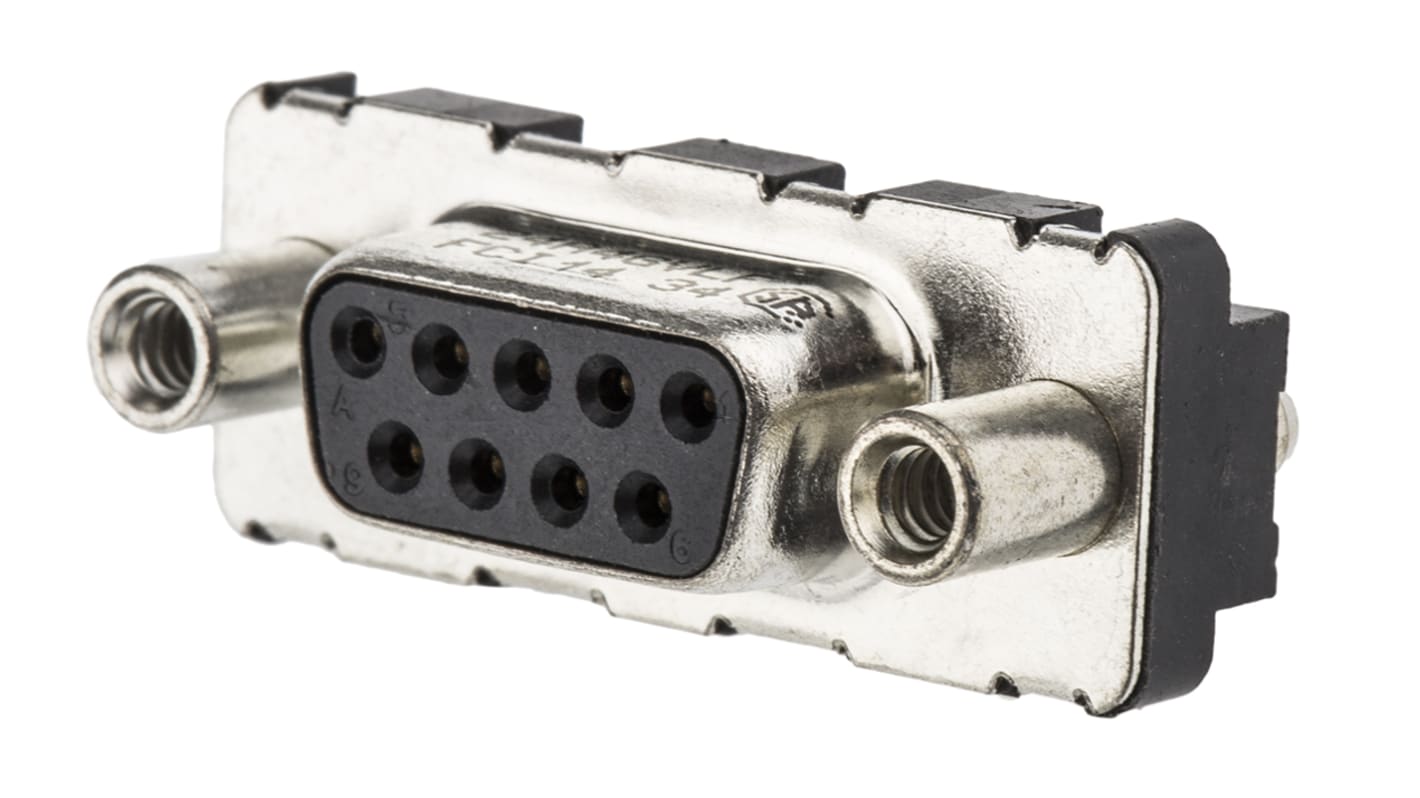

Straight PCB
Locking latch to retain connectors to the PCB during assembly
4-40 UNC jack posts provide for secure connector coupling
Shells are tinned with dimpled plug shells for grounding continuity and rated at 200 mating cycles
4-40 UNC jack posts provide for secure connector coupling
Shells are tinned with dimpled plug shells for grounding continuity and rated at 200 mating cycles
Approvals
UL recognised
Value-Added D Type Connectors
Solder bucket connection
Suitable for military, industrial or commercial applications and computer interfacing etc.
For IDC D types, see the 'Speedbloc' range
Suitable for military, industrial or commercial applications and computer interfacing etc.
For IDC D types, see the 'Speedbloc' range
Specifikationer
Attribute | Value |
---|---|
Number of Contacts | 9 |
Gender | Female |
Body Orientation | Straight |
Mounting Type | Through Hole |
Pitch | 2.74mm |
Current Rating | 5A |
Housing Material | PBT |
Voltage Rating | 300 V ac |
Length | 30.81mm |
Width | 12.17mm |
Depth | 12.55mm |
Dimensions | 30.81 x 12.17 x 12.55mm |
Contact Material | Phosphor Bronze |
Series | Delta D |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -55°C |
Contact Plating | Gold over Nickel |
