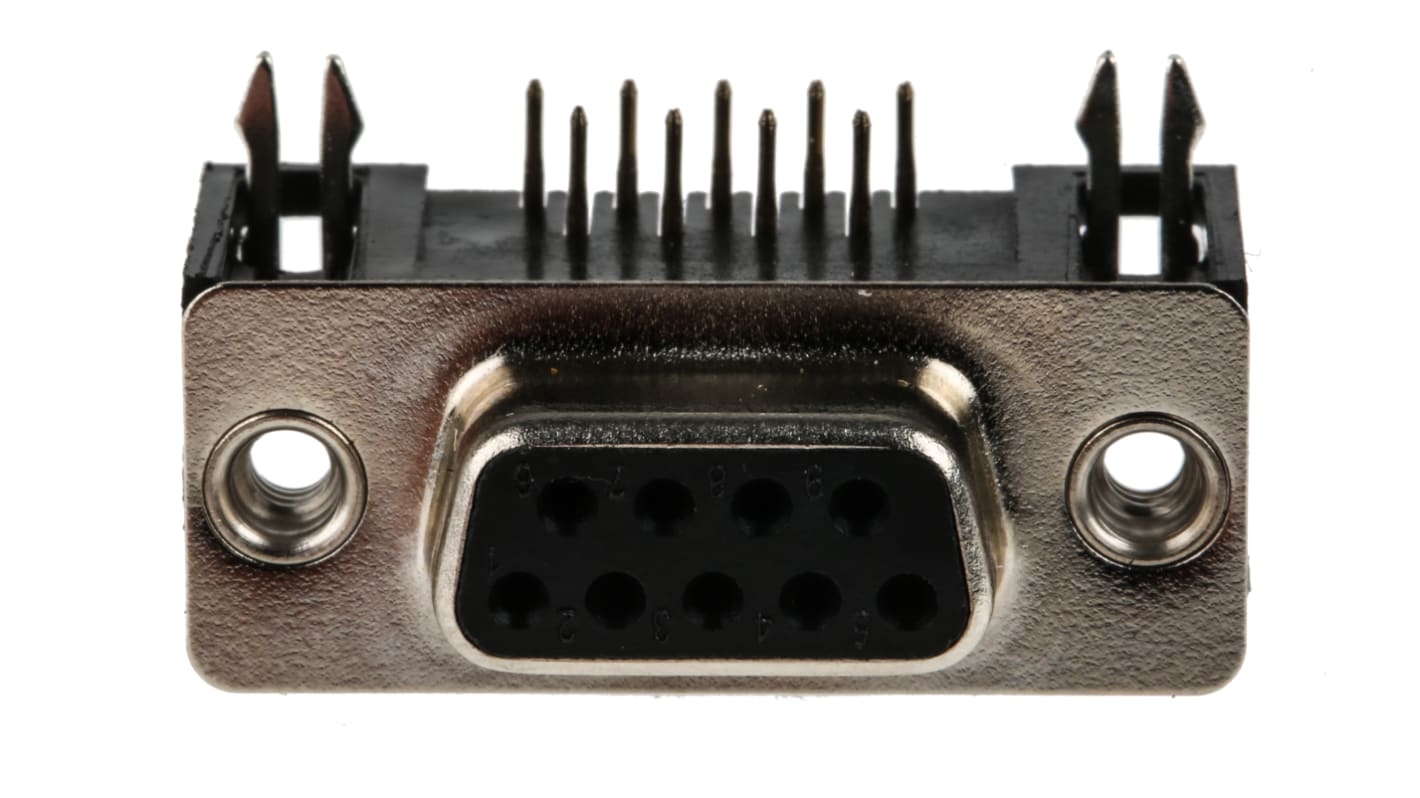

RS PRO 9 Way Right Angle Through Hole D-sub Connector Socket, 2.77mm Pitch, with 4-40 UNC, Threaded Insert
- RS-artikelnummer:
- 239-5855
- Tillverkare / varumärke:
- RS PRO
5070 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
11,182 kr
(exkl. moms)
13,978 kr
(inkl. moms)
Enheter | Per unit | Per Pack* |
10 - 240 | 11,182 kr | 111,82 kr |
250 - 990 | 10,13 kr | 101,30 kr |
1000 - 4990 | 8,982 kr | 89,82 kr |
5000 - 9990 | 7,877 kr | 78,77 kr |
10000 + | 7,286 kr | 72,86 kr |
- RS-artikelnummer:
- 239-5855
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer
RS PRO 9 Way Right Angle Through Hole D-Sub Connector Plug, 2.77 mm Pitch, With 4-40 UNC, Threaded Insert
This RS PRO female through-hole D-Sub connector plug with a solder bucket connection is commonly used in industrial and military applications. Its IDC (insulation displacement contact) type makes it suitable for making connections to ribbon or insulated cables.
Its robust steel shell is not only plated with tin but also housed in PET (polyethylene terephthalate). This allows connections to be sustained reliably without any electrical interference from external signals. The nine brass contacts on the female plug are gold-plated, which also ensures signals can be conducted steadily.
This D-Sub connector plug has a current rating of 5 A, a 350 V working voltage and can handle a contact resistance up to 30 mΩ. It has a right-angle design that means it mounts securely with its 4-40 UNC (unified coarse thread) inserts.
Its robust steel shell is not only plated with tin but also housed in PET (polyethylene terephthalate). This allows connections to be sustained reliably without any electrical interference from external signals. The nine brass contacts on the female plug are gold-plated, which also ensures signals can be conducted steadily.
This D-Sub connector plug has a current rating of 5 A, a 350 V working voltage and can handle a contact resistance up to 30 mΩ. It has a right-angle design that means it mounts securely with its 4-40 UNC (unified coarse thread) inserts.
Features and Benefits
• Nine brass contacts coated in gold
• Male gender
• Right angle orientation
• 4-40 UNC (Unified Coarse Thread) inserts for mounting
• Current rating of 5 A
• Voltage rating of 350 V
• PET material
• Pitch of 2.77 mm
• Measures 30.81 mm x 18.4 mm x 12.5 mm
• Minimum operating temperature of -55°C
• Maximum operating temperature of +105°C
• Male gender
• Right angle orientation
• 4-40 UNC (Unified Coarse Thread) inserts for mounting
• Current rating of 5 A
• Voltage rating of 350 V
• PET material
• Pitch of 2.77 mm
• Measures 30.81 mm x 18.4 mm x 12.5 mm
• Minimum operating temperature of -55°C
• Maximum operating temperature of +105°C
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifikationer
Attribute | Value |
---|---|
Number of Contacts | 9 |
Gender | Female |
Body Orientation | Right Angle |
Mounting Type | Through Hole |
Pitch | 2.77mm |
Termination Method | Solder |
Mounting Hardware | 4-40 UNC, Threaded Insert |
Current Rating | 5.0A |
Housing Material | PET |
Voltage Rating | 350.0 V |
Length | 30.81mm |
Width | 18.4mm |
Depth | 12.5mm |
Contact Plating | Gold |
Dimensions | 30.81 x 18.4 x 12.5mm |
Contact Material | Phosphor Bronze |
Maximum Operating Temperature | +105°C |
Minimum Operating Temperature | -55.0°C |
