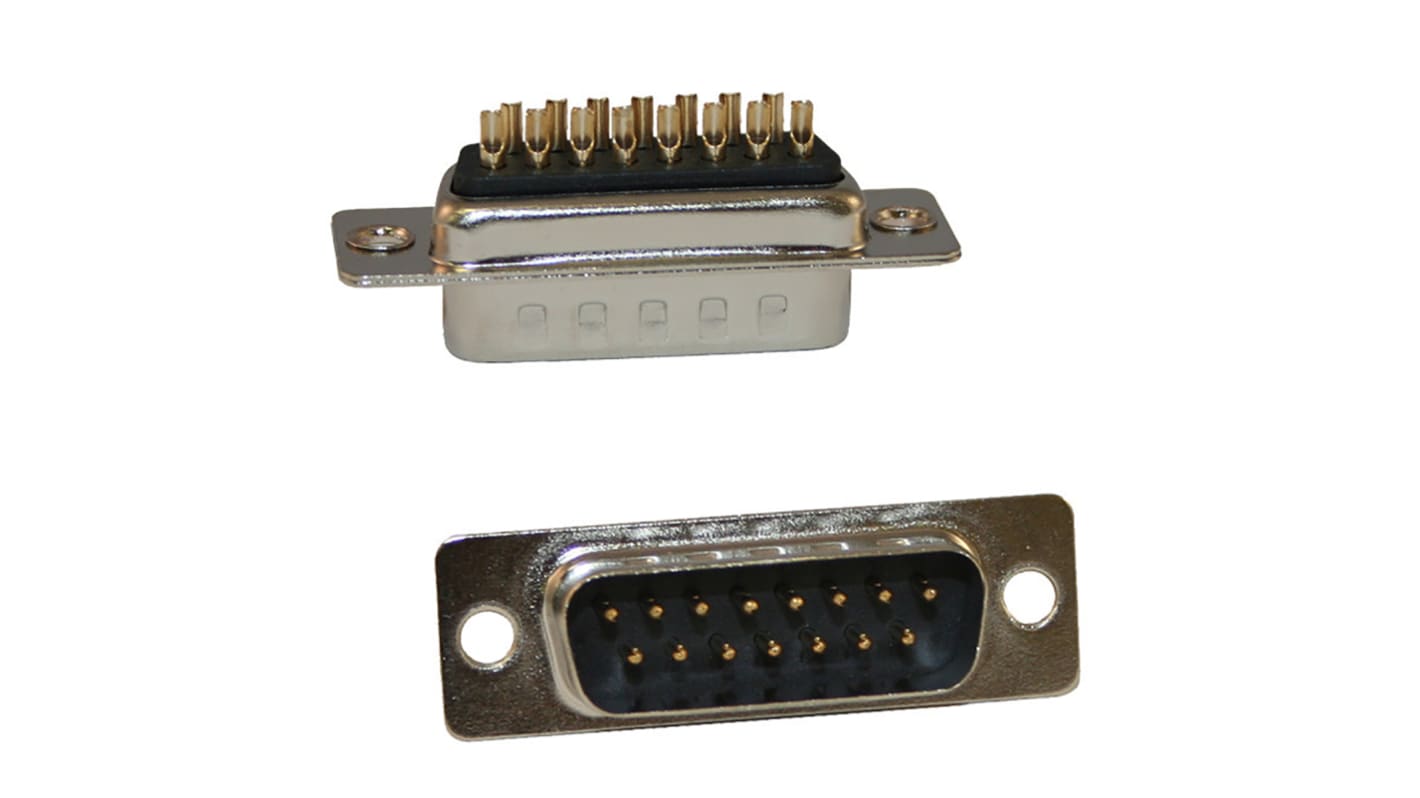

Norcomp 171 15 Way Panel Mount D-sub Connector Plug, 2.77mm Pitch

RS-artikelnummer:: 174-8451
Tillv. art.nr:: 171-015-103L001
Tillverkare / varumärke:: Norcomp

Norcomp 171 15 Way Panel Mount D-sub Connector Plug, 2.77mm Pitch

Tillfälligt slut i lager – restorder för leverans 2024-10-07

Lagt till varukorgen

Pris (ex. moms) Var (i en bricka med 50)

11,474 kr

(exkl. moms)

14,342 kr

(inkl. moms)

Enheter	Per unit	Per Tray*
50 - 50	11,474 kr	573,70 kr
100 - 200	10,776 kr	538,80 kr
250 +	10,087 kr	504,35 kr

RS-artikelnummer:: 174-8451
Tillv. art.nr:: 171-015-103L001
Tillverkare / varumärke:: Norcomp

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: TW

Produktdetaljer

Solder cup d-subs available in 5 industry sizes/positions
Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin).
Low cost economy series.
Nickel shells have indents to provide grounding and additional retention.
Low cost & high performance, non-removable stamped contacts.
Optional mounting hardware available.
Shell: Steel, Tin or Nickel Plated
Insulator: Glass-filled thermoplastic. (230°C process temp)
Stamped contacts:Male pins - Brass | Female pins - Phosphor bronze
Plating: Gold flash on entire contact

Specifikationer

Attribute	Value
Number of Contacts	15
Gender	Male
Body Orientation	Straight
Mounting Type	Panel Mount
Pitch	2.77mm
D Connector Type	Standard D-Sub
Termination Method	Solder
Current Rating	5.0A
Housing Material	Steel
Voltage Rating	500.0 V
Length	39.19mm
Width	12.6mm
Depth	9.93mm
Dimensions	39.19 x 12.6 x 9.93mm
Contact Plating	Gold Flash
Series	171
Contact Material	Copper Alloy
Minimum Operating Temperature	-50.0°C
Maximum Operating Temperature	+100°C
