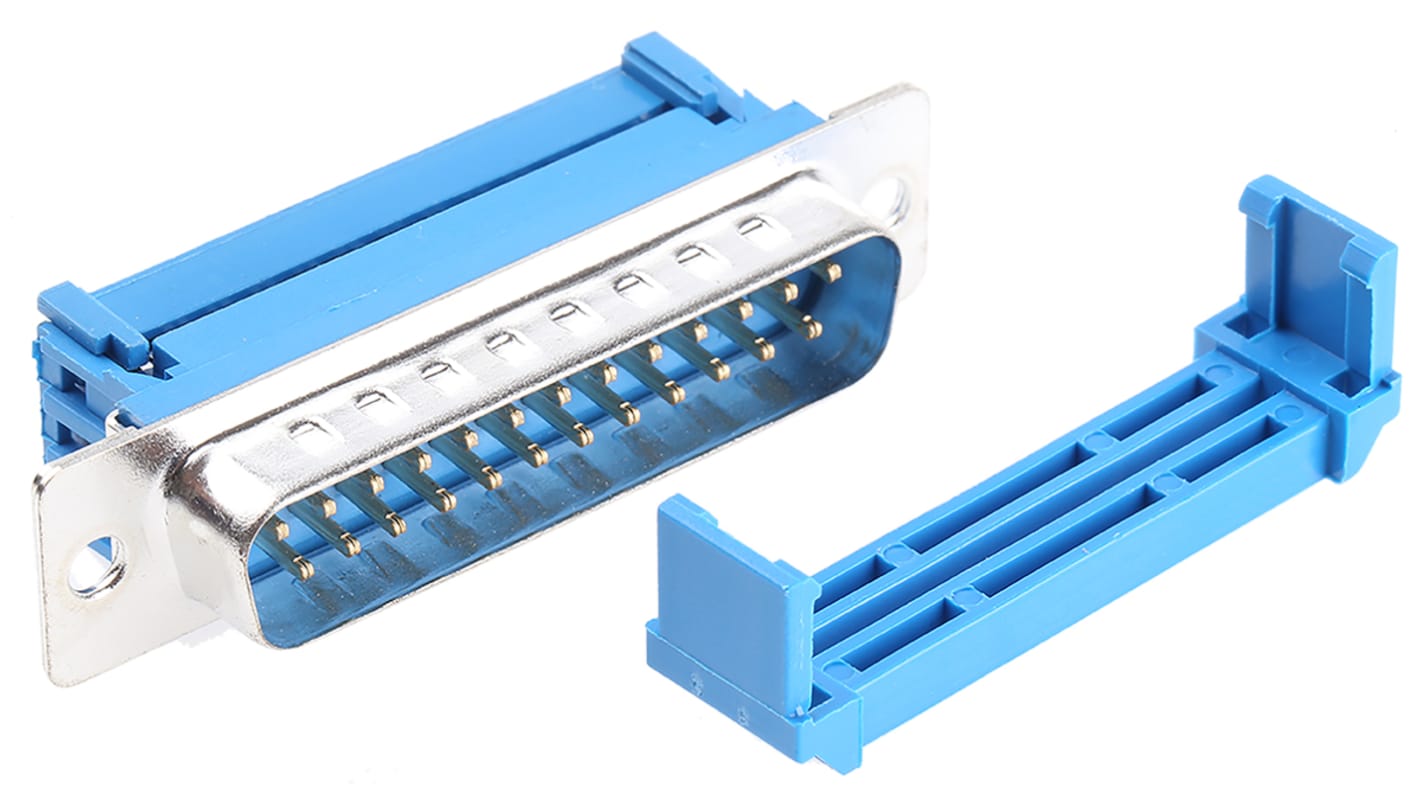

RS PRO 25 Way Cable Mount D-sub Connector Plug, 1.27mm Pitch

  • RS-artikelnummer 136-471
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

Commercial Pitch Tin Plated

Low profile connectors with bright tin finish and grounding indents for EMI/RFI protection.

Provides high speed mass termination onto flat ribbon cable (26-28awg wire)
Contact rating 1A, contact resistance 15mΩ
Complies with BS9523 & MIL–C–24308 size
With strain relief clamp.

Specifikationer
Attribute Value
Number of Contacts 25
Gender Male
Mounting Type Cable Mount
Pitch 1.27mm
Termination Method IDC
Current Rating 1.0A
Housing Material Steel
Voltage Rating 250.0 V
Length 53.05mm
Width 17.1mm
Depth 12.55mm
Dimensions 53.05 x 17.1 x 12.55mm
Contact Material Brass
Contact Plating Tin
Tillfälligt slut i lager – restorder för leverans 2020-11-17
Pris (ex. moms) Each (In a Pack of 5)
21,13 kr
(exkl. moms)
26,41 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 - 70
21,13 kr
105,65 kr
75 - 495
19,208 kr
96,04 kr
500 - 1245
18,382 kr
91,91 kr
1250 - 2495
14,444 kr
72,22 kr
2500 +
11,784 kr
58,92 kr
