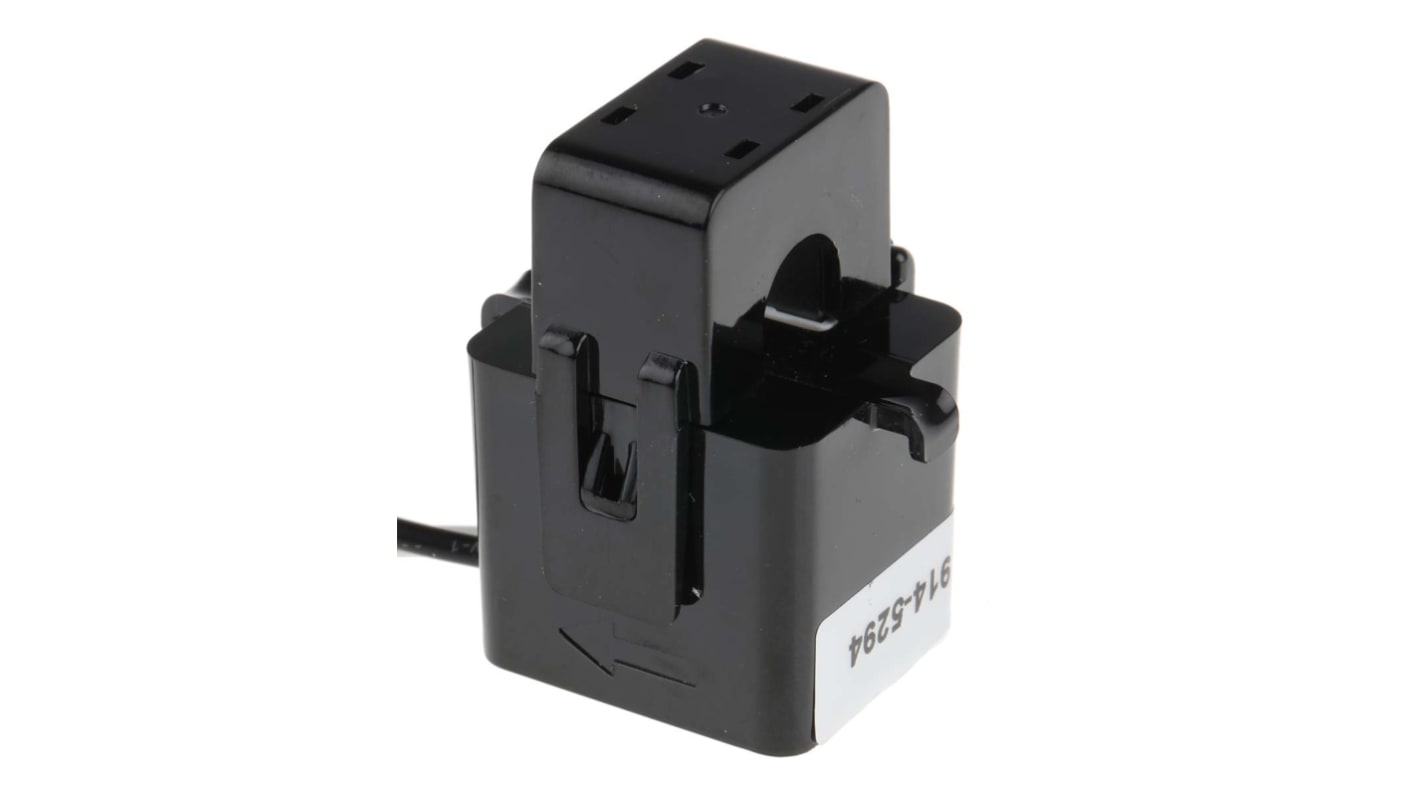

HOBUT CTSCM Series Split Core Current Transformer, 60A Input, 333 mV Output, 10mm Bore

RS-artikelnummer:: 914-5294
Tillv. art.nr:: CTSCMWH60/0.333V
Tillverkare / varumärke:: HOBUT

HOBUT CTSCM Series Split Core Current Transformer, 60A Input, 333 mV Output, 10mm Bore

126 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

247,19 kr

(exkl. moms)

308,99 kr

(inkl. moms)

Enheter	Per unit
1 - 4	247,19 kr
5 - 9	234,82 kr
10 +	222,45 kr

RS-artikelnummer:: 914-5294
Tillv. art.nr:: CTSCMWH60/0.333V
Tillverkare / varumärke:: HOBUT

Datablad

Datasheet

Lagstiftning och ursprungsland

COO (Country of Origin):: GB

Produktdetaljer

HOBUT Split-Core Current Transformer

The HOBUT split-core current transformer with UKAS calibrated is designed to fit into confined spaces whilst the primary conductor is still live. It has a primary voltage of 720VAC and an input current of 60A. The family of CT’s are a compact design with a mechanical hinge for multiple opening and closing action. It is for connection into existing networks and often for use with multifunction meters that have 0.333V. It is for use with multi-function meter.

Features and Benefits

1m long flying lead twisted pair (22 AWG)
Cable mounting
Class 1 accuracy
Construction- ferrite core material
High Sensitivity
Inner diameter of 10mm
Linearity with minimum phase shift
Mechanical hinge
Dielectric withstand voltage is 2.5kV for 1 minute
Input frequency 50 Hz to 400 Hz
Operating temperature ranges between -15°C and 50°C

Certifications

CE certified
UL94V-0 approved
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifikationer

Attribute	Value
Bore Size	10mm
Series	CTSCM
Transformer Type	Split Core
Input Current	60A
Output Current	333 mV
Minimum Temperature	-15°C
Maximum Temperature	+50°C
Mounting Type	Cable
Dimensions	28.7 x 26.4 x 41.7 mm
For Use With	Multi Function Meter
