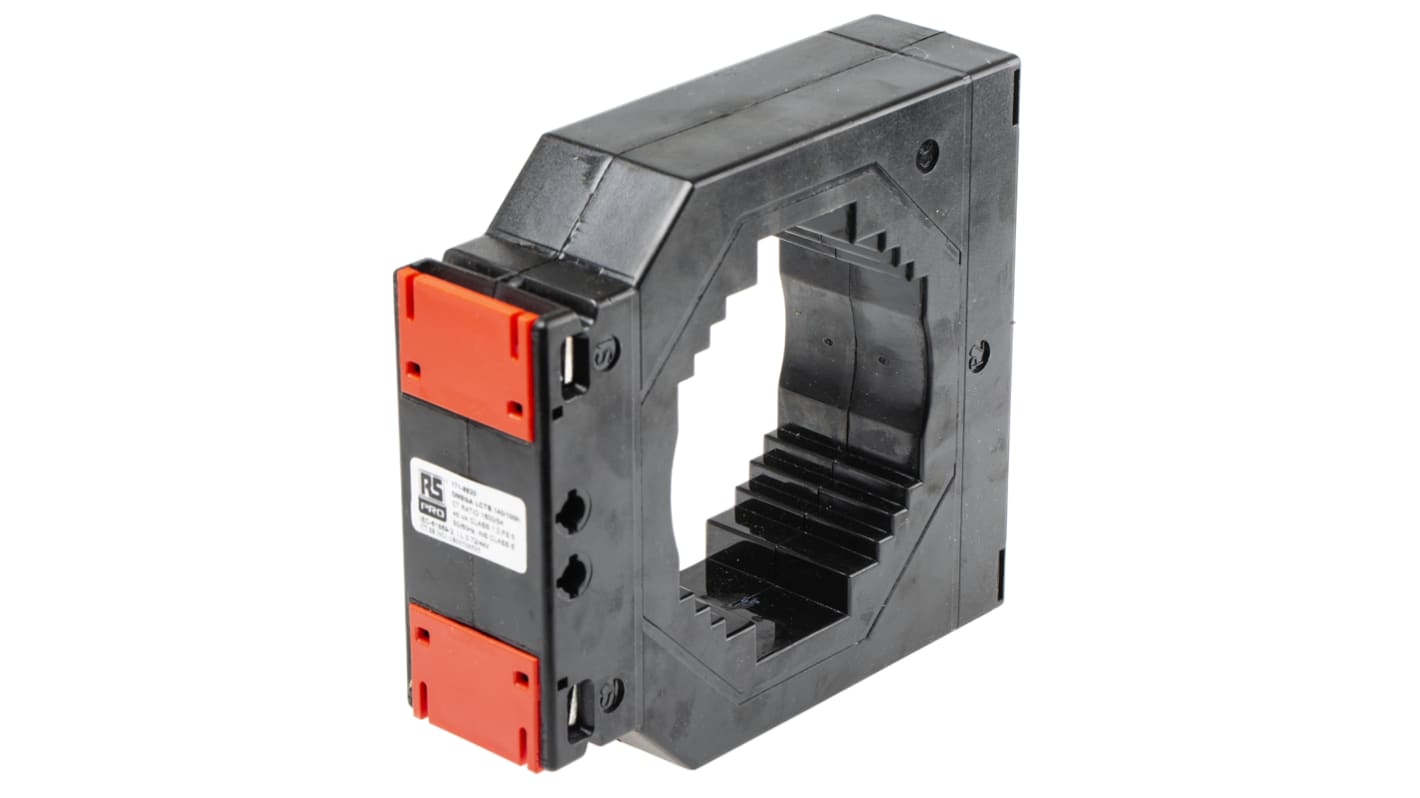

RS PRO Base Mounted Current Transformer, 1600A Input, 1600:5, 5 A Output, 100 x 30mm Bore
- RS-artikelnummer:
- 171-8820
- Tillverkare / varumärke:
- RS PRO
26 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
423,82 kr
(exkl. moms)
529,78 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 423,82 kr |
| 5 - 9 | 406,86 kr |
| 10 - 24 | 389,90 kr |
| 25 - 49 | 372,94 kr |
| 50 + | 355,99 kr |
- RS-artikelnummer:
- 171-8820
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- IN
Produktdetaljer
CT’s are square type and encapsulated with polycarbonate. These metering CT’s feature sealable terminal covers and a wide range of primary current ratings. Available in various, Bus bar sizes, case widths, and mounting options.
Comprehensive class accuracy
Cost effective moulded case current transformer
Various mounting options including wall mounting, cable mounting, bus bar mounting and DIN rail mounting
Available in 0.2 & 0.2s accuracy class
Wire sealable terminal covers
Cost effective moulded case current transformer
Various mounting options including wall mounting, cable mounting, bus bar mounting and DIN rail mounting
Available in 0.2 & 0.2s accuracy class
Wire sealable terminal covers
Specifikationer
Attribute | Value |
|---|---|
| Current Ratio | 1600:5 |
| Bore Size | 100 x 30mm |
| Transformer Type | Base Mounted |
| Input Current | 1600A |
| Output Current | 5 A |
| Overall Height | 155mm |
| Overall Width | 140mm |
| Overall Depth | 45mm |
| Minimum Temperature | -5°C |
| Maximum Temperature | +55°C |
| Mounting Type | Surface Mount |
| Dimensions | 140 x 45 x 155 mm |
