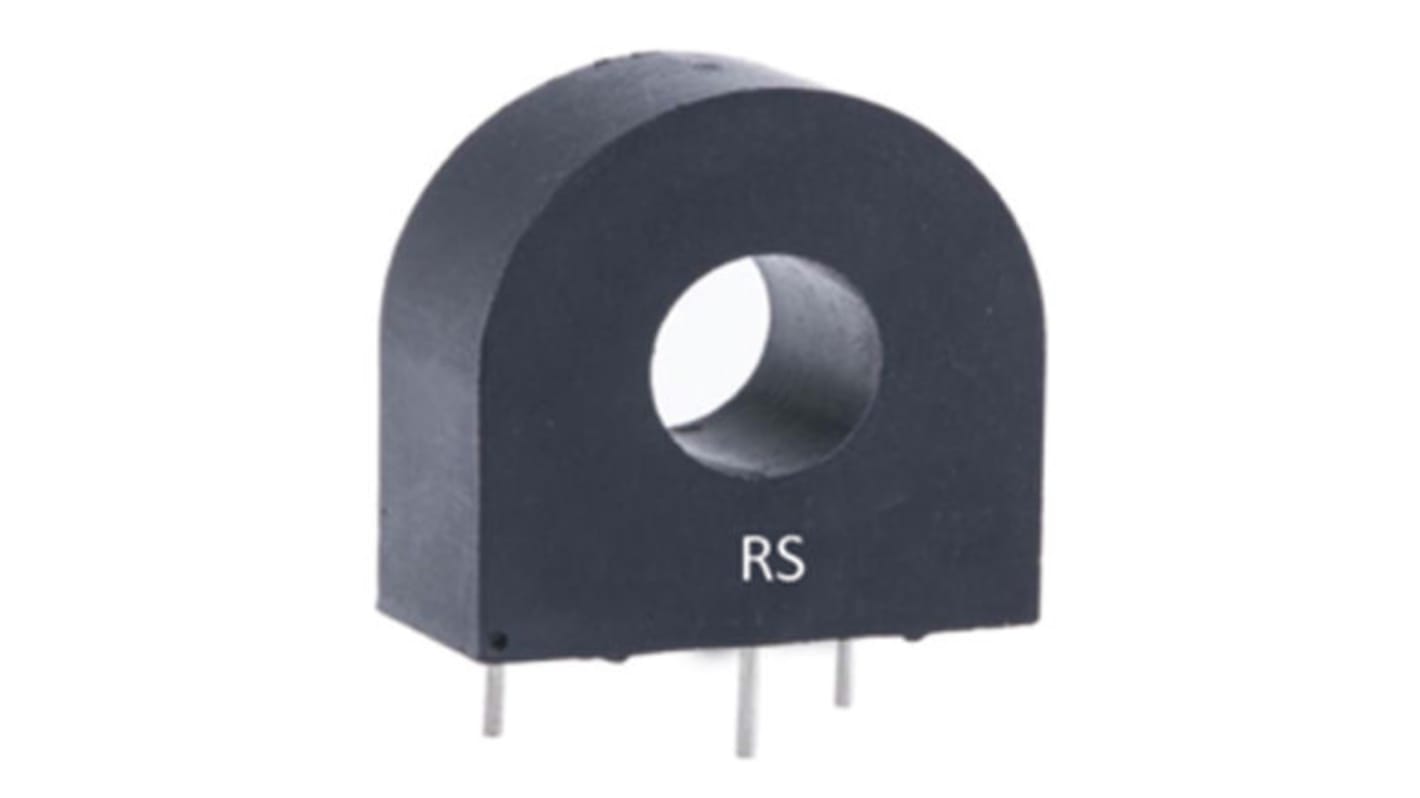

RS PRO Current Transformer, , 25 → 75A Input,

  • RS-artikelnummer 124-3888
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): IN
Produktdetaljer

RS Pro Current Sense Transformers 10A-200A

RS Pro PCB mount current transformers encapsulated in UL94 V0 rated plastic Storage temperature -55°C to +130°C, fully RoHS compliant.

Applications

Ground fault detection
Metering
Analog to digital circuits
Sensing overload current

Standards

SO-9001:2000
TS-16949:2002
ISO-14001:2004

Low Cost Current Sense Transformers

Specifikationer
Attribute Value
Input Current 25 → 75A
Minimum Temperature -55°C
Maximum Temperature +130°C
Mounting Type PCB Mount
Dimensions 30.2 x 14.3 x 30.2 mm
127 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
43,01 kr
(exkl. moms)
53,76 kr
(inkl. moms)
Enheter
Per unit
1 +
43,01 kr
