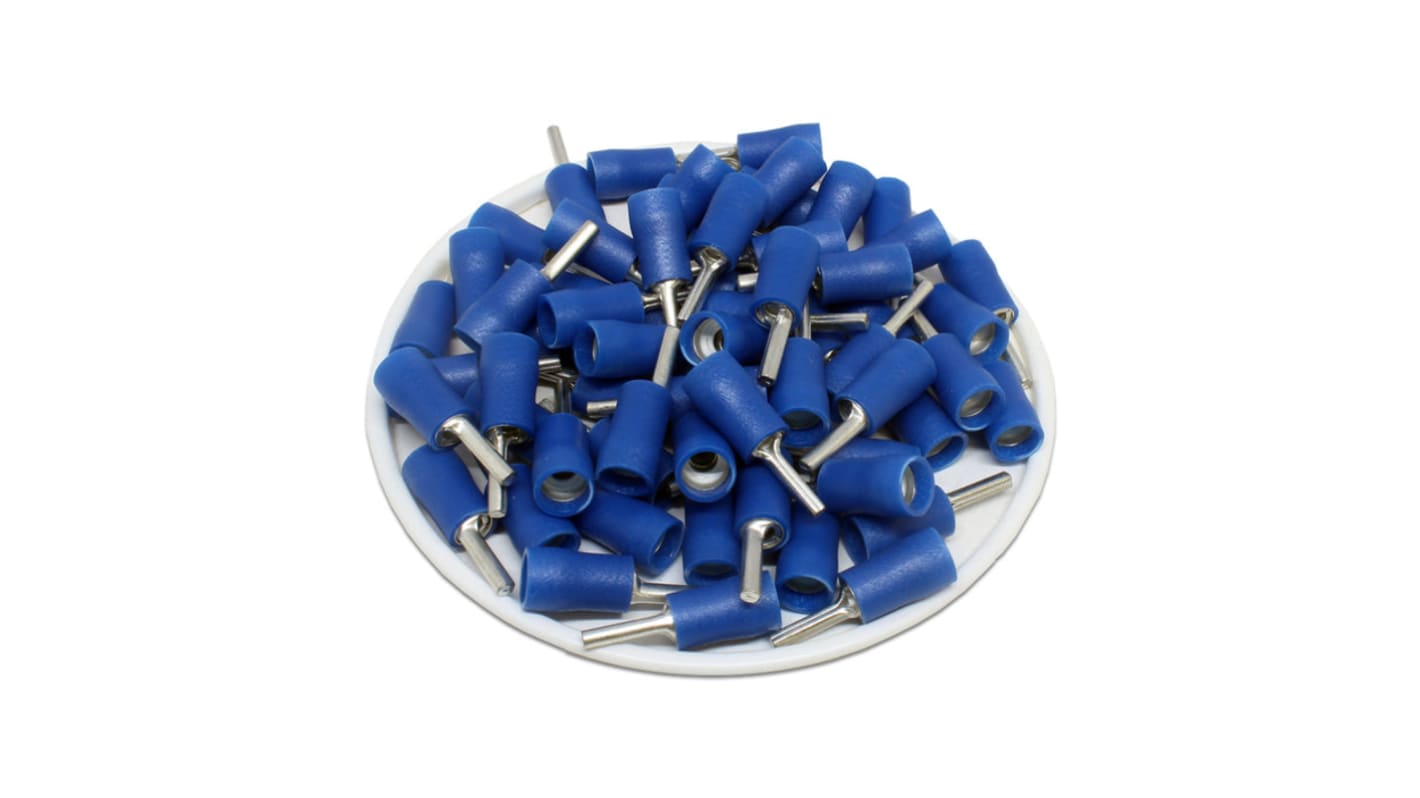

RS PRO Insulated Crimp Pin Connector, 1.5mm² to 2.5mm², 16AWG to 14AWG, 1.9mm Pin Diameter, 9mm Pin Length, Blue
- RS-artikelnummer:
- 267-4108
- Tillverkare / varumärke:
- RS PRO
Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 100)
1,53 kr
(exkl. moms)
1,91 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 100 - 900 | 1,53 kr | 153,00 kr |
| 1000 - 2400 | 1,378 kr | 137,80 kr |
| 2500 - 4900 | 1,255 kr | 125,50 kr |
| 5000 - 9900 | 1,149 kr | 114,90 kr |
| 10000 + | 1,072 kr | 107,20 kr |
- RS-artikelnummer:
- 267-4108
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer
RS PRO Insulated Double Crimp Pin Terminals
Introducing the RS PRO Insulated Double Crimp Pin Terminals - your ultimate solution for quick, secure, and corrosion-free electrical connections! Say goodbye to unreliable connections and hello to peace of mind. These double crimp pin terminals create an airtight seal, keeping out oxygen and moisture that can cause corrosion.
With tin-plated copper contacts and a reliable crimp blade, you can trust that your electrical connection will be rock solid. Plus, the added insulation ensures protection against chemical and mechanical damage. And the best part? You can even colour-code your connections for easy identification.
You'll find these versatile connectors are used by electricians and engineers. It's suitable for a variety of applications as it can accommodate wires ranging in size from 22 to 16 AWG.
With tin-plated copper contacts and a reliable crimp blade, you can trust that your electrical connection will be rock solid. Plus, the added insulation ensures protection against chemical and mechanical damage. And the best part? You can even colour-code your connections for easy identification.
You'll find these versatile connectors are used by electricians and engineers. It's suitable for a variety of applications as it can accommodate wires ranging in size from 22 to 16 AWG.
Features and Benefits
- Insulated double crimp pin terminals
- Contact Material: Copper
- Contact Plating: Tin
- Insulated
- Unshrouded
Colour Code
- Red 0.5 - 1.5 mm²
- Blue 1 - 2.6 mm²
- Yellow 2.5 - 6.5 mm²
Note
Size quoted is pin length.
Approvals
UL Listed; UL Listed for Canada
Specifikationer
Attribute | Value |
|---|---|
| Insulation | Insulated |
| Insulation Material | Nylon |
| Minimum Wire Size mm² | 1.5mm² |
| Overall Length | 19.8mm |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Shrouded/Unshrouded | Unshrouded |
| Maximum Wire Size AWG | 14AWG |
| Pin Diameter | 1.9mm |
| Pin Length | 9mm |
| Colour | Blue |
| Contact Material | Copper |
