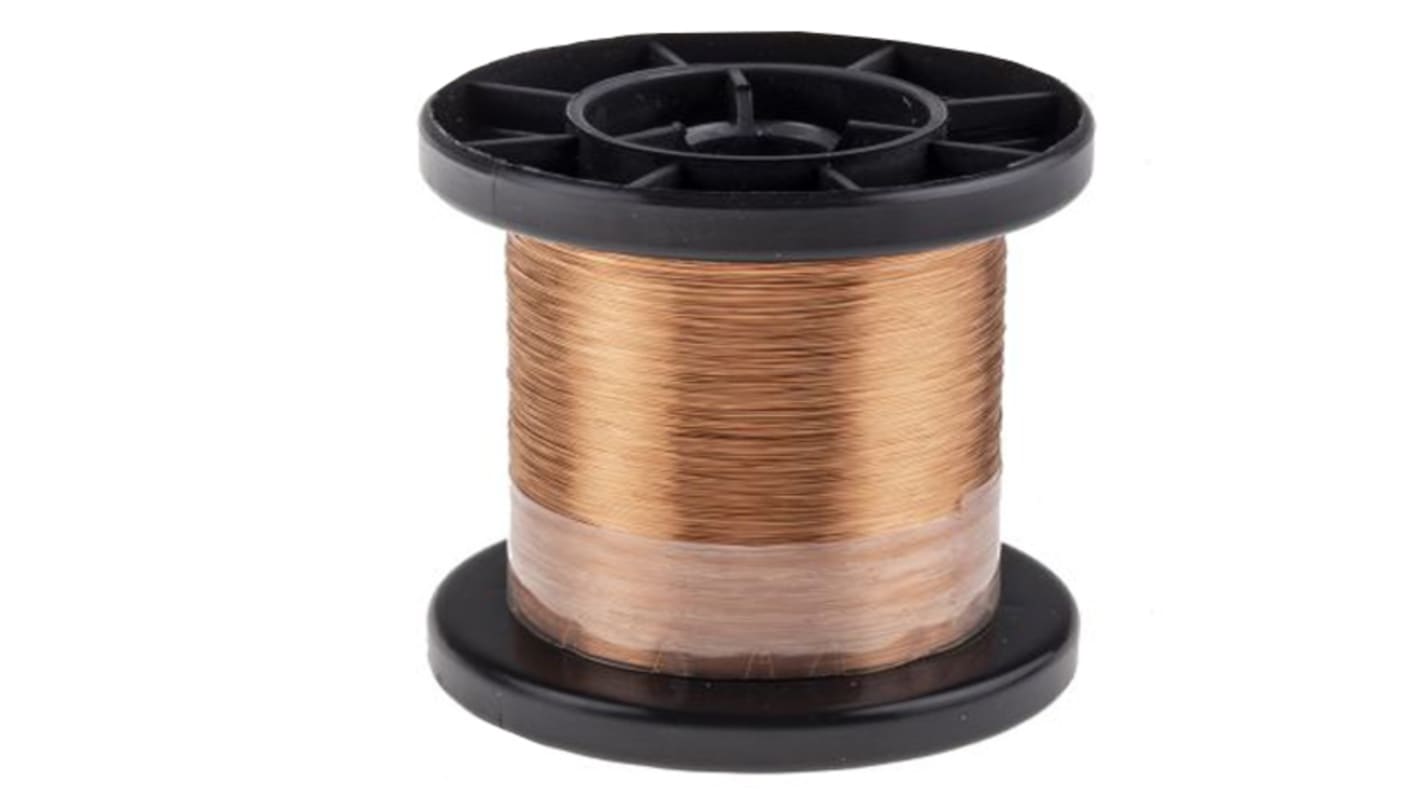

Block Single Core 0.5mm diameter Copper Wire, 44m Long

RS-artikelnummer:: 779-0707
Tillv. art.nr:: CUL 100/0,50
Tillverkare / varumärke:: Block

Block Single Core 0.5mm diameter Copper Wire, 44m Long

2 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

81,61 kr

(exkl. moms)

102,01 kr

(inkl. moms)

Enheter	Per unit
1 - 9	81,61 kr
10 - 49	66,95 kr
50 - 99	61,26 kr
100 - 199	56,89 kr
200 +	53,06 kr

RS-artikelnummer:: 779-0707
Tillv. art.nr:: CUL 100/0,50
Tillverkare / varumärke:: Block

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: DE

Produktdetaljer

Block Enamelled Copper Wire

From Block, a range of enamelled copper wire supplied on plastic spools. The single strand copper wire features a thin covering of enamel which acts as great insulation ensuring good chemical and thermal resistance. The enamel coating also prevents shorting. Enamelled copper wire or magnet wire is particularly useful for the production of tight coils. Block insulated copper wire is available in various diameters, AWG (American Wire Gauge) sizes and current ratings.

Features and Benefits

• Excellent insulation properties
• Copper possesses good chemical and corrosion protection
• Long term thermal resistance
• Solderable

Applications

Enamelled single strand copper conductors are utilised in a wide range of electronic manufacturing. The most common are

• Motor coil production
• Transformer winding
• Inductors for electronics
• Relay coils
• Speaker coils
• Potentiometers

Specifikationer

Attribute	Value
Cross Sectional Area	0.2 mm²
American Wire Gauge	24 AWG
Core Strands	1/0.50 mm
Insulation Material	PUR
Outer Diameter	0.5mm
Length	44m
Finish	Enamelled
Maximum Operating Temperature	+155°C
Shield Type	Unshielded
Series	CUL100
Cable Type	Single Core
Operating Temperature Range	+155 °C

RS-artikelnummer:: 779-0707
Tillv. art.nr:: CUL 100/0,50
Tillverkare / varumärke:: Block
