Interroll Conveyor Belt Control Unit, 130mm Length x 55mm Width x 24mm Height
- RS-artikelnummer:
- 215-4797
- Tillv. art.nr:
- S-1001415
- Tillverkare / varumärke:
- Interroll
124 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
1 011,29 kr
(exkl. moms)
1 264,11 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 1 011,29 kr |
| 5 - 9 | 970,82 kr |
| 10 + | 950,69 kr |
- RS-artikelnummer:
- 215-4797
- Tillv. art.nr:
- S-1001415
- Tillverkare / varumärke:
- Interroll
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer

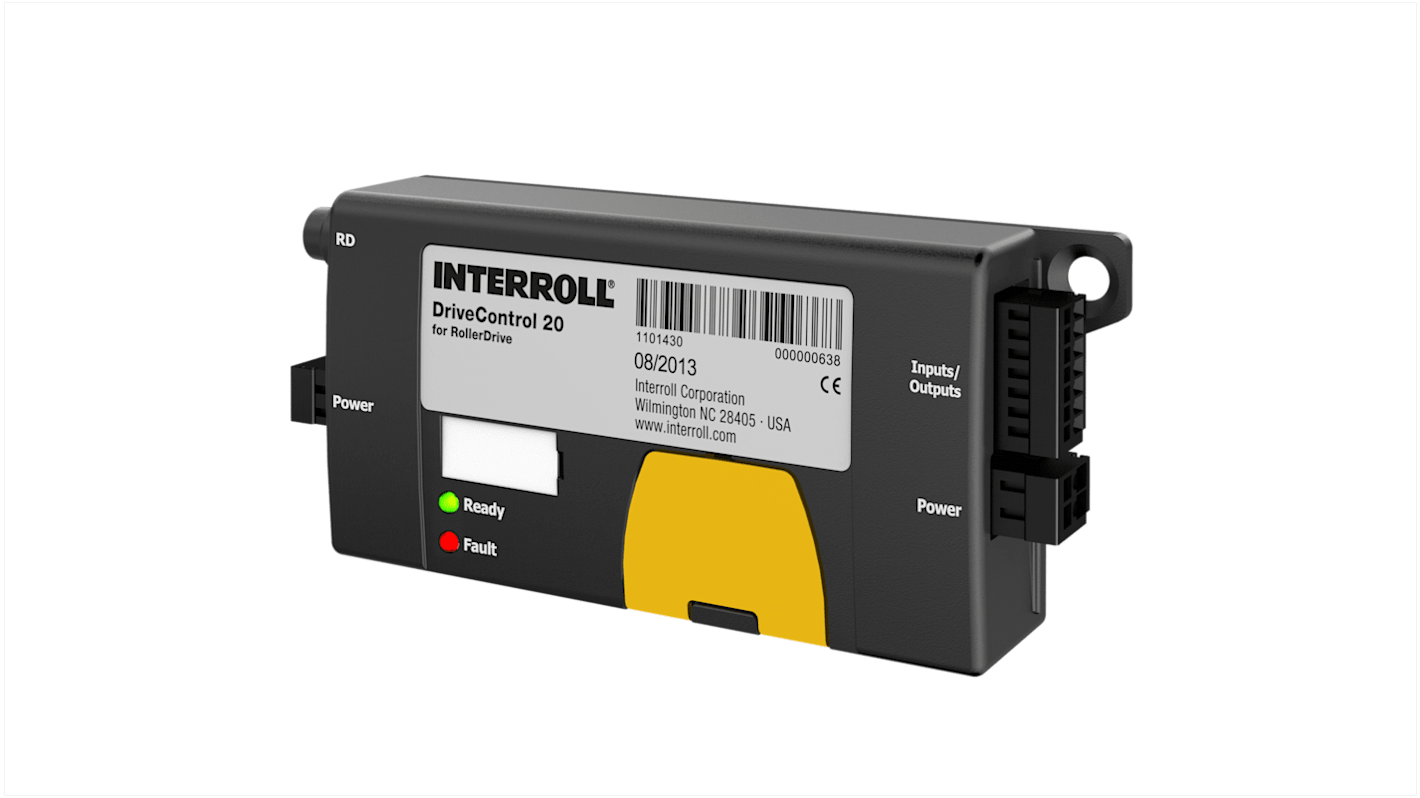

The Interroll Drive Control 20 is a simple control for the Roller Drive EC5000. It does not contain any logic (e.g. for zero-pressure accumulation conveying) and requires external signals. DIP switches can be used to set the direction of rotation, a start and braking ramp and the speed in 15 increments.
Speed setting (DIP switches 15x, digital input 7x)
Selection of direction of rotation (via DIP switches or digital input)
Error signal output
Status display with LEDs
Voltage limitation via brake chopper
Selection of direction of rotation (via DIP switches or digital input)
Error signal output
Status display with LEDs
Voltage limitation via brake chopper
Specifikationer
Attribute | Value |
|---|---|
| Length | 130mm |
| Width | 55mm |
| Height | 24mm |
