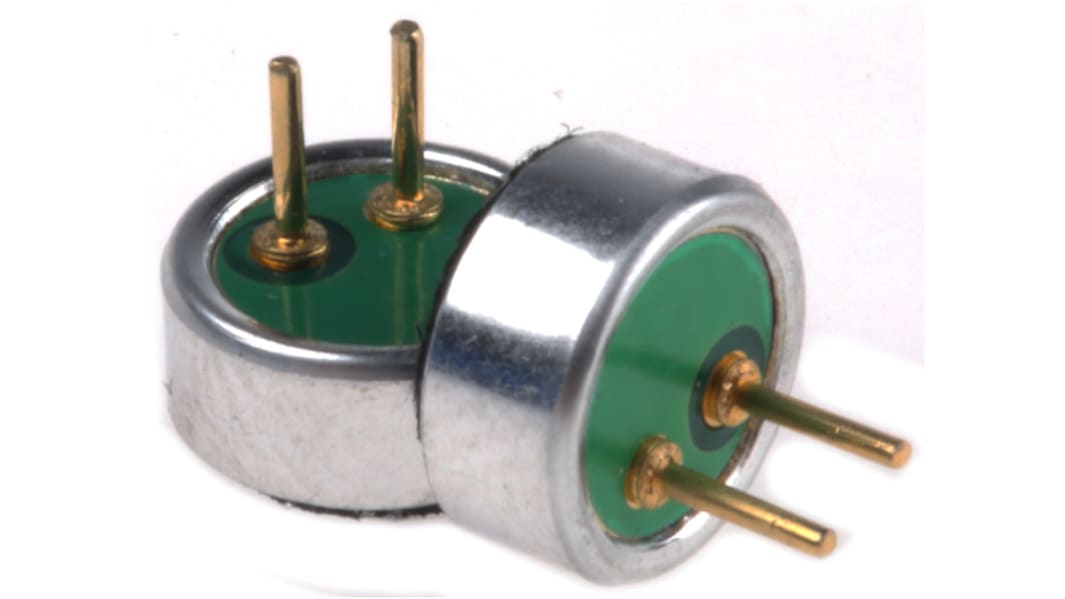

RS PRO Omni-Directional, Through Hole 6mm Microphone Condenser -42dB
- RS-artikelnummer:
- 780-0728
- Tillverkare / varumärke:
- RS PRO
80 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en påse med 5)
10,262 kr
(exkl. moms)
12,828 kr
(inkl. moms)
| Enheter | Per unit | Per Bag* |
| 5 - 95 | 10,262 kr | 51,31 kr |
| 100 - 245 | 9,342 kr | 46,71 kr |
| 250 - 495 | 8,73 kr | 43,65 kr |
| 500 - 995 | 7,658 kr | 38,29 kr |
| 1000 + | 7,308 kr | 36,54 kr |
- RS-artikelnummer:
- 780-0728
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Electret Microphone Inserts
Range of SMT and PCB mounting miniature electret condenser microphone inserts
Specifikationer
Attribute | Value |
|---|---|
| Sensitivity | -42dB |
| Directivity | Omni-Directional |
| Standard Operating Voltage | 2V |
| Mounting Type | Through Hole |
| Output Impedance | 2.2kΩ |
| Signal to Noise Ratio | 60dB |
| Maximum Supply Current | 0.5mA |
| Dimensions | 6 x 2.7mm |
| Diameter | 6mm |
| Height | 2.7mm |
| Maximum Frequency | 16kHz |
| Maximum Operating Temperature | +60°C |
| Minimum Frequency | 50Hz |
| Minimum Operating Temperature | -20°C |
