Analog Devices ADG5404F Evaluation Board EVAL-ADG5404FEBZ
- RS-artikelnummer:
- 898-7289
- Tillv. art.nr:
- EVAL-ADG5404FEBZ
- Tillverkare / varumärke:
- Analog Devices
Tillfälligt slut i lager – restorder för leverans när den finns i lager
Lagt till varukorgen
Pris (ex. moms) Varje
733,52 kr
(exkl. moms)
916,90 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 733,52 kr |
| 10 - 19 | 620,61 kr |
| 20 + | 537,89 kr |
- RS-artikelnummer:
- 898-7289
- Tillv. art.nr:
- EVAL-ADG5404FEBZ
- Tillverkare / varumärke:
- Analog Devices
Lagstiftning och ursprungsland
Produktdetaljer

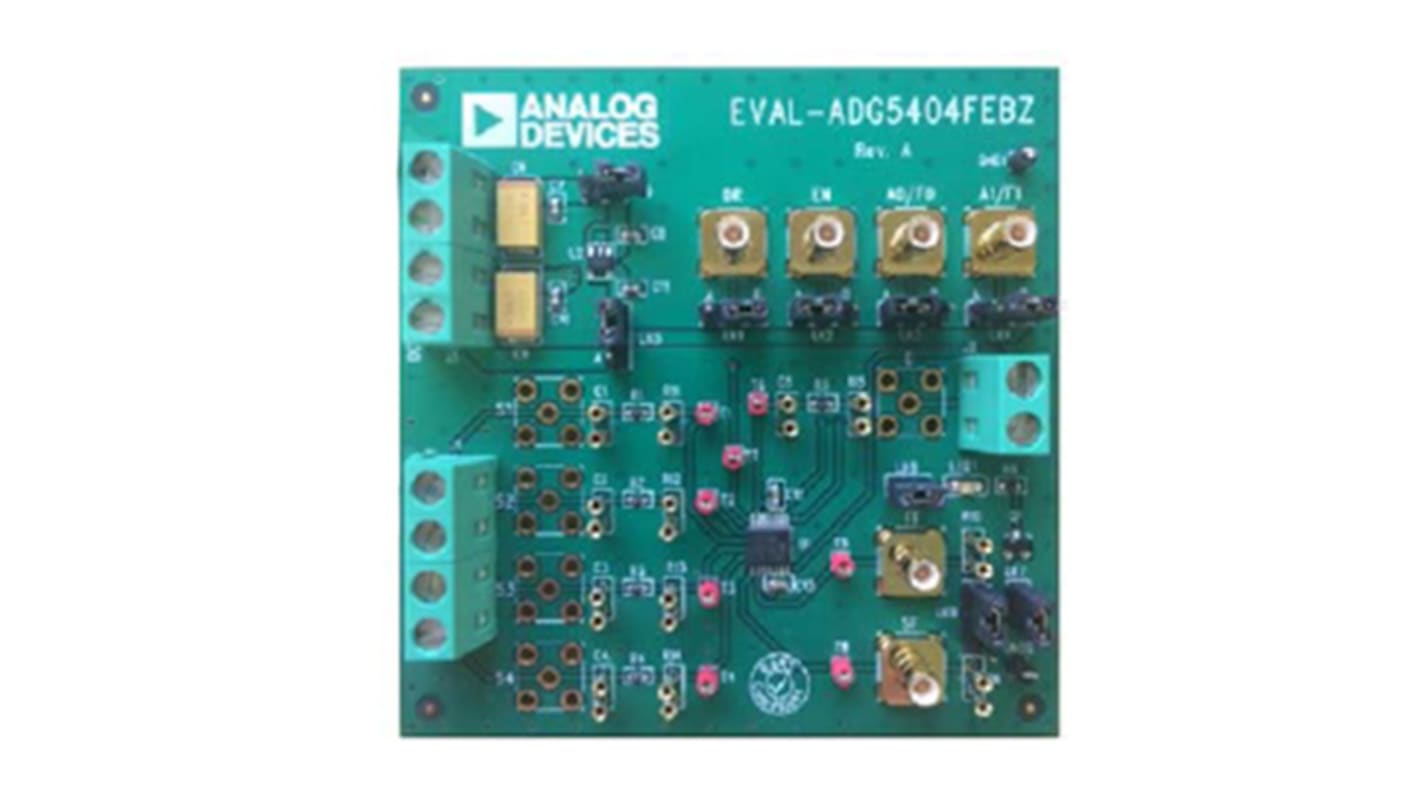

Evaluation Board for ADG5404F Multiplexer
The EVAL-ADG5404FEBZ from Analog Devices is an evaluation board for the ADG5404F Multiplexer. It is designed to evaluate the functionality of the ADG5404F device.
The ADG5404F is a 4-channel multiplexer with overvoltage fault detection and protection. The ADG5404F is mounted in the centre of the evaluation board.
3 screw terminals are used to power the device with an optional 4th terminal providing a user-defined digital voltage. Alternatively the user can utilise an LDO regulator for 5 V digital voltage control and supply for the LED. The LED is used to represent the fault status of the switch.
Additional equipment required; ±22 V DC voltage source (dual supply), 44 V DC voltage source (single supply), optional digital voltage source (3-5 V), analogue signal source, voltage measure e.g. digital multi-meter.
The ADG5404F is a 4-channel multiplexer with overvoltage fault detection and protection. The ADG5404F is mounted in the centre of the evaluation board.
3 screw terminals are used to power the device with an optional 4th terminal providing a user-defined digital voltage. Alternatively the user can utilise an LDO regulator for 5 V digital voltage control and supply for the LED. The LED is used to represent the fault status of the switch.
Additional equipment required; ±22 V DC voltage source (dual supply), 44 V DC voltage source (single supply), optional digital voltage source (3-5 V), analogue signal source, voltage measure e.g. digital multi-meter.
Features of the EVAL-ADG5404FEBZ evaluation board:
ADG5404F multiplexer with overvoltage protection
LED for visual indication of overvoltage
Parallel interface compatible with 3 V logic
LDO for optional digital supply and control
ADG5404F multiplexer with overvoltage protection
LED for visual indication of overvoltage
Parallel interface compatible with 3 V logic
LDO for optional digital supply and control
Switches and Multiplexers, Analog Devices
